Duinotech

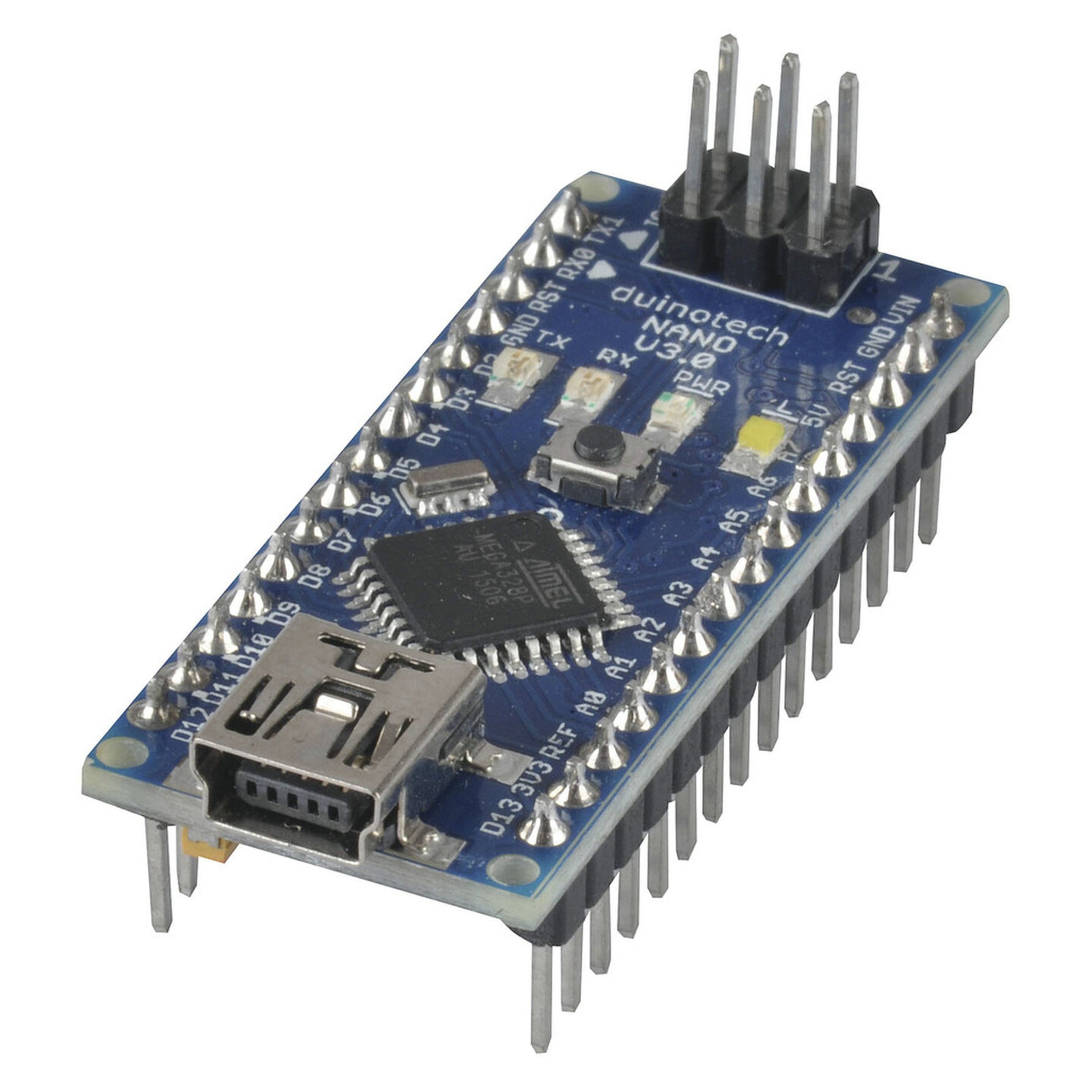

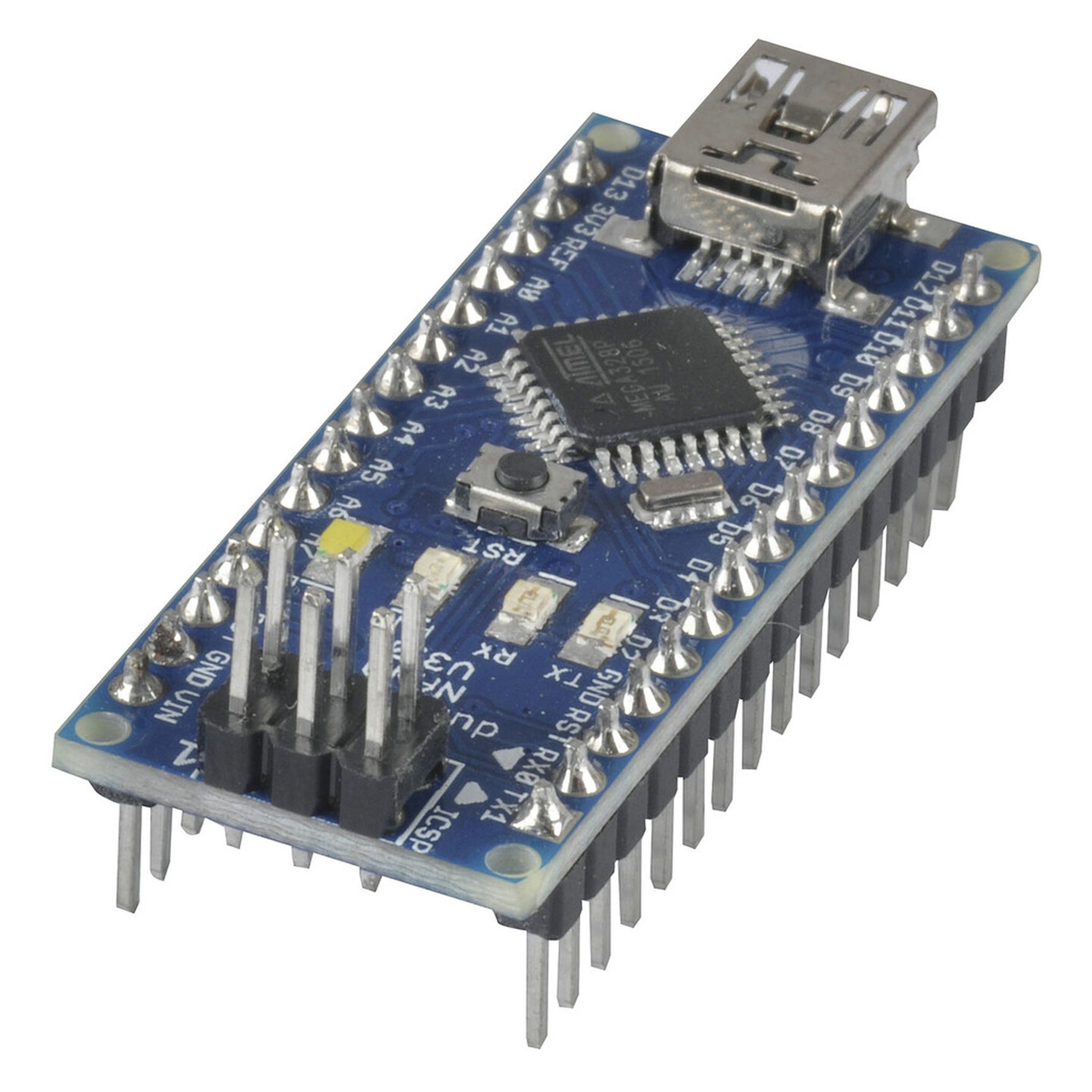

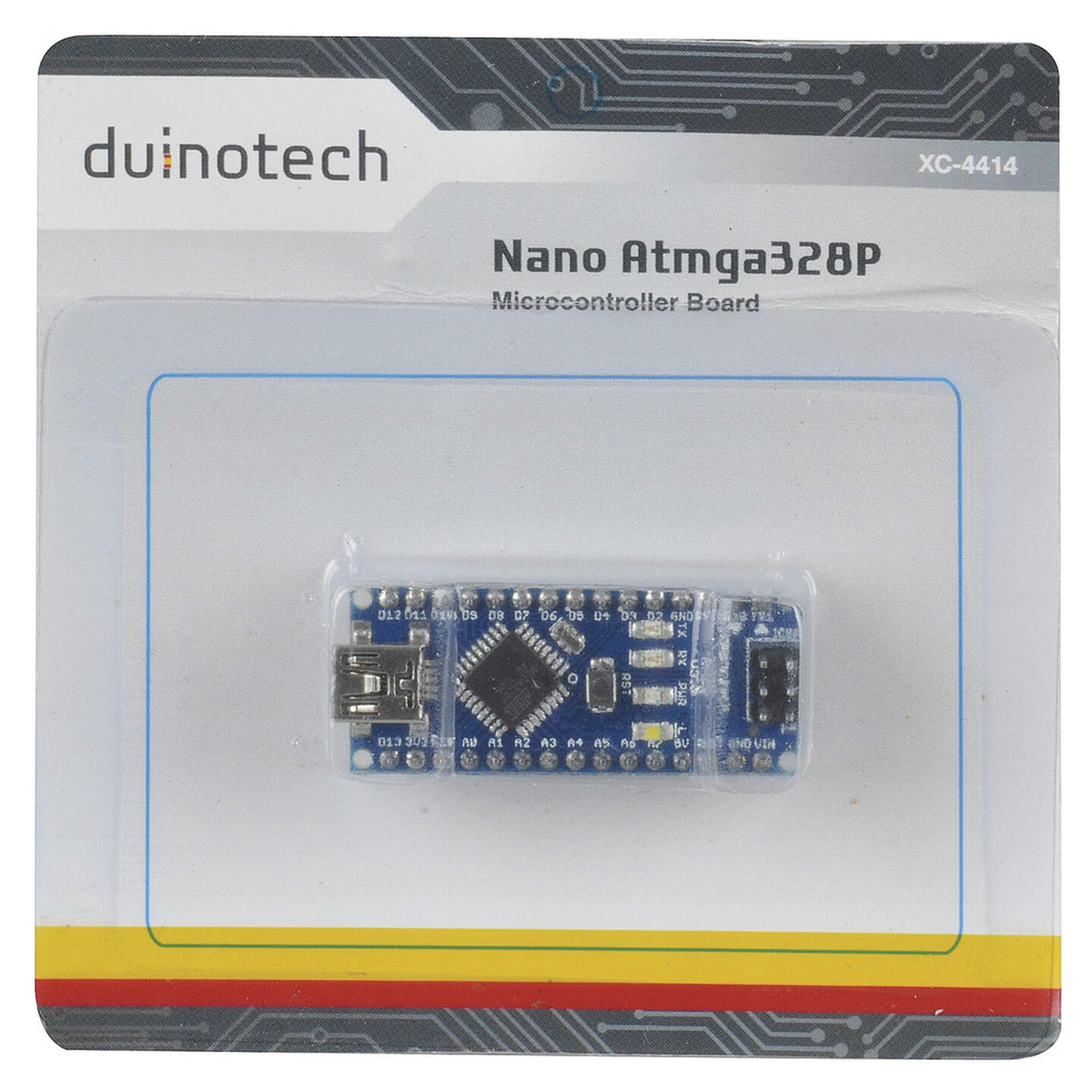

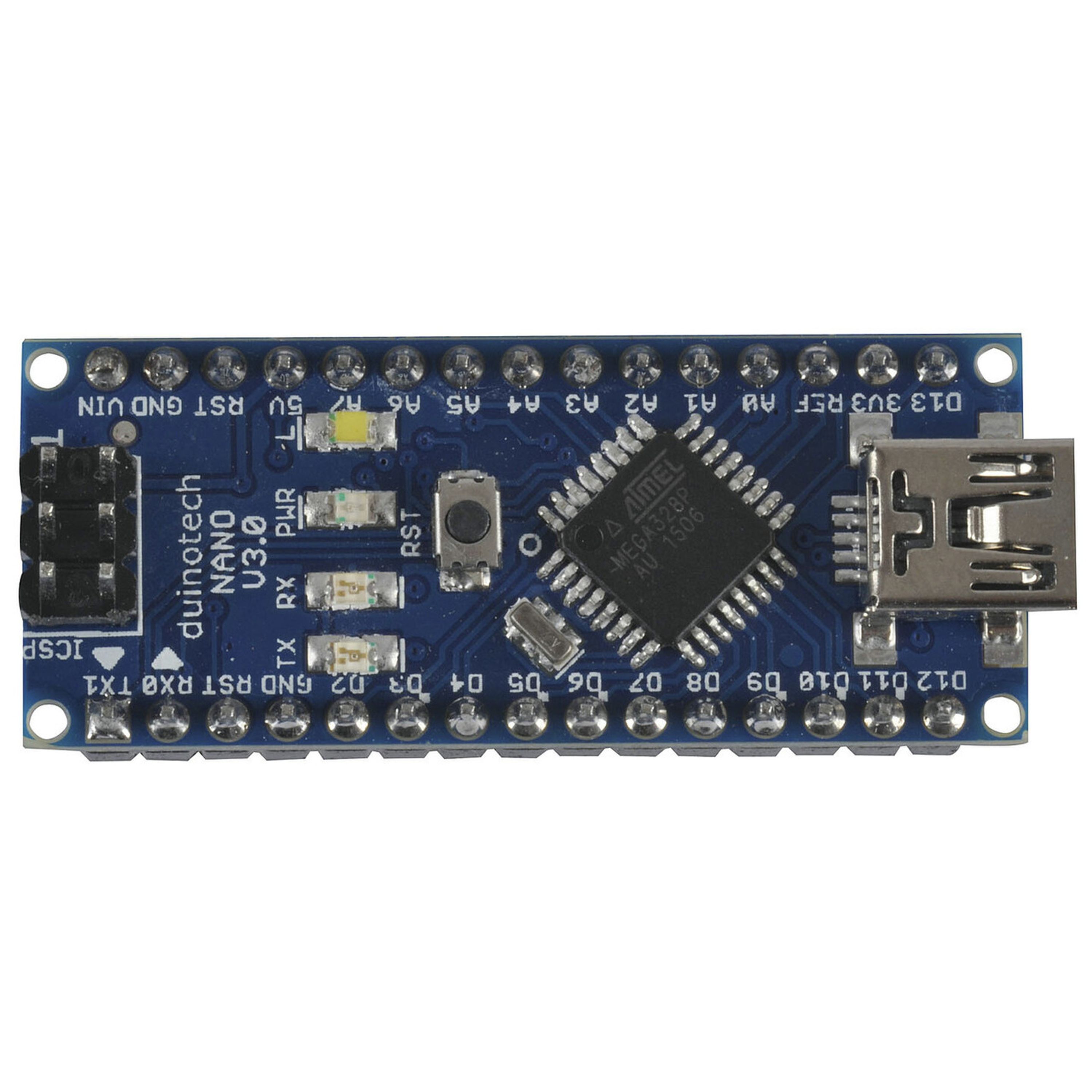

Arduino Compatible Nano Board
- Cat No:
- XC4414
Sold as:1 Each
In Stock$47.95
Description
This is the most breadboard friendly Arduino™-Compatible device you will find. Despite its small size, it packs virtually all the features of the full-sized development boards into a tiny DIP-style board that drops directly into your breadboard. It uses exactly the same ATMega328 chip as its larger cousins, so there is no need to change any of your coding. A Mini-B-USB port is easily accessible on top of the board for programming and serial communication.
Specifications
- USB Voltage Input
- 5.0V,5.0V
- Supported USB Standards
- USB 2.0
- USB Port Types
- USB Mini Type B
- RAM
- 2.0KB
- Flash Memory
- 32.0KB
- Required Supply Voltage
- 7.0V,12.0V
- Microcontroller
- ATMega328P-AU
- Board Inputs
- 20.0
- Board Outputs
- 14.0
- Length
- 46.0mm
- Width
- 18.0mm
- Height
- 18.0mm
- Packaged Dimensions
- 8.4cm(Length) x 3.6cm(Width) x 2.3cm(Height)
