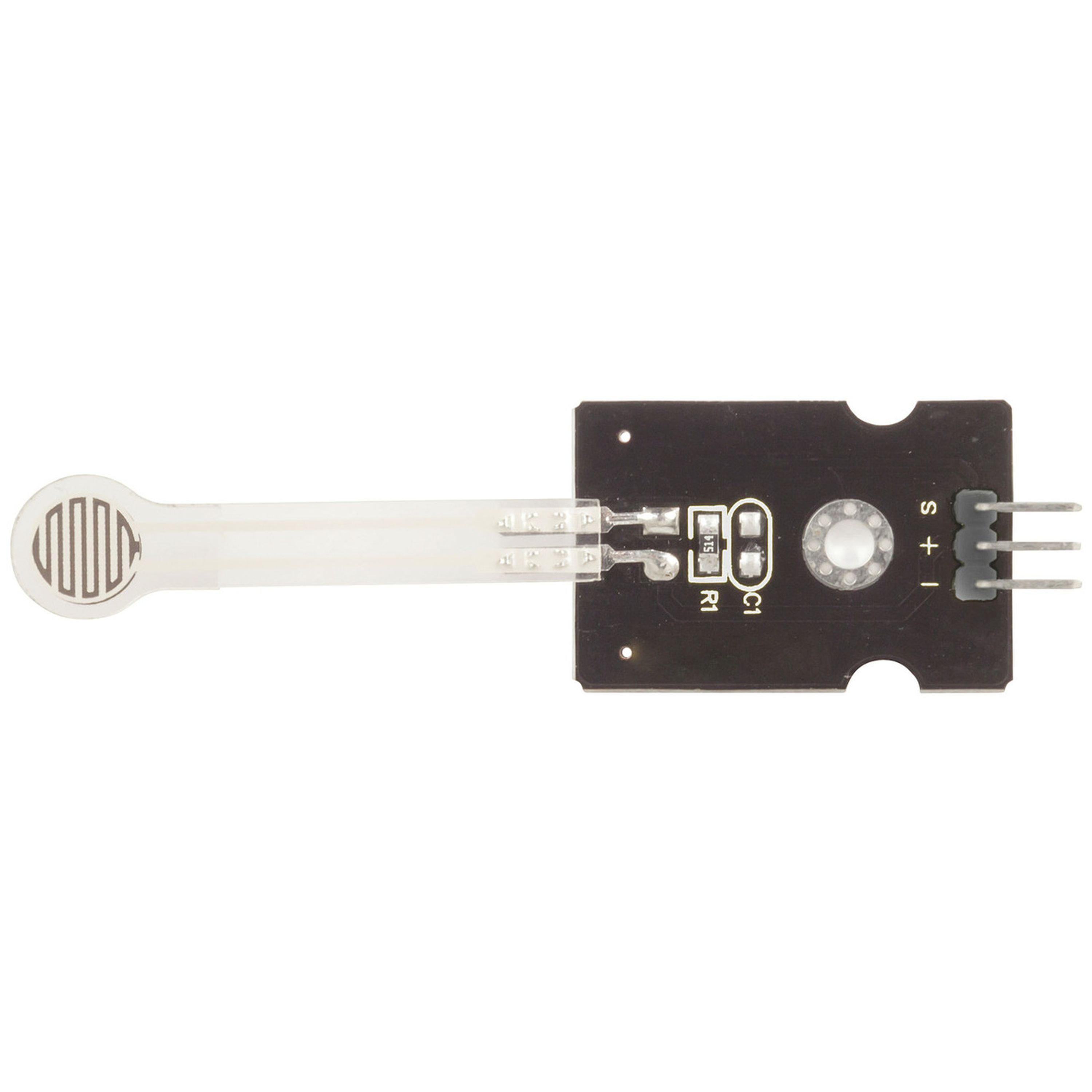

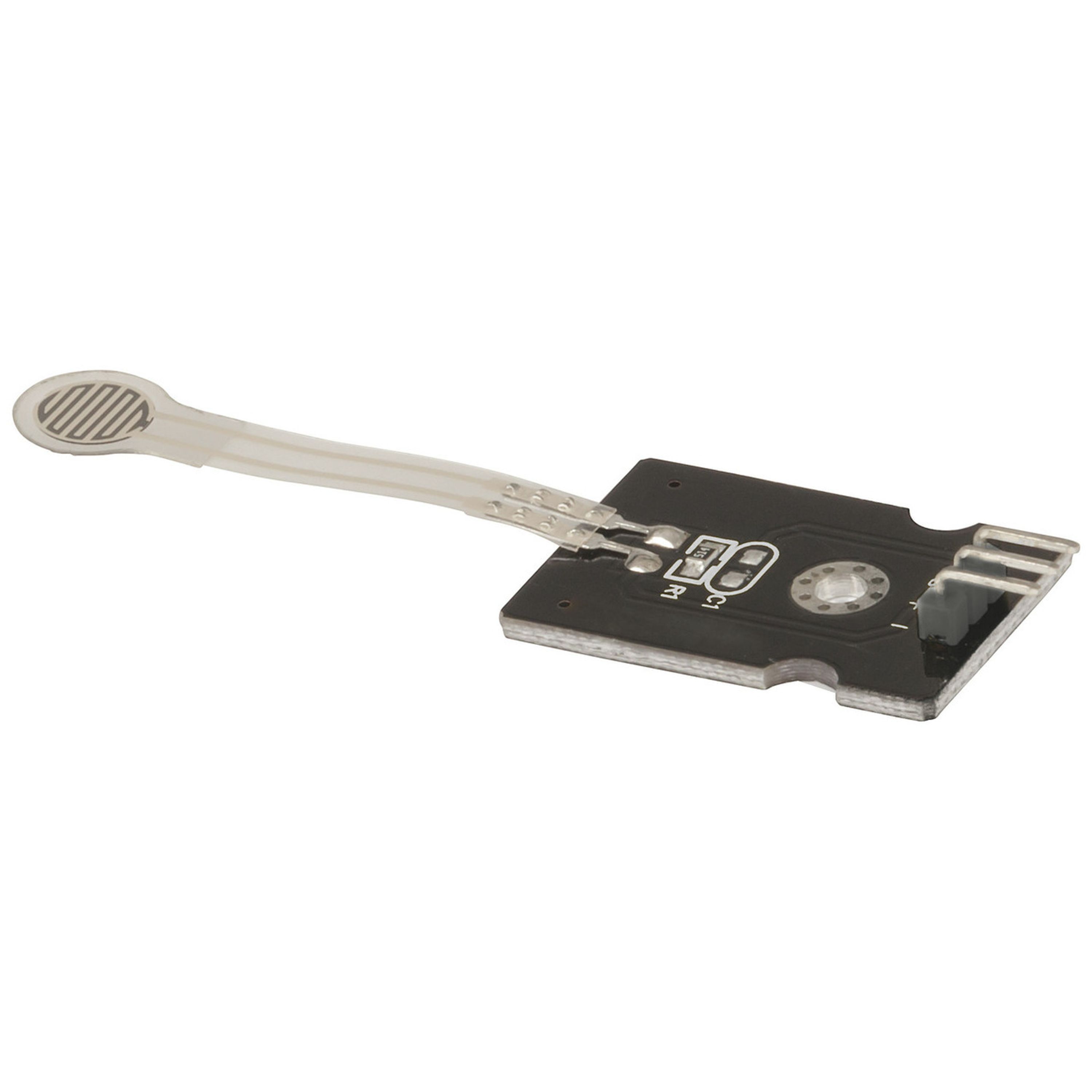

Arduino Compatible Thin-Film Pressure Sensor

This sensor module works like an adjustable resistor that changes based on pressure on the centre pad. It converts pressure signal from the sensor into an electrical signal output with a corresponding change in intensity to differing force. Easy to interface via a 3 pin header connection.

Features:

• Flexible nano sensor
• Waterproof
• Pressure sensitive

Specifications:

• Range: 0-0.5kg*
• Thickness: <0.25mm
• Response Point: <20g
• Repeatability: <5.8% (50fi Load)
• Accuracy: 2.5% (85% range interval)
• Durability: >100,000 Times
• Response Time: <1 millisecond
• Recovery Time: <15 milliseconds

*Note: Capable of measuring gross weight up to 10kg, but most accurate results are obtained up to 0.5kg.
