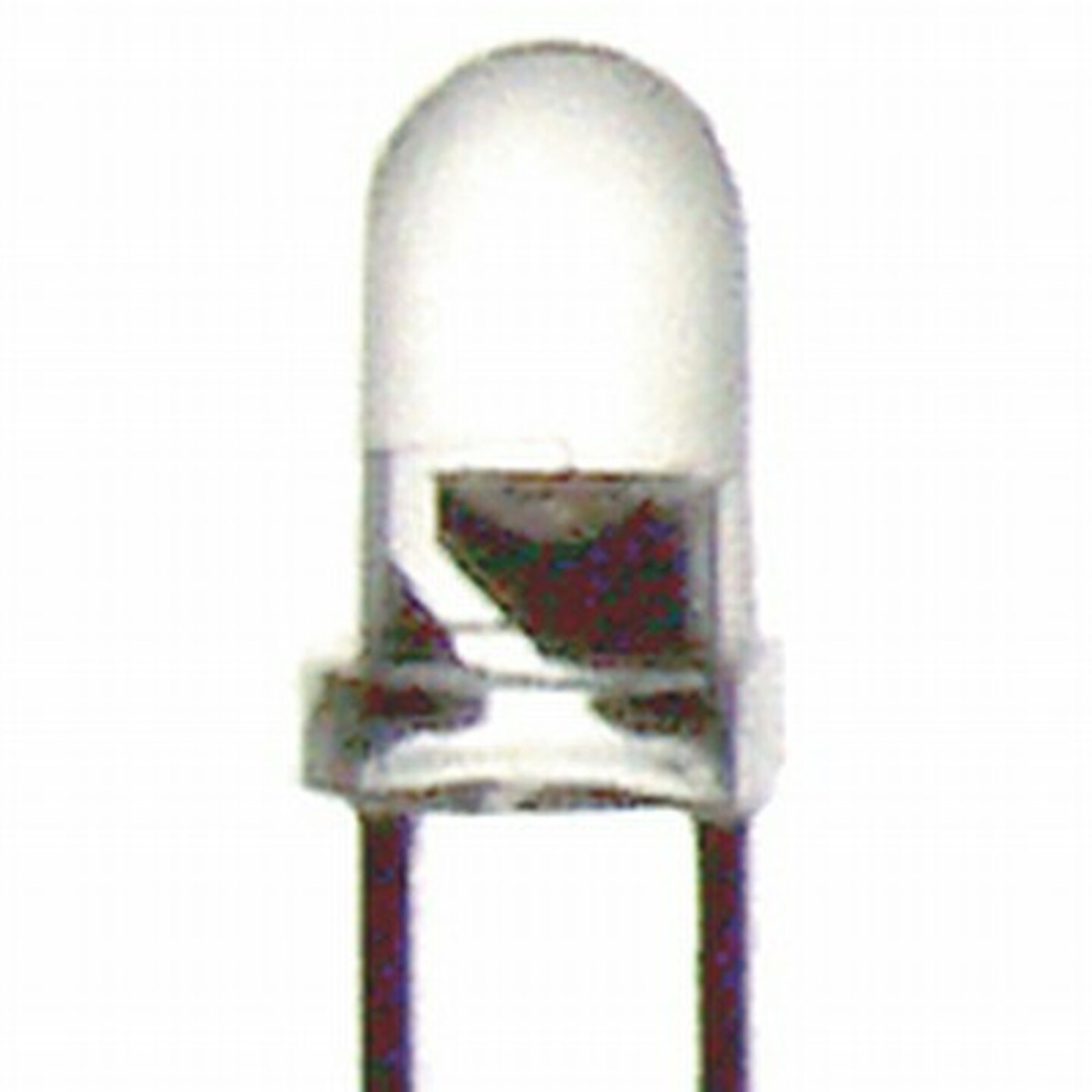

Bicolour Red/Green 3mm LED 30mcd Round Diffused
- Cat No:
- ZD0248
Sold as:1 Each
In Stock$0.85
Description
Features:
Bi ColourRedGreen
Wavelength (nm)605(R) 570(G)
VF Typical (V)2.1(R) 2.3(G)
IV Typical (mcd) 1.3(R) 1.5(G)
Specifications
- LED Type
- 3mm Standard LED
- Illumination Type
- Bi Colour
- Light Colour
- Red,Green
- Lens Type
- waterclear
- Viewing Angle
- 65.0°
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 30.0mA
- Resistor for 5VDC
- 150.0Ω
- Resistor for 9VDC
- 360.0Ω
- Resistor for 12VDC
- 510.0Ω
- Diameter
- 3.0mm
- Packaged Dimensions
- 3.5cm(Length) x 0.4cm(Width) x 0.4cm(Height)
