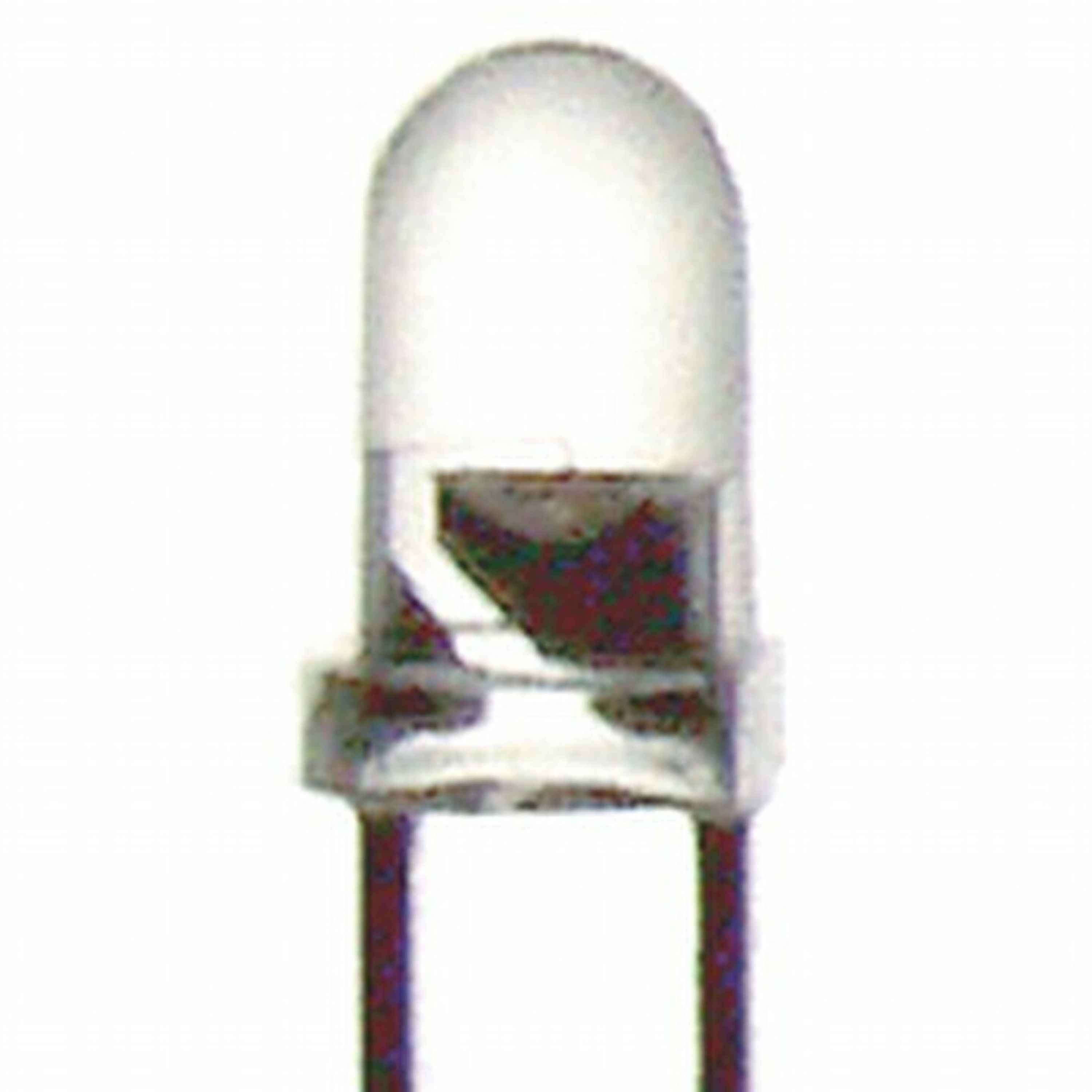

Bicolour Red/Green 5mm LED 45mcd Round Diffused
- Cat No:
- ZD0250
Sold as:1 Each
In Stock$0.85
Description
Features:
Bi ColourRedGreen
Wavelength (nm)625(R) 567(G)
VF Typical (V)2.1(R) 2.2(G)
IV Typical (mcd)7.6(R) 10(G)
Bi ColourRedGreen
Wavelength (nm)625(R) 567(G)
VF Typical (V)2.1(R) 2.2(G)
IV Typical (mcd)7.6(R) 10(G)
Specifications
- LED Type
- 5mm Standard LED
- Illumination Type
- Bi Colour
- Light Colour
- Red
- Lens Type
- waterclear
- Viewing Angle
- 90.0°
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 30.0mA
- Resistor for 5VDC
- 150.0Ω
- Resistor for 9VDC
- 360.0Ω
- Resistor for 12VDC
- 510.0Ω
- Diameter
- 5.0mm
- Packaged Dimensions
- 3.5cm(Length) x 0.6cm(Width) x 0.5cm(Height)
