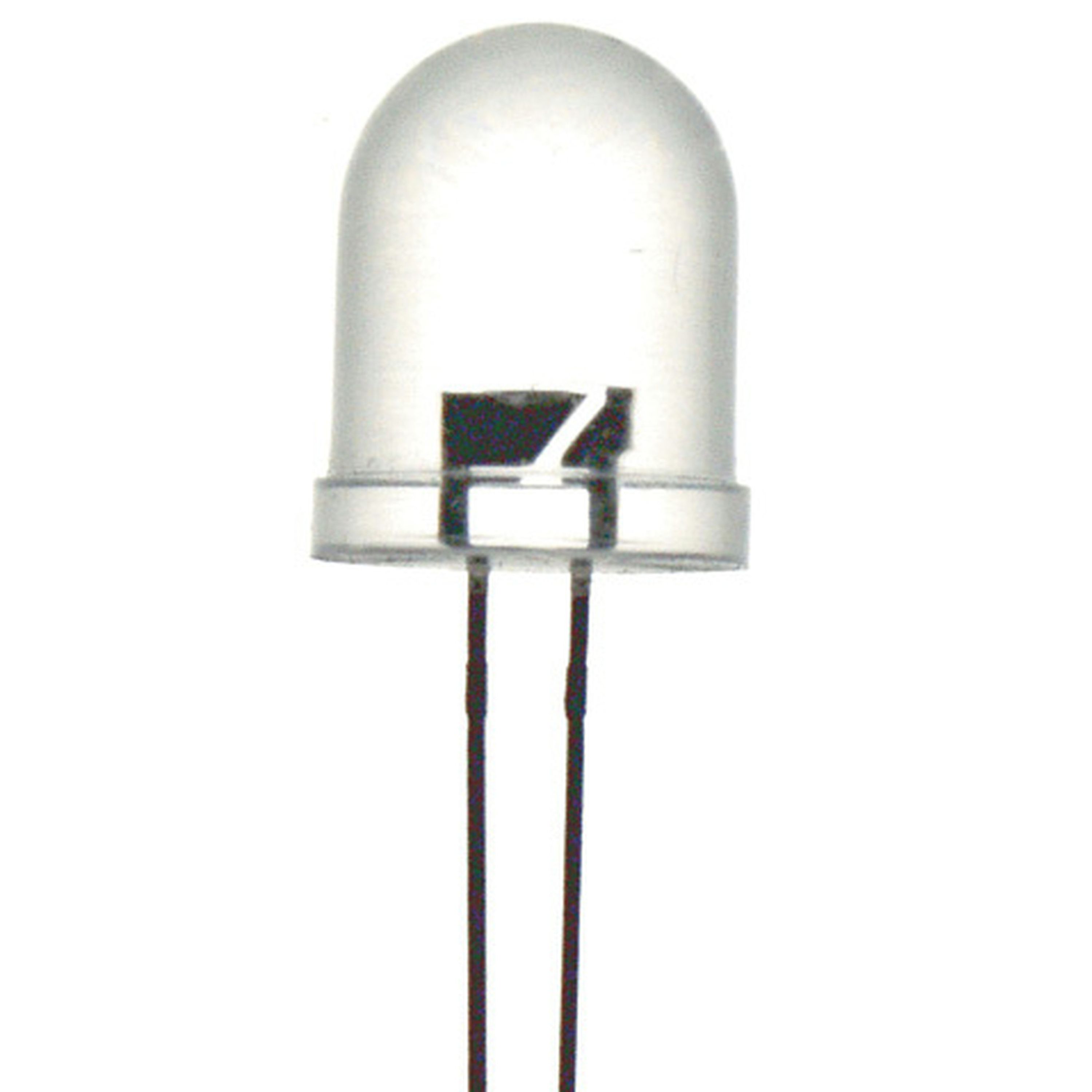

Blue 10mm LED 8500mcd Round Clear
- Cat No:
- ZD0216
In Stock
$2.50
Description
Blue LED 10mm Clear 8500MCD
Specifications
- LED Type
- 10mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- Blue
- Light Wavelength
- 470nm, 470nm
- Lens Type
- waterclear
- Viewing Angle
- 20°
- Intensity
- 8500mcd
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 3.2V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20mA
- Resistor for 5VDC
- 100Ω
- Resistor for 9VDC
- 300Ω
- Resistor for 12VDC
- 430Ω
- active mount type
- Through Hole
- active connector type
- Solder Legs
- component package
- radial
- active number of legs
- 2 count
- Diameter
- 10mm
- Packaged Dimensions
- 4 x 1 x 1 cm
