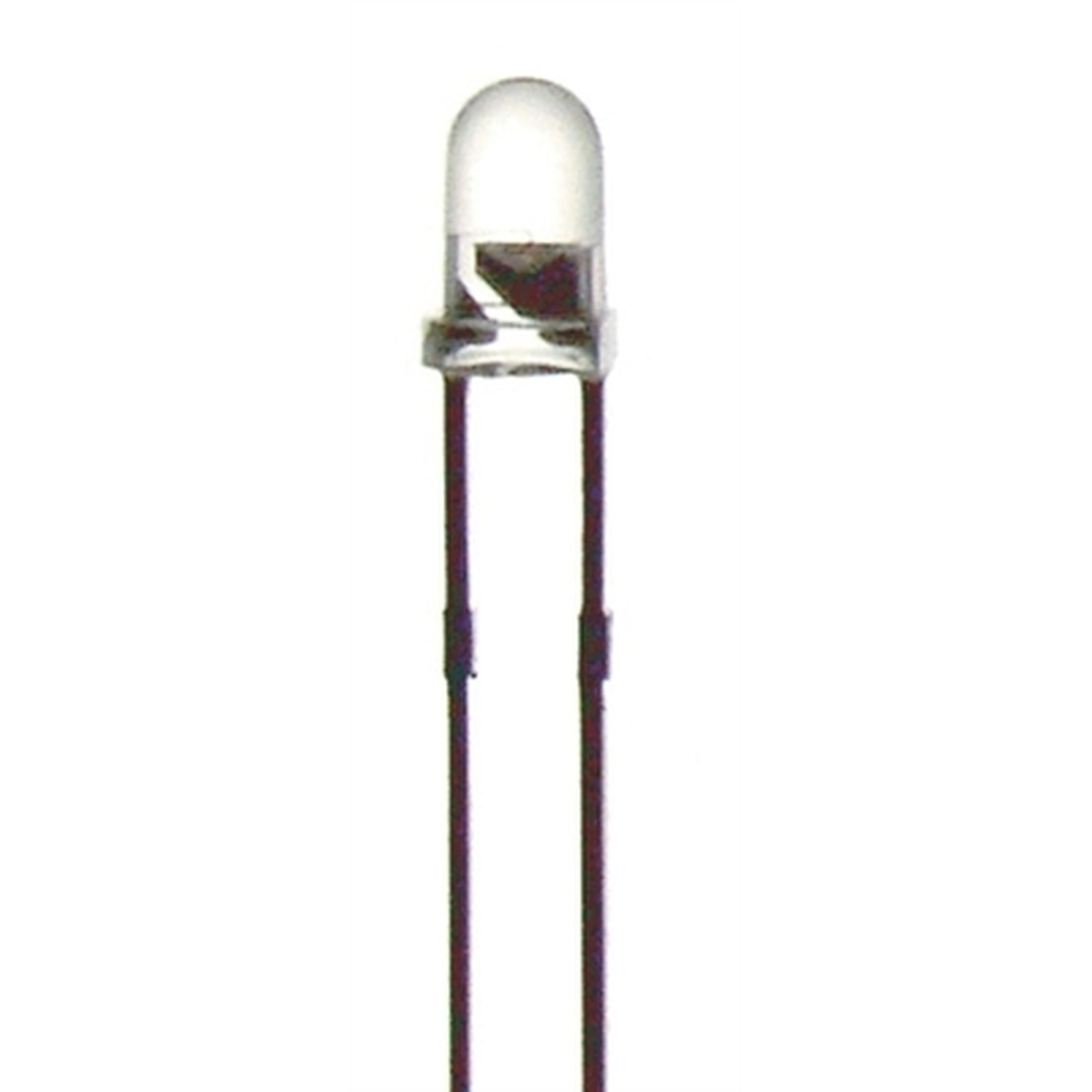

Blue 3mm LED 1500mcd Round Clear
- Cat No:
- ZD0130
Sold as:1 Each
In Stock$1.15
Description
Blue 3mm LED 1500mCd Round Clear
Specifications
- LED Type
- 3mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- Blue
- Lens Type
- waterclear
- Light Wavelength
- 465.0nm
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 3.3V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 20.0mA
- Intensity
- 1500.0mcd
- Viewing Angle
- 15.0°
- Resistor for 5VDC
- 82.0Ω
- Resistor for 9VDC
- 300.0Ω
- Resistor for 12VDC
- 430.0Ω
- Diameter
- 3.0mm
- Packaged Dimensions
- 3.5cm(Length) x 0.4cm(Width) x 0.4cm(Height)
