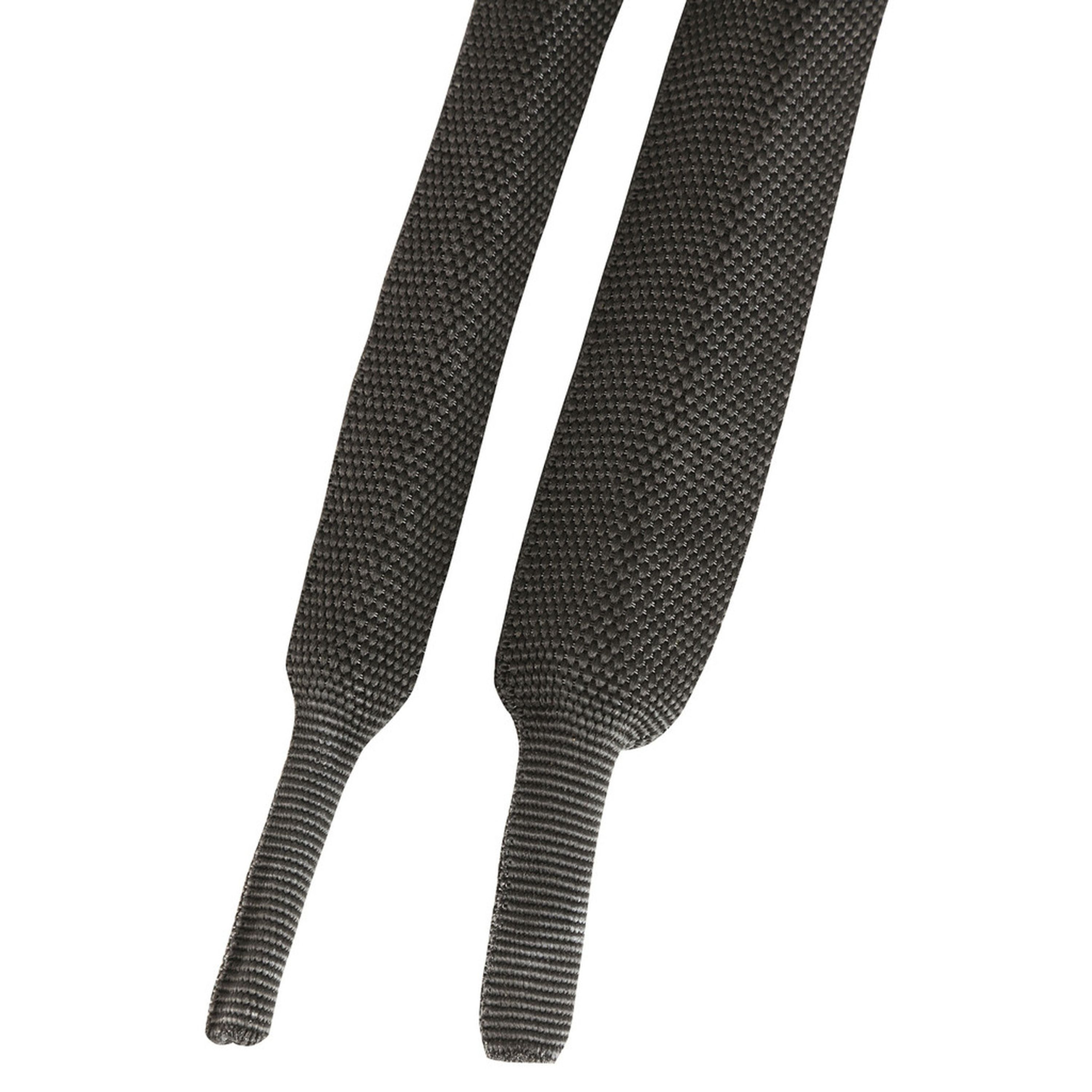

Braided Heatshrink Sleeve 30mm x 1.2m
- Cat No:
- WH5626
Sold as:1 Each
Out of Stock$11.25
Description
Used to provide added protection to cables against flames and abrasion. Consists of polyester multifilament and special modified polyolefin filament, which will shrink when exposed to a heat source (Heat gun recommended). The unique woven construction makes it extremely flexible and easy to install on the hoses with irregular shapes.
Features:
• Flammability: self-extinguishing
• Approved : RoHS , Halogen Free
Also available:
10mm - WH5620
20mm - WH5622
25mm - WH5624
Specifications
- Shrink Ratio
- 2:1
- Heatshrink Tube Diameter
- 30.0mm
- Heatshrink Length
- 1.2m
- Minimum Shrink Temperature
- 80.0°C
- Full Shrink Temperature
- 120.0°C
- Operating Temperature
- -40.0°C-125.0°C
- Tube Diameter
- 30.0mm
- Pack Quantity
- 1.0
- Length
- 1.2m
- Width
- 6.0cm
- Height
- 0.1cm
- Shrink Ratio
- 0.0840277777777778
- Colour
- Black
- Operating Temperature
- 125°C
- Length
- 1.2m
- Diameter
- 30.0mm
- Packaged Dimensions
- 120.0cm(Length) x 5.5cm(Width) x 0.3cm(Height)
