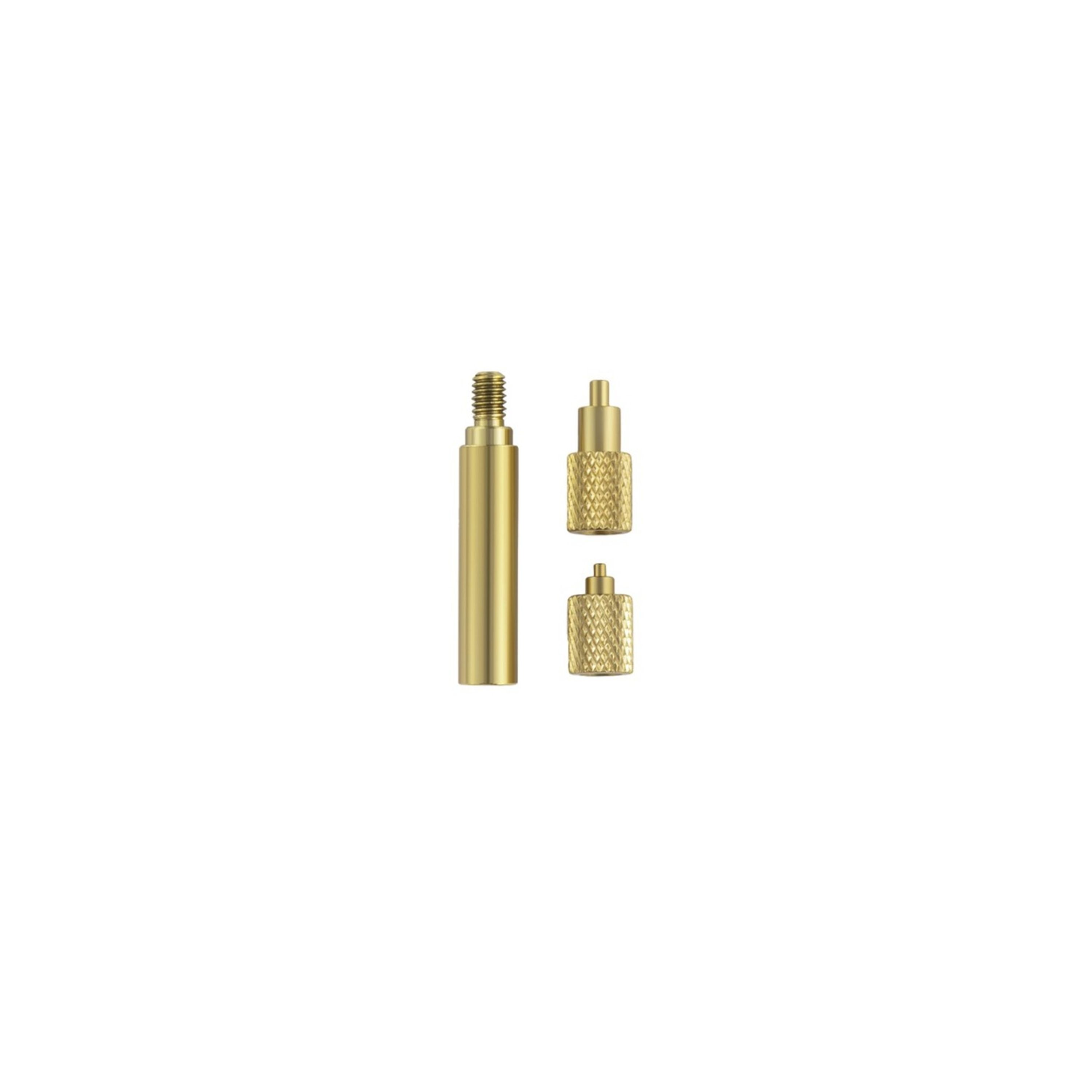

Bushing Heat Press Insert Tip suits M2 and M3 sizes

These M2 & M3 heat press insert tips are a fantastic option for 3D printing with thermoplastics.

When the tip is heated and placed in the threaded brass inserts, the surrounding plastic softens and forms around it, creating a strong, secure bond.

This keeps the insert firmly in place and strengthens the surrounding material, making the threaded connection more durable and resistant to pull-out compared to other insert types.

Shaft outside diameter: 6.5mm
Shaft inside hole diameter: 4.75mm
Shaft inside hole depth: 25mm
Shaft length to screw base: 28mm

M2 tip length: 12mm
M3 tip length: 16.5mm

Assembled length w/M2 tip: 40mm
Assembled length w/M3 tip: 44.5mm
