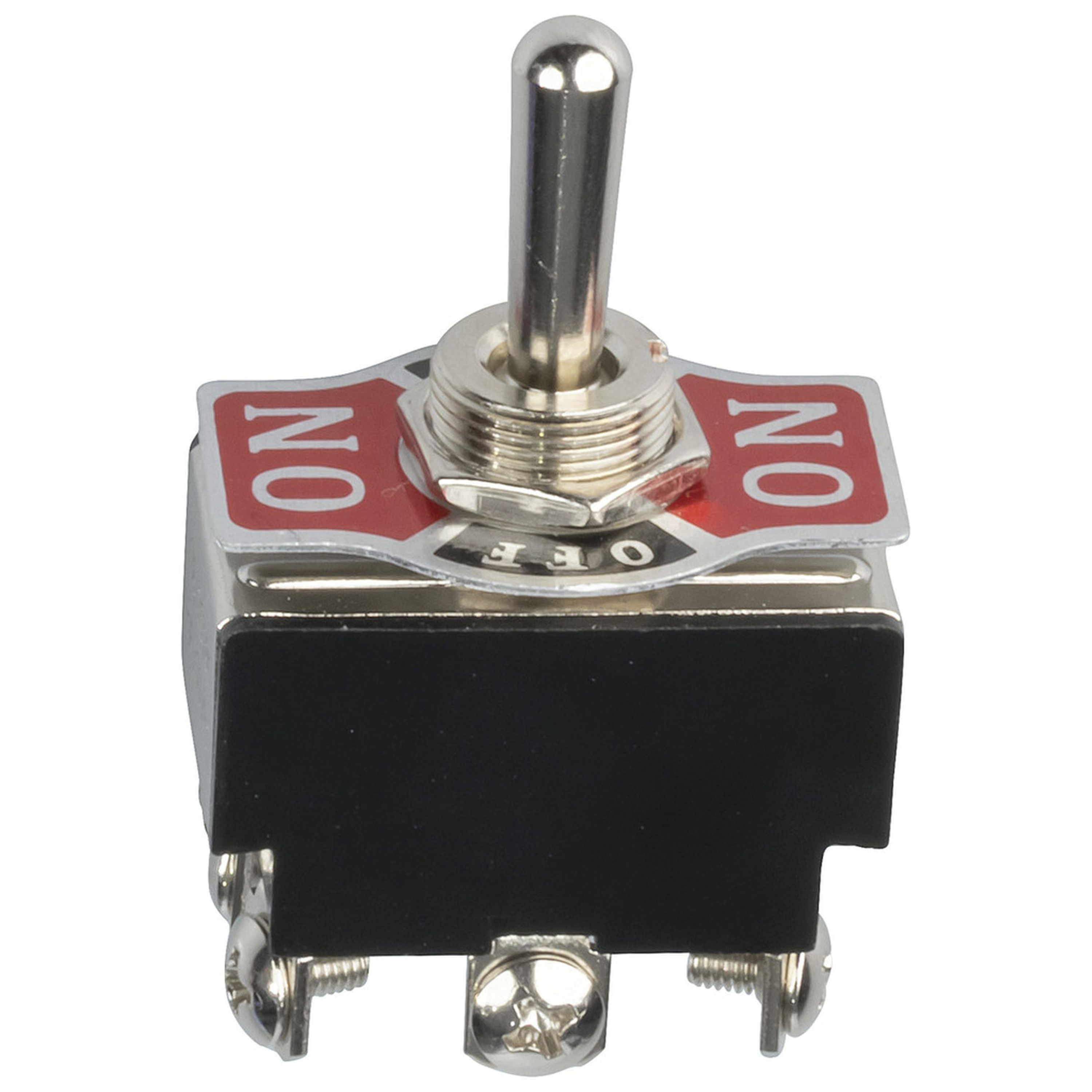

DPDT 6A 240VAC Heavy Duty Centre Off Standard Toggle Switch
- Cat No:
- ST0576
In Stock
$6.50
Description
Huge 6A 250VAC rating (10A 125VAC), chrome toggle with on/off indicator plate.
- DPDT centre off.
- Screw wire terminals. Same physical size as ST-0575 .
Specifications
- Switch Type
- Toggle
- Poles / Contacts
- 2.0 pole
- Throws / Positions
- 1.0pos
- Centre Off
- true
- Switch Connection
- Screw Terminal
- Cycle Life
- 40000.0 cycles
- Contact Resistance
- 10.0Ω
- Insulation Resistance
- 1000.0Ω
- Dielectric Strength
- 1000.0V
- Actuator Length
- 18.5mm
- Actuator Width
- 19.0mm
- DC Voltage
- 125.0V
- DC current rating
- 10.0A
- Packaged Dimensions
- 5.2cm(Length) x 3.4cm(Width) x 2.3cm(Height)
