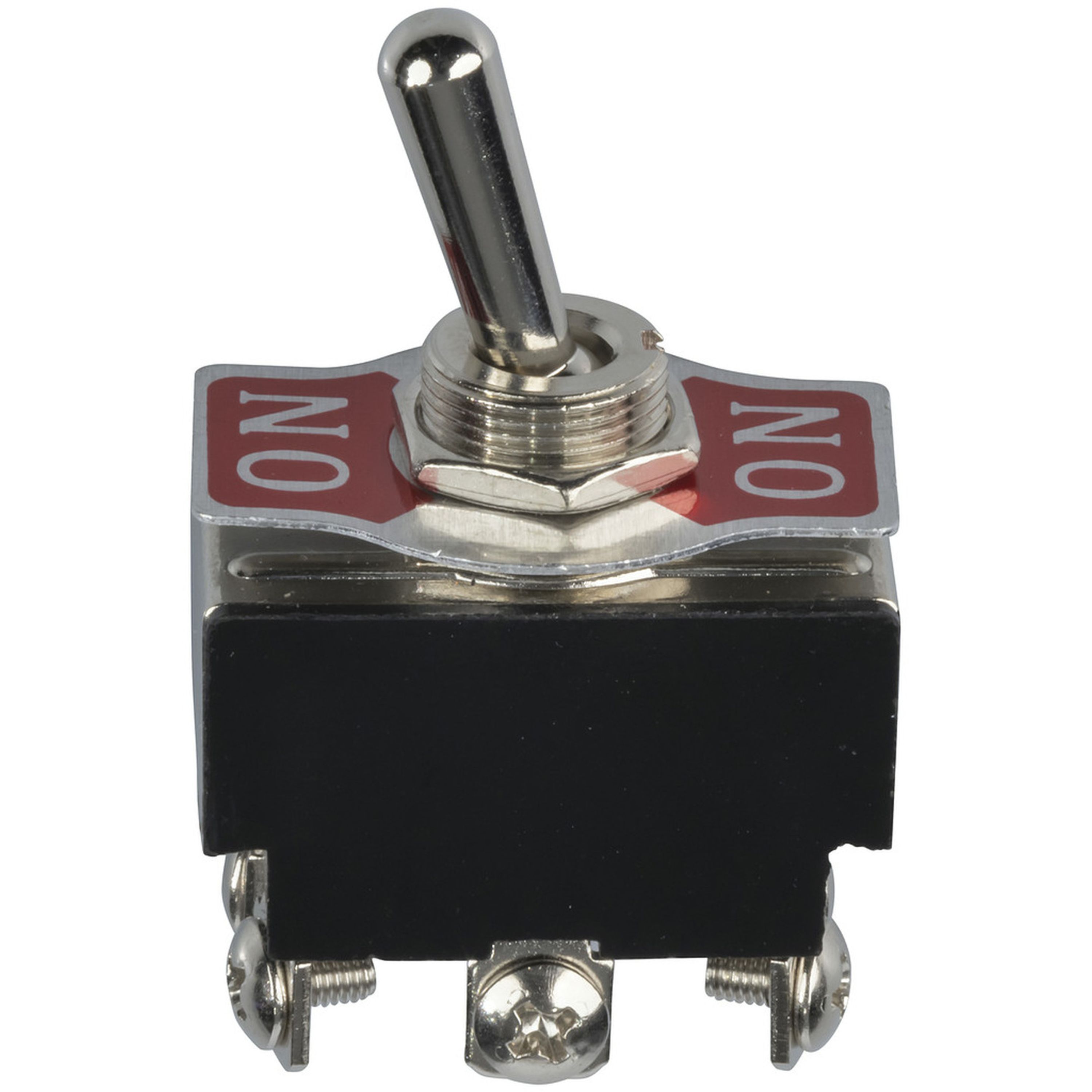

DPDT 6A 250VAC Extra Heavy Duty Toggle Switch
- Cat No:
- ST0575
In Stock
$6.50
Description
Rated at 6A 250VAC (10A at 125VAC), this switch will handle mains power switching. No soldering required.
Specifications
- Switch Type
- Toggle
- Poles / Contacts
- 2.0 pole
- Throws / Positions
- 1.0pos
- Switch Connection
- Screw Terminal
- Cycle Life
- 40000.0 cycles
- Contact Resistance
- 10.0mΩ
- Insulation Resistance
- 1000.0mΩ
- Dielectric Strength
- 1000.0V
- Actuator Length
- 18.5mm
- Actuator Width
- 19.0mm
- AC Voltage rating
- 250.0V
- AC current rating
- 10.0A
- Packaged Dimensions
- 3.2cm(Length) x 2.0cm(Width) x 5.5cm(Height)
