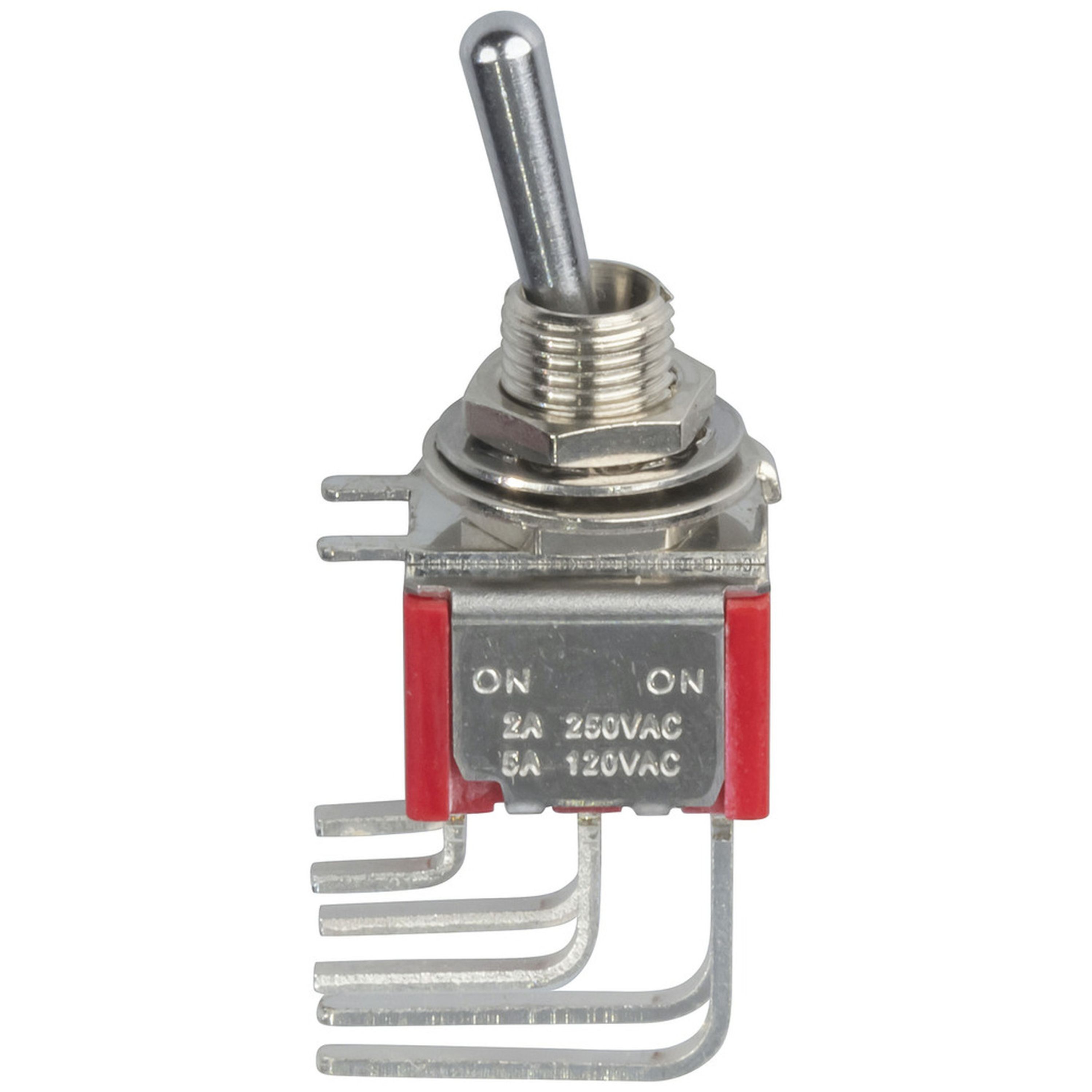

DPDT Miniature Toggle Switch - Vertical R/A
- Cat No:
- ST0365
In Stock
$4.10
Description
FEATURES:
VERTICAL RIGHT ANGLE PCB MOUNT
Brackets indicate switch position Threaded Bush (on - none - on)OPERATING TEMPERATURE:-30 degrees - +85 degrees Celsius
CONTACT RATING (with resistive load) Subminiature: 1 Amp @ 250VAC Miniature: 2 Amps @ 250VAC
CONTACT RATING (with resistive load) Subminiature: 3 Amps @ 28VDC Miniature: 5 Amps @ 28VDC
SWITCH MATERIALS CASE:Diallyl Phthalate (DAP) (UL94V-0)
TOGGLE HANDLE:Brass, chrome plated
BUSHING:Brass, nickel-plated
HOUSING:Stainless Steel
TERMINALS:Switch support components: Brass, electro-tin plated (for solderability)
CONTACTS:Fixed and moving, Silver-plated over copper alloy (standard);Fixed and moving, gold plated over nickel-plated alloy.
Specifications
- Switch Type
- Toggle
- Poles / Contacts
- 2.0 pole
- Throws / Positions
- 1.0 pos
- Switch Function
- Momentary
- Contact Resistance
- 20Ω
- Insulation Resistance
- 1000Ω
- Dielectric Strength
- 1000V
- Mechanism Material
- Metal/Plastic
- DC Voltage Rating
- 28.0V
- DC Current Rating
- 3.0A
- Cycle Life
- 30000.0
- Actuator Length
- 6.86mm
- Actuator Width
- 4.83mm
- Switch Type
- Toggle
- Poles / Contacts
- 2.0 pole
- Throws / Positions
- 1.0pos
- Switch Connection
- PCB Pins
- Switch at Right Angles to Mount
- true
- Cycle Life
- 30000.0 cycles
- Contact Resistance
- 20.0Ω
- Insulation Resistance
- 1000.0Ω
- Dielectric Strength
- 1000.0V
- Actuator Length
- 6.86mm
- Actuator Width
- 4.83mm
- AC Voltage rating
- 250.0V
- AC current rating
- 1.0A
- DC Voltage
- 28.0V
- DC current rating
- 3.0A
- Packaged Dimensions
- 1.5cm(Length) x 1.2cm(Width) x 4.0cm(Height)
