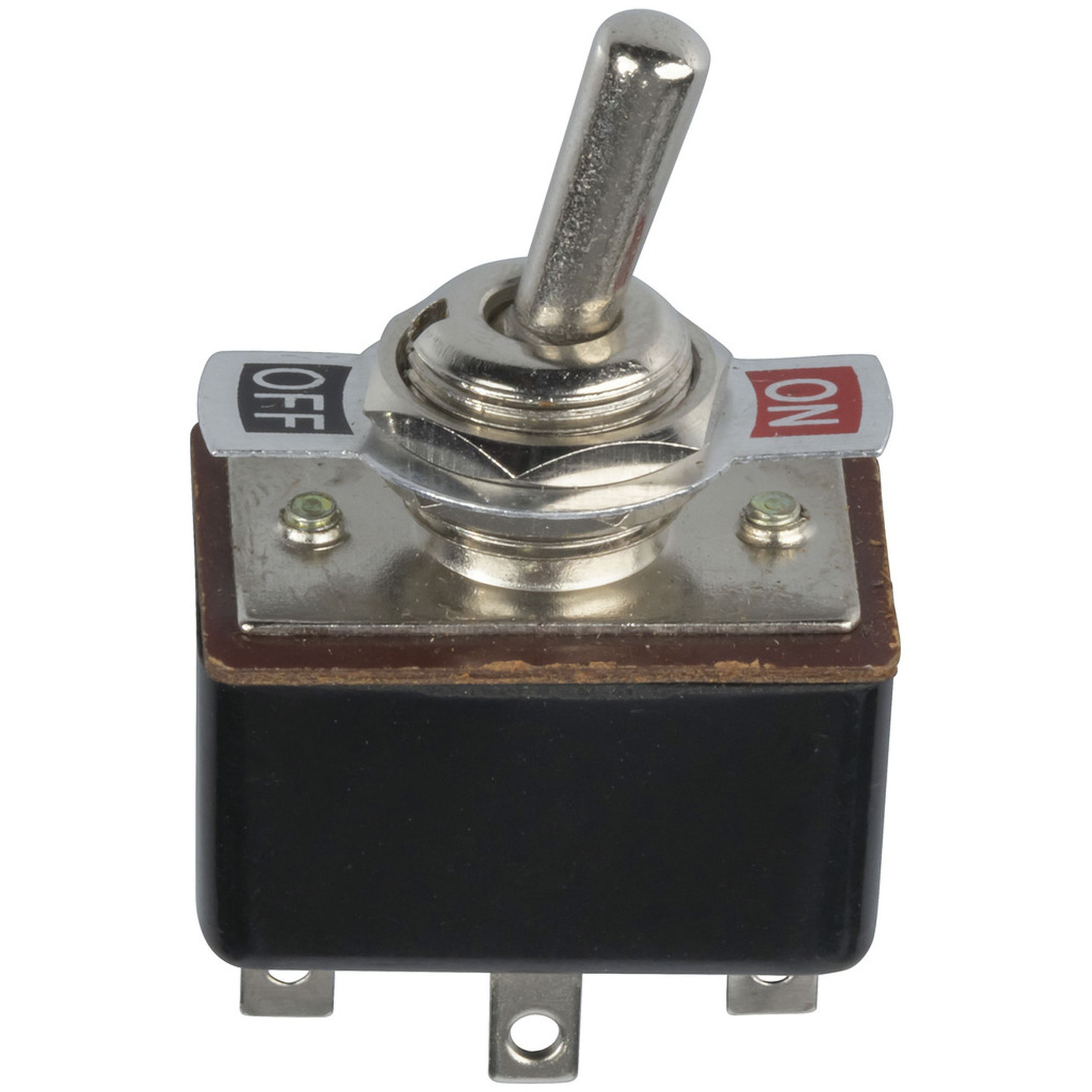

DPDT Standard Toggle Switch
- Cat No:
- ST0572
In Stock
$3.50
Description
DPDT panel mount toggle switch.
Specifications
- Switch Type
- Toggle
- Poles / Contacts
- 2.0 pole
- Throws / Positions
- 1.0pos
- Cycle Life
- 40000.0 cycles
- Insulation Resistance
- 1000.0Ω
- Dielectric Strength
- 1000.0V
- Actuator Length
- 19.5mm
- Actuator Height
- 12.0mm
- Contact Resistance
- 10.0mΩ
- DC Voltage
- 250.0V
- DC current rating
- 3.0A
- Packaged Dimensions
- 2.8cm(Length) x 2.0cm(Width) x 4.6cm(Height)
