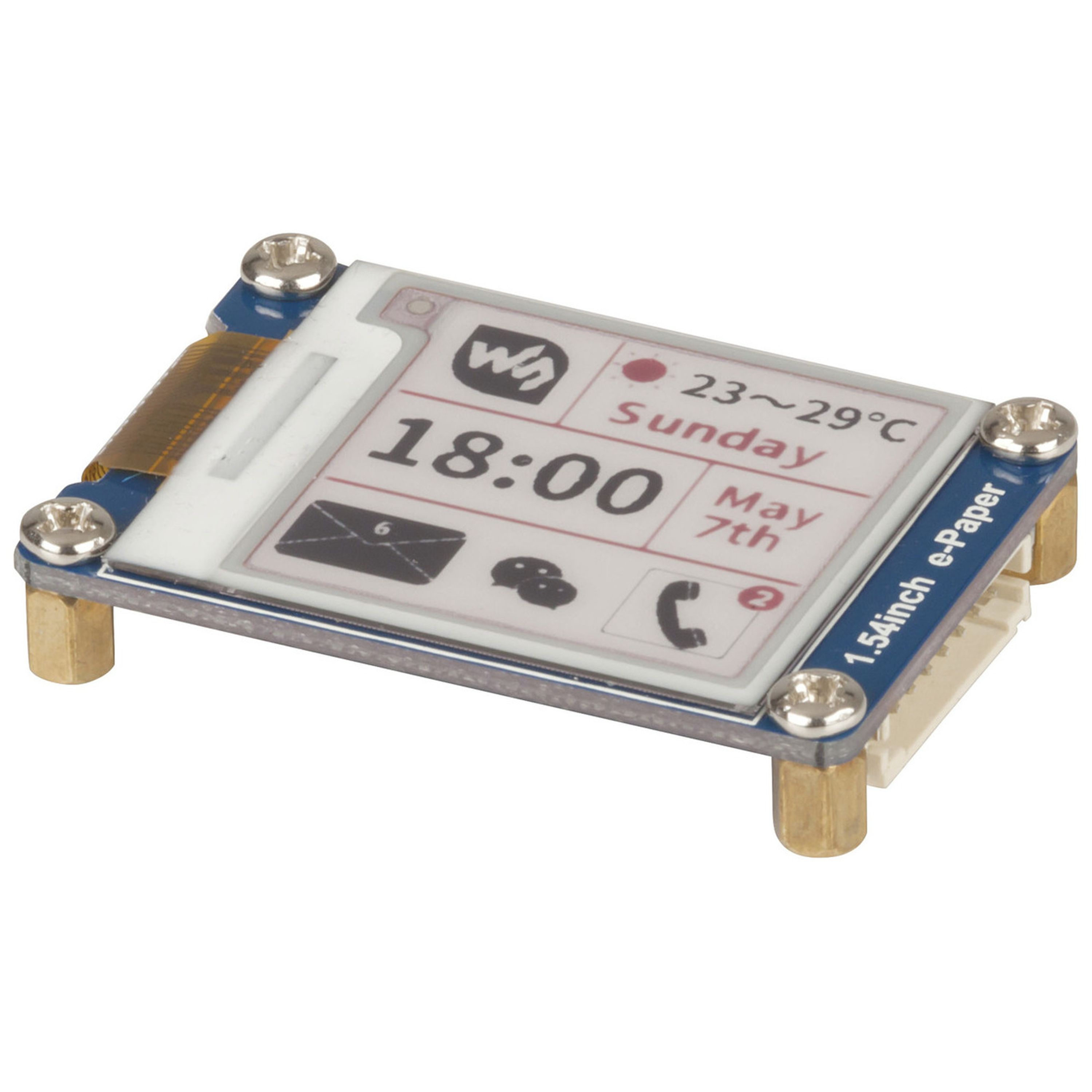

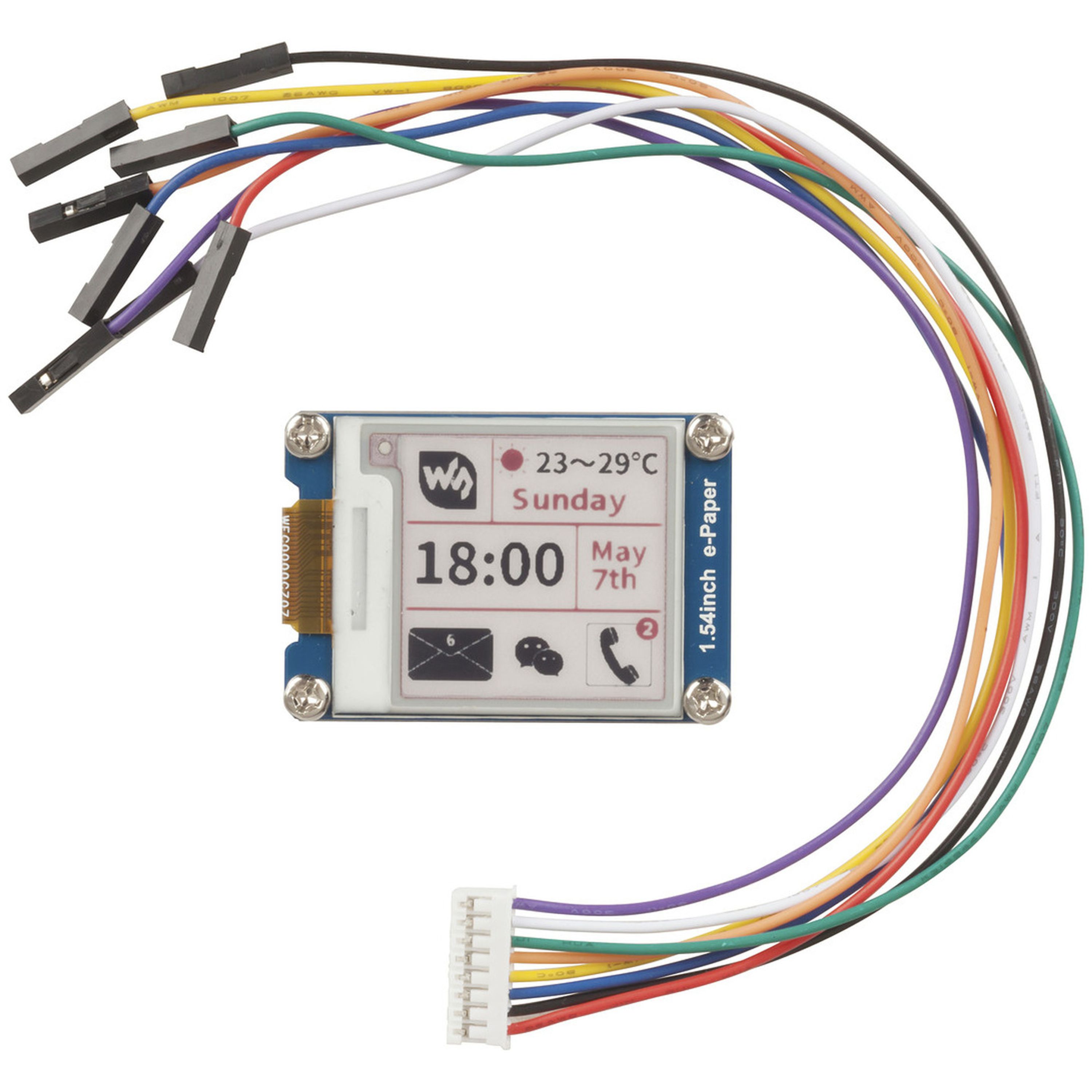

Duinotech Arduino Compatible 1.54 Inch Monochrome E-Ink Display
- Cat No:
- XC3747
Sold as:1 Each
In Stock$51.95
Description
This screen uses very little power to refresh, and retains the last displayed content for a very long time when power is removed. The screen also reflects ambient light, which avoids the need for a backlight, and makes it easy to read under bright sunlight. It has a wide viewing angle over 170°.
Features:
Features:
- Black, white and red display
- 2 shades of grey
- SPI interface
- 8 second full refresh time
- Low refresh power (26.4mW)
- Extra low standby power (<0.017mW)
Specifications
- Screen Backlit
- Not Backlit
- Aspect Ratio
- 1:1
- Required Supply Voltage
- 3.3V,3.3V
- Dimension details
- Overall Dimensions
- Length
- 48.0mm
- Width
- 33.0mm
- Height
- 9.0mm
- Weight
- 14.0g
- Dimensions details
- Dot Pitch
- Width
- 0.138mm
- Height
- 0.138mm
- Dimension details
- Display Size
- Length
- 27.6mm
- Width
- 27.6mm
- Packaged Dimensions
- 9.3cm(Length) x 4.3cm(Width) x 2.2cm(Height)
