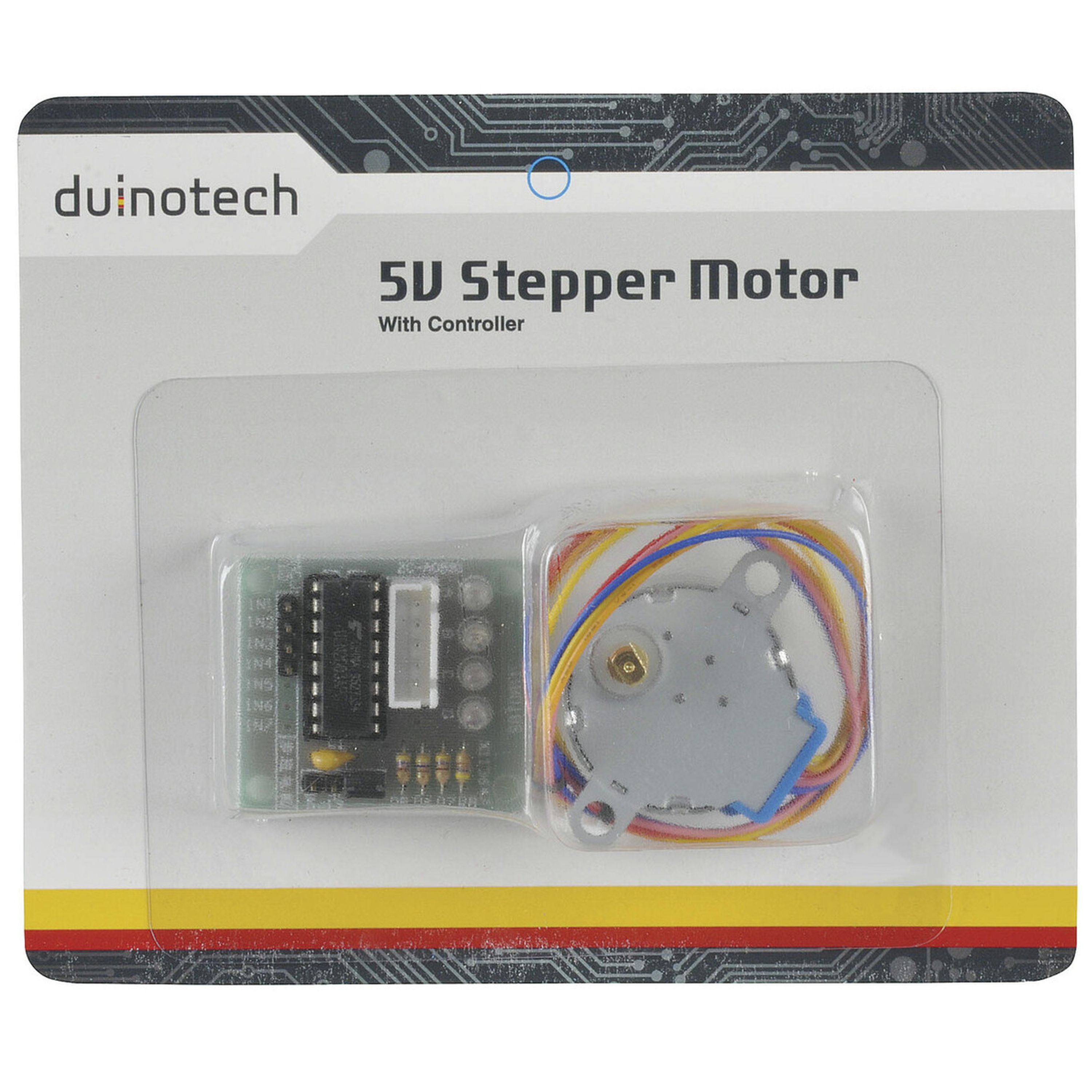

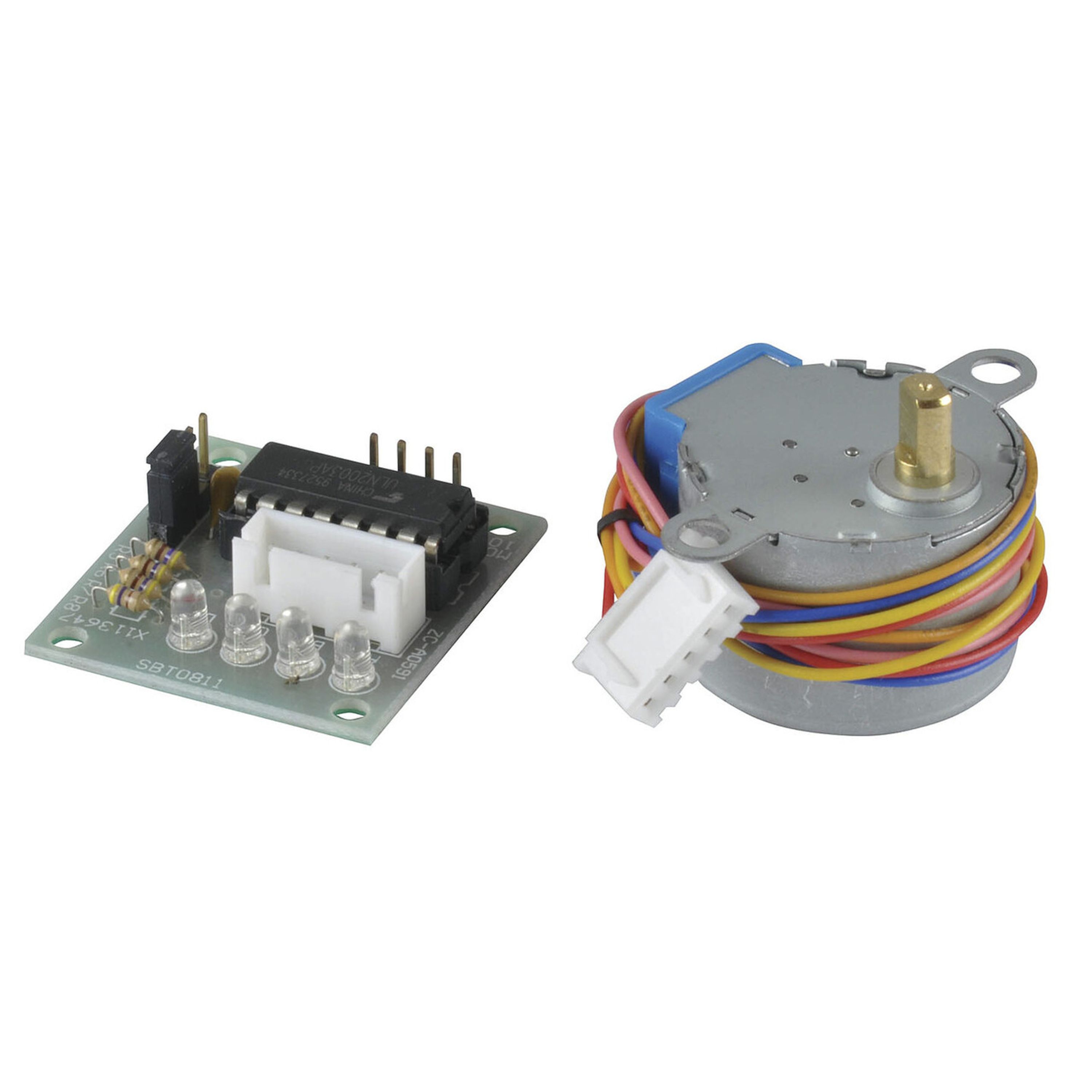

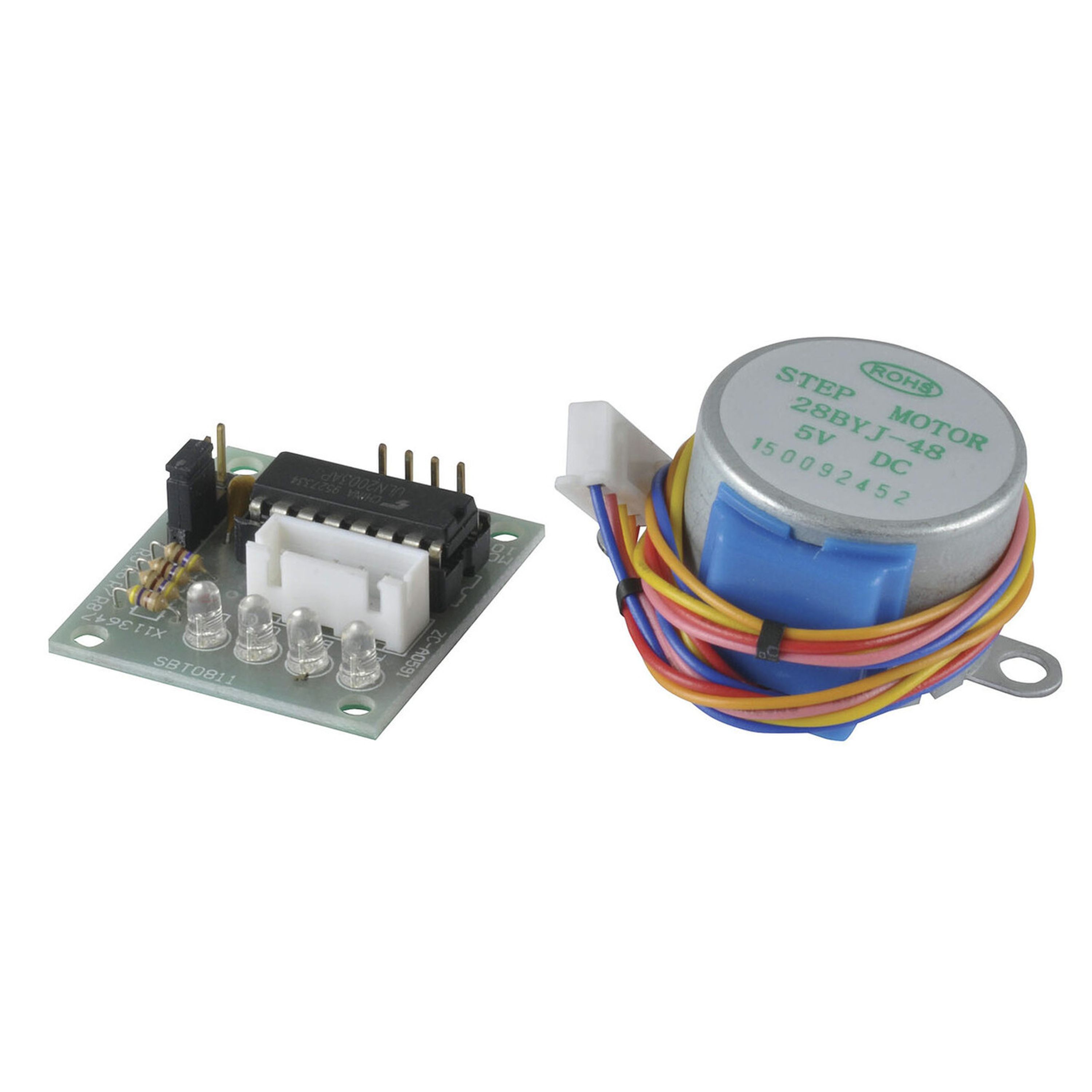

Duinotech Arduino Compatible 5V Stepper Motor with Controller
- Cat No:
- XC4458
Sold as:1 Each
Out of Stock$12.25
Description
This geared stepper motor has 4096 steps per revolution, and each step is less than 0.1 degree.
Features:
- Stepper motor size: 28mm diameter
- Stepper motor: 28byj-48
- Step angle: 5.625 x 1/64
- Reduction ratio: 1/64
- LED indicators
- Maximum speed: 30 RPM
- Nominal torque: 3Ncm
- Current draw: 250mAh
- Stall current: 750mAh
Specifications
- Required Supply Voltage
- 5.0V,5.0V
- Length
- 35.0mm
- Width
- 32.0mm
- Height
- 10.0mm
- Packaged Dimensions
- 14.6cm(Length) x 9.8cm(Width) x 3.0cm(Height)
