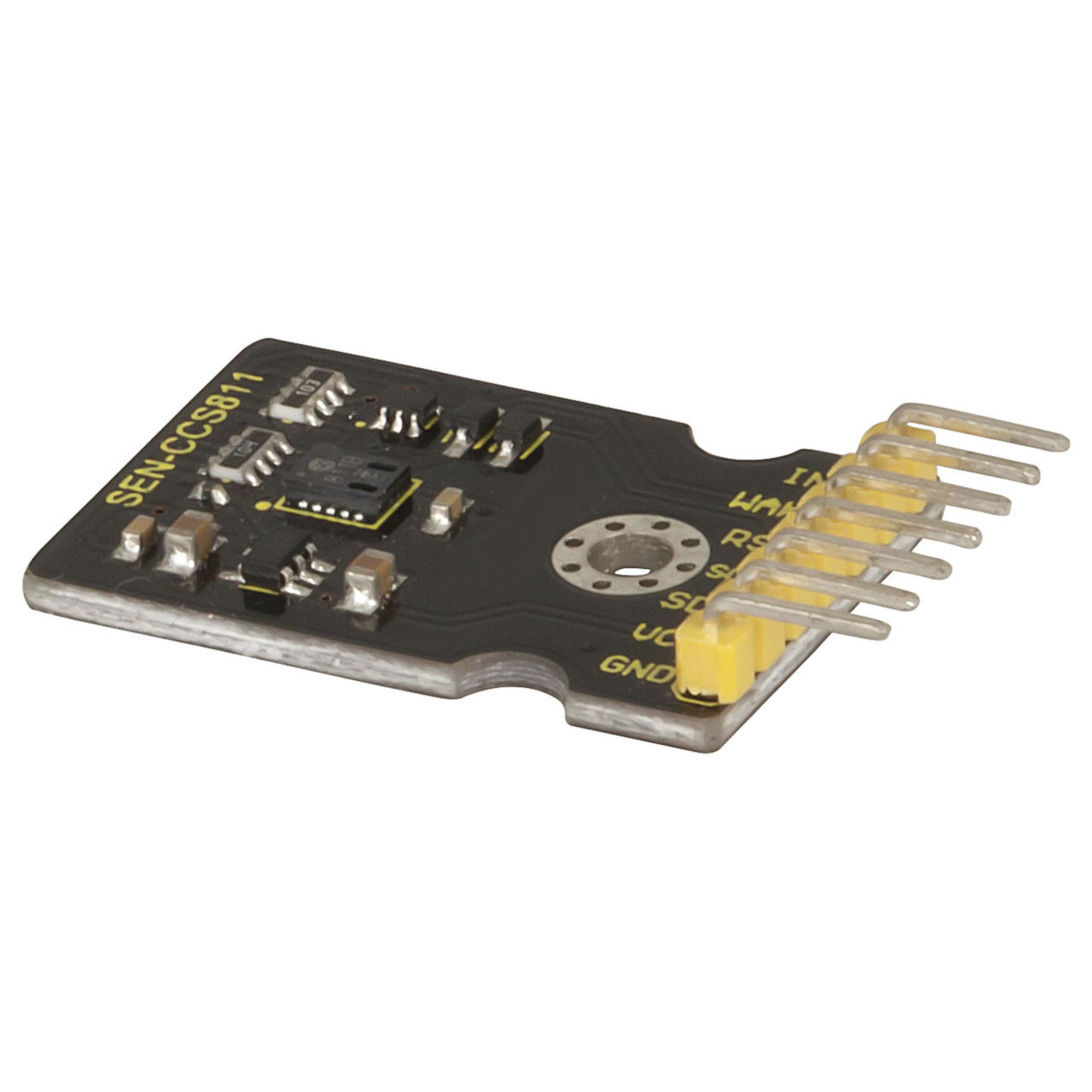

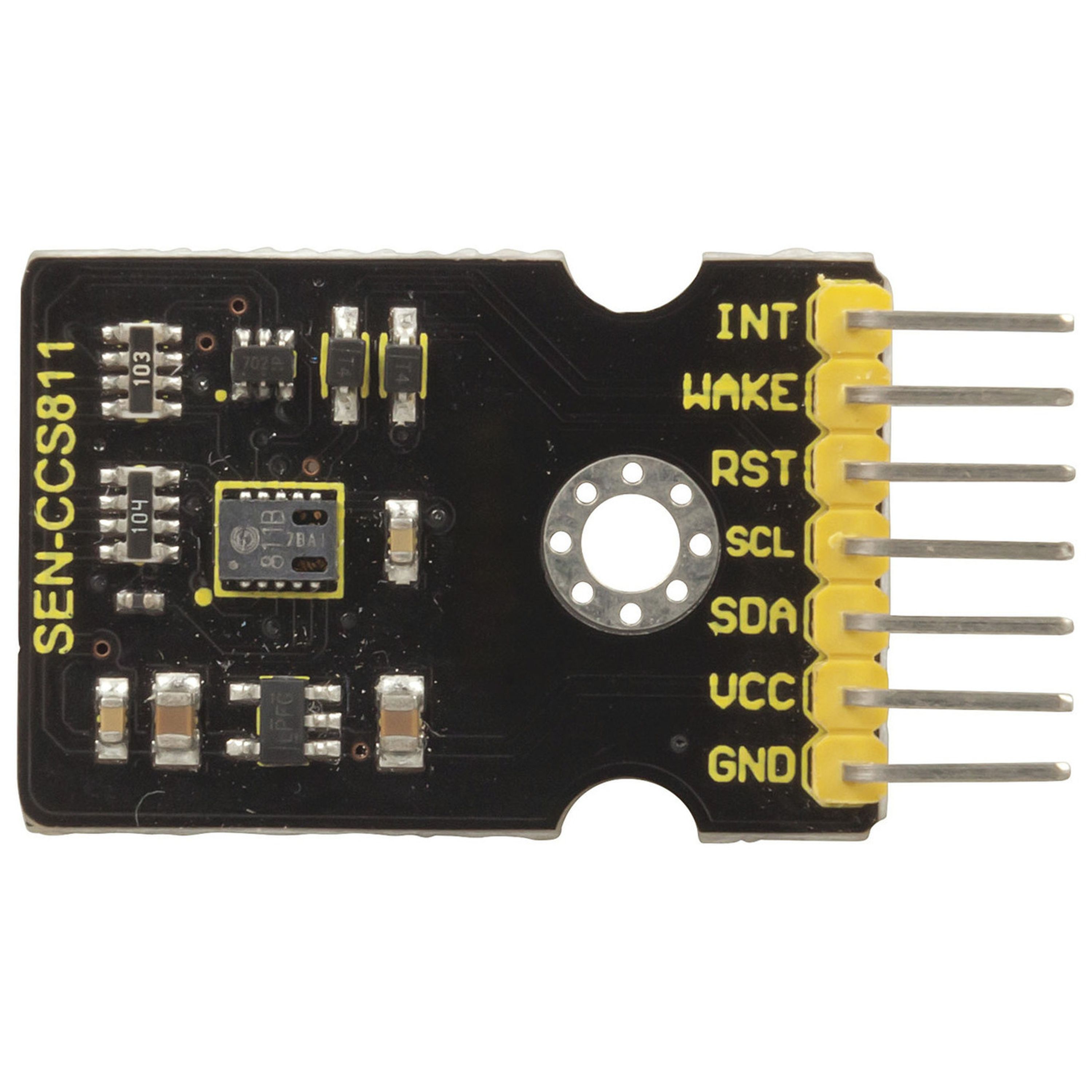

Duinotech Arduino Compatible Air Quality Sensor with CO2 and Temperature
- Cat No:
- XC3782
In Stock
$36.50
Description
This air quality sensor can detect a wide range of volatile organic compounds (TVOCs), including equivalent carbon dioxide (eCO2) and metal oxide (MOX) levels. It also features a 10K precision 1% NTC thermistor, which can be used to measure the specific temperature in the environment. Equivalent carbon dioxide (eCO2) is measured in the range of 400 to 8192ppm (parts per million), and various volatile organic compounds (TVOC) ranges from 0 to 1187ppb (parts per billion). Includes 3mm mounting holes for fixed applications.
Features:
- Measures eCO2 and MOX levels
- Ultra-low power consumption
- CCS811B chip
- Precision NTC thermistor
- 0-1187ppb TVOC measurement range
- 400-8192ppm eCO2 measurement range
Specifications
- Sensor IC
- CCS811B
- DC current rating
- 30.0mA
- DC Voltage
- 5.0V
- Continuous Power
- 46.0mW
- Operating Temperature
- -25.0°C-65.0°C
- Width
- 36.0mm
- Height
- 7.0mm
- Depth
- 20.0mm
- Weight
- 3.0g
- Dimension details
- Pin Pitch
- Width
- 2.54mm
- Packaged Dimensions
- 10.0cm(Length) x 10.0cm(Width) x 2.0cm(Height)
