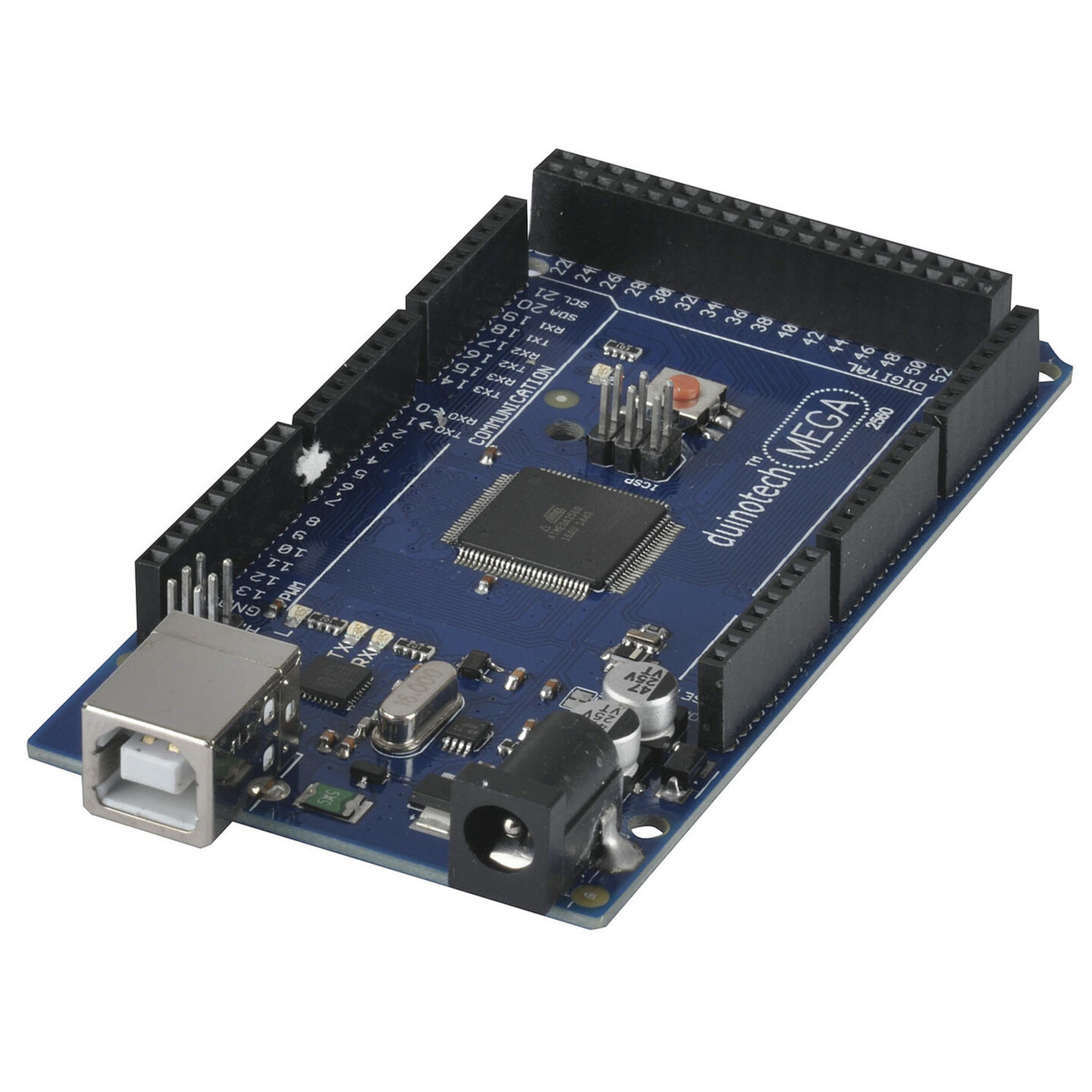

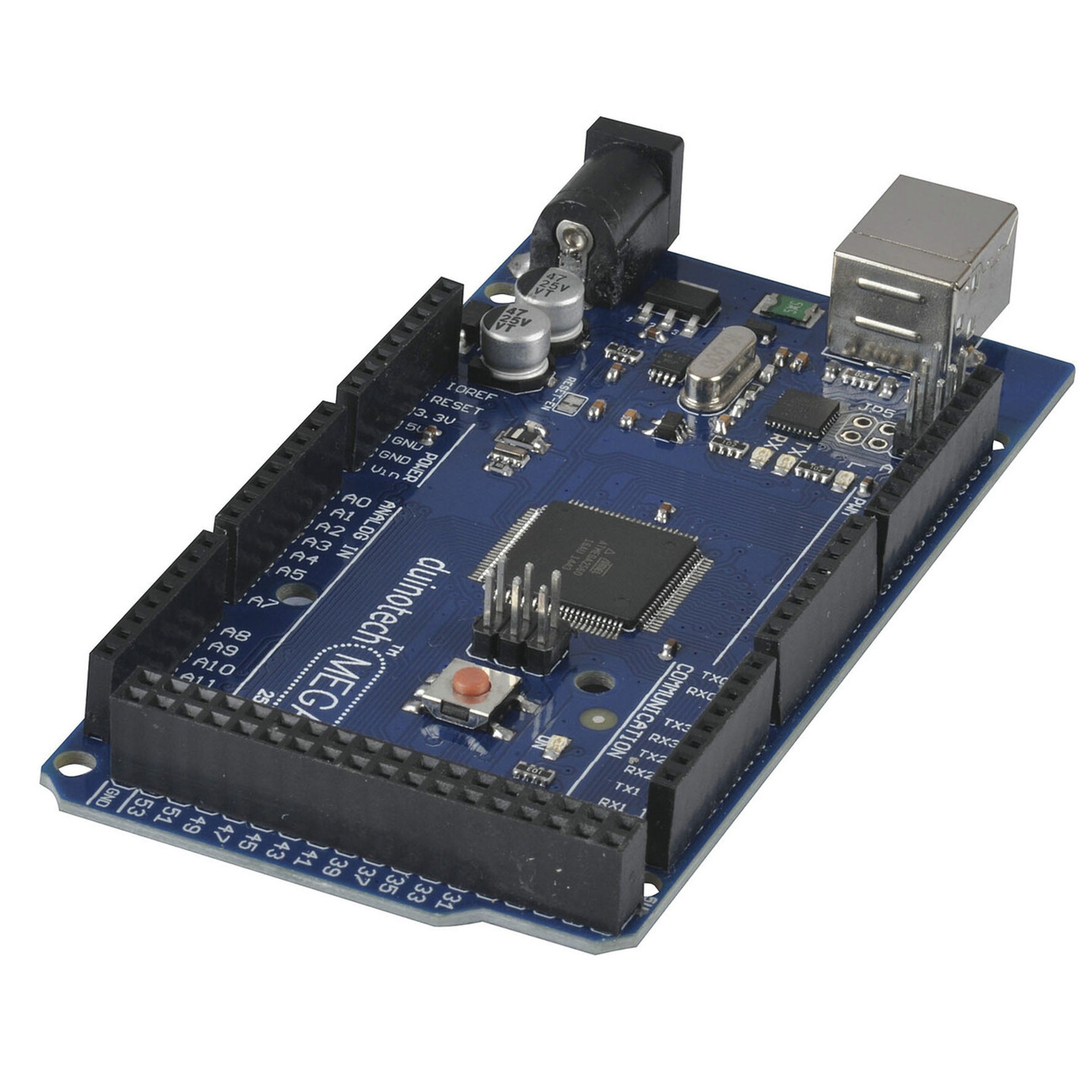

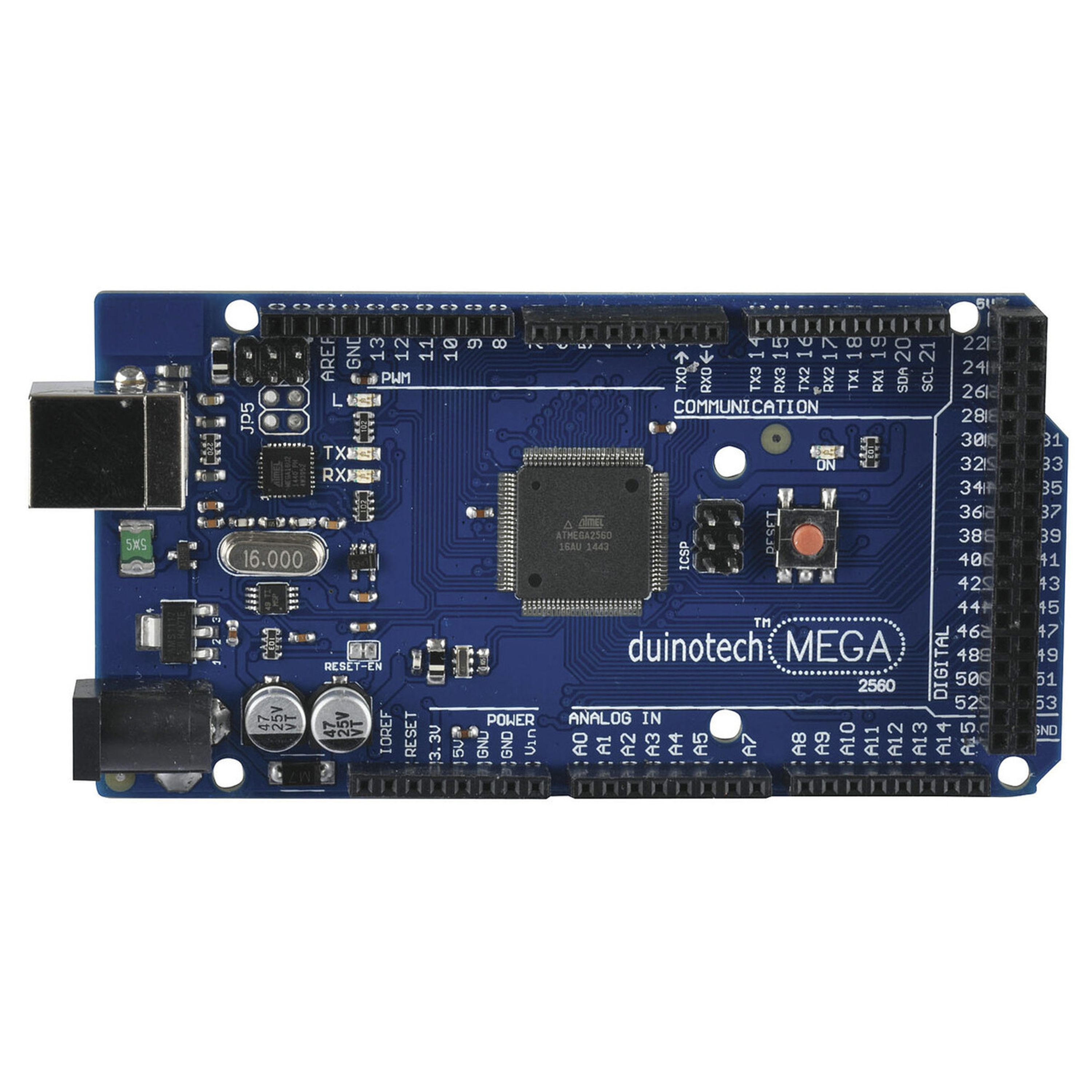

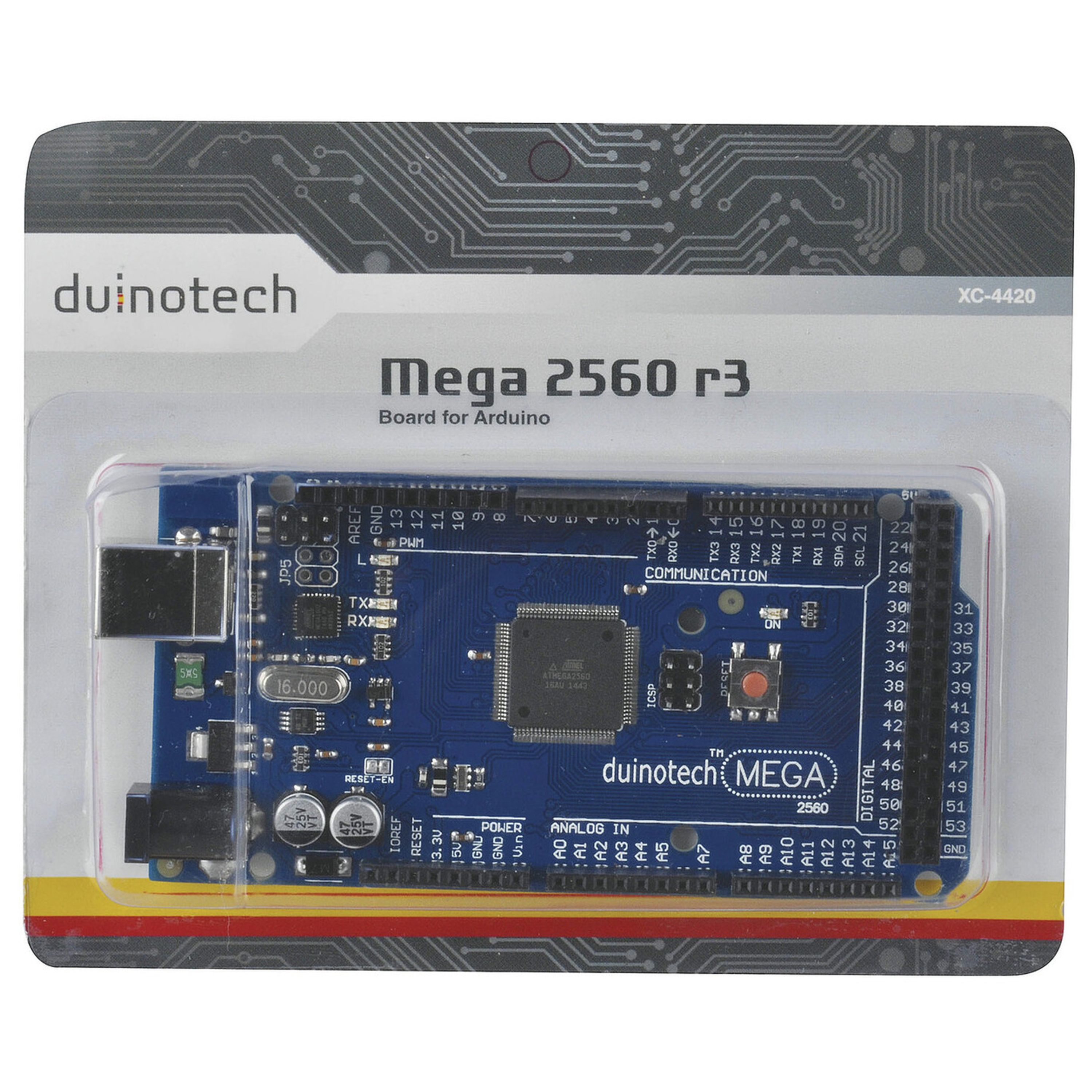

Duinotech MEGA 2560 r3 Main Board
- Cat No:
- XC4420
In Stock
$56.95
Description
Duinotech MEGA Arduino®-Compatible board boasts more IO pins, more memory, more PWM outputs, more analogue inputs and more Serial ports than the UNO board. When you have a project that just needs more inputs, outputs & memory than the Duinotech Classic (Uno) can deliver, the MEGA has them in spades. And with 8x the program memory, you have the room to write much larger programs to take full advantage of the increased IO. Despite its elongated size, standard shields will still drop straight onto this board.
Features:
• Fully Arduino®and DuinoTECH Compatible
• ATMega2560 Microcontroller
• EEPROM: 256KB
• Speed: 16MHZ
• ATMega16u2 USB-Serial Chipset
• IO:
Digital IO: 54 pins (15 are configurable as Digital or PWM)
PWM Capable: 15 pins
Analogue Inputs: 16pins
Serial Ports: 4 (1 is connected to on-board usb-Serial port)
Features:
• Fully Arduino®and DuinoTECH Compatible
• ATMega2560 Microcontroller
• EEPROM: 256KB
• Speed: 16MHZ
• ATMega16u2 USB-Serial Chipset
• IO:
Digital IO: 54 pins (15 are configurable as Digital or PWM)
PWM Capable: 15 pins
Analogue Inputs: 16pins
Serial Ports: 4 (1 is connected to on-board usb-Serial port)
• Input Voltage:
5VDC Regulated via USB port or 5V pin
7-14VDC via Vin pin
On-board regulator supplies 5V when unit is powered via Vin pin
Specifications
- USB Voltage Input
- 5.0V,5.0V,5.0V
- Supported USB Standards
- USB 2.0
- USB Port Types
- USB Type B
- Number of USB ports
- 1.0 ports
- CPU
- ATMega 2560 Rev 3
- RAM
- 8.0KB
- Flash Memory
- 256.0KB
- RAM Type
- SRAM
- Microcontroller
- ATMega 2560 Rev3
- Program memory
- 256.0KB
- Board Inputs
- 16 Analogue Inputs,54 Digital Pins
- Board Outputs
- 54 Digital Pins with 15 PWM
- Length
- 53.0mm
- Width
- 108.0mm
- Height
- 15.0mm
- Packaged Dimensions
- 13.6cm(Length) x 5.7cm(Width) x 2.1cm(Height)
