Duinotech

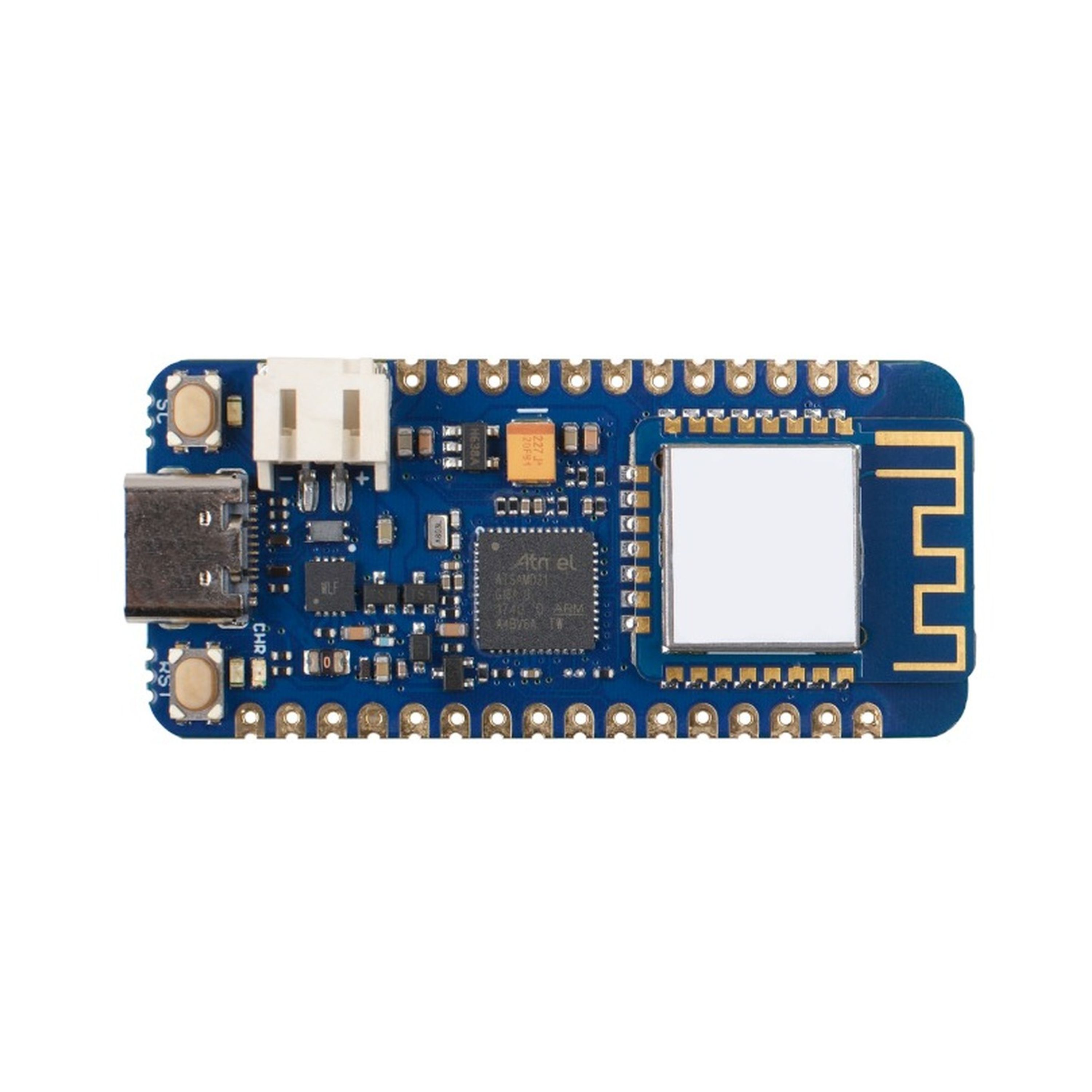

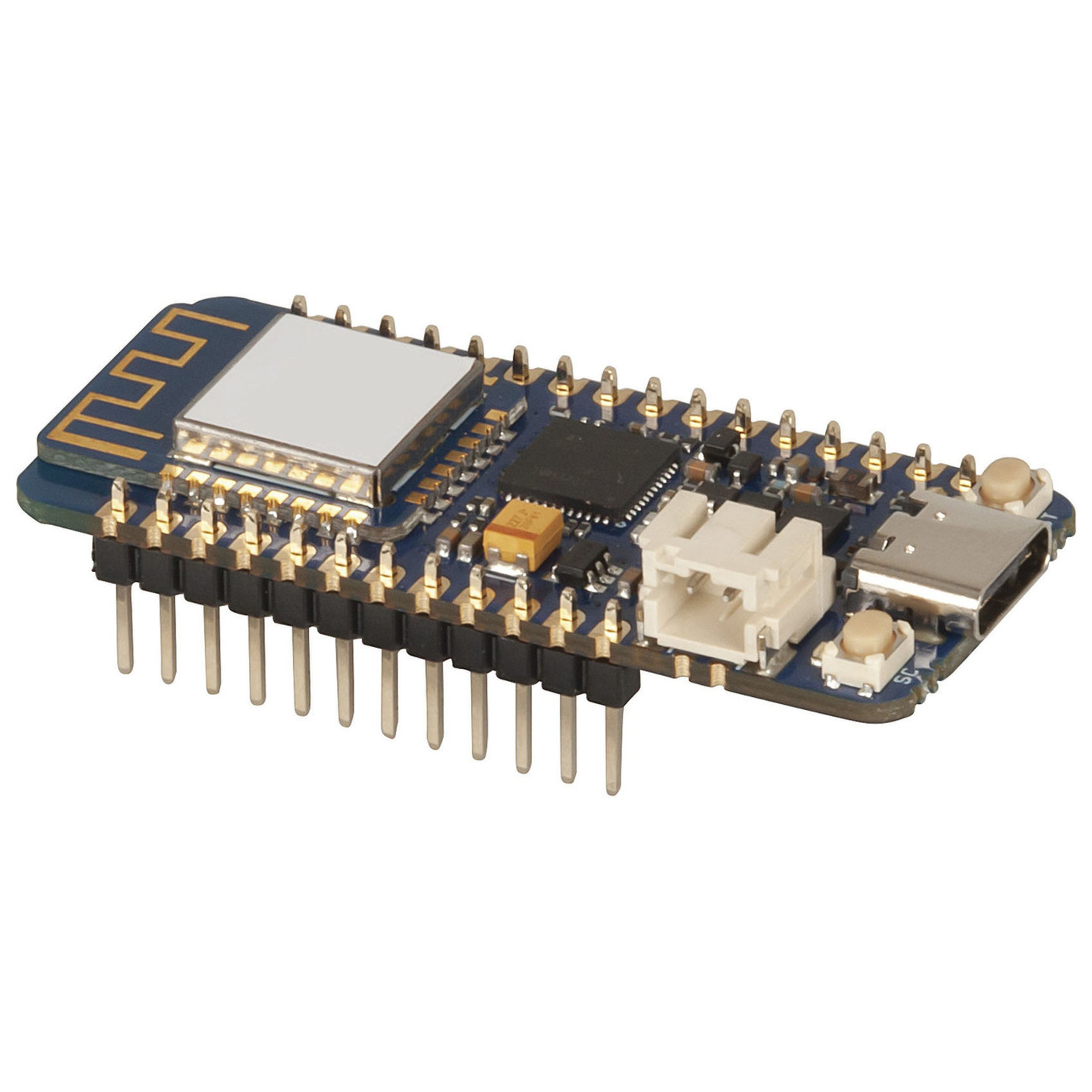

Duinotech SAMD21 Main Board with Wi-Fi
- Cat No:
- XC3812
In Stock
$71.95
Description

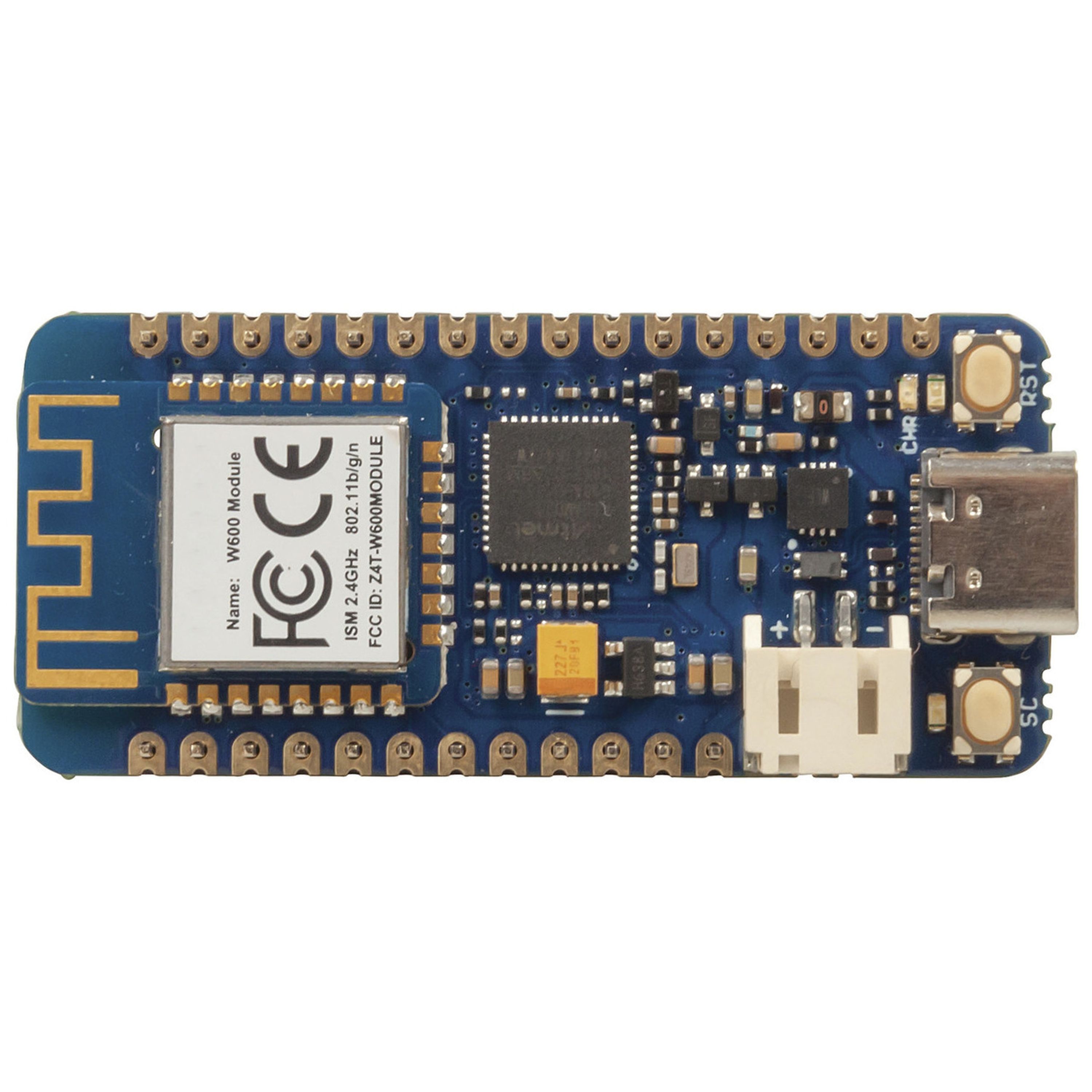

A small form factor microcontroller board with an integrated W600 Wi-Fi module, making it ideal for compact and low-power IoT wireless projects. It features 6 analogue and 14 digital pins, a UART, I2C, and ICSP port. It has a USB Type-C socket for 5V power and programming, and there is also provision to connect and charge a 3.5-4.2V Li-Po battery (sold separately) for portable applications.
Features:
- Arduino Zero and Adafruit Feather Compatible
- 2.4GHz onboard Wi-Fi module supports 802.11 b/g/n
Specifications
- USB Voltage Input
- 3.5V,5.1V
- Supported Wi-Fi Modes
- 802.11b (Wi-Fi 1),802.11g (Wi-Fi 3),802.11n (Wi-Fi 4)
- Transmission frequency
- 2.4GHz
- Microcontroller
- Atmel® | SMART™ SAM D21 ARM Cortex-M0+
- Program memory
- 256.0kB
- Board Inputs
- 6 Analogue,14 Digital

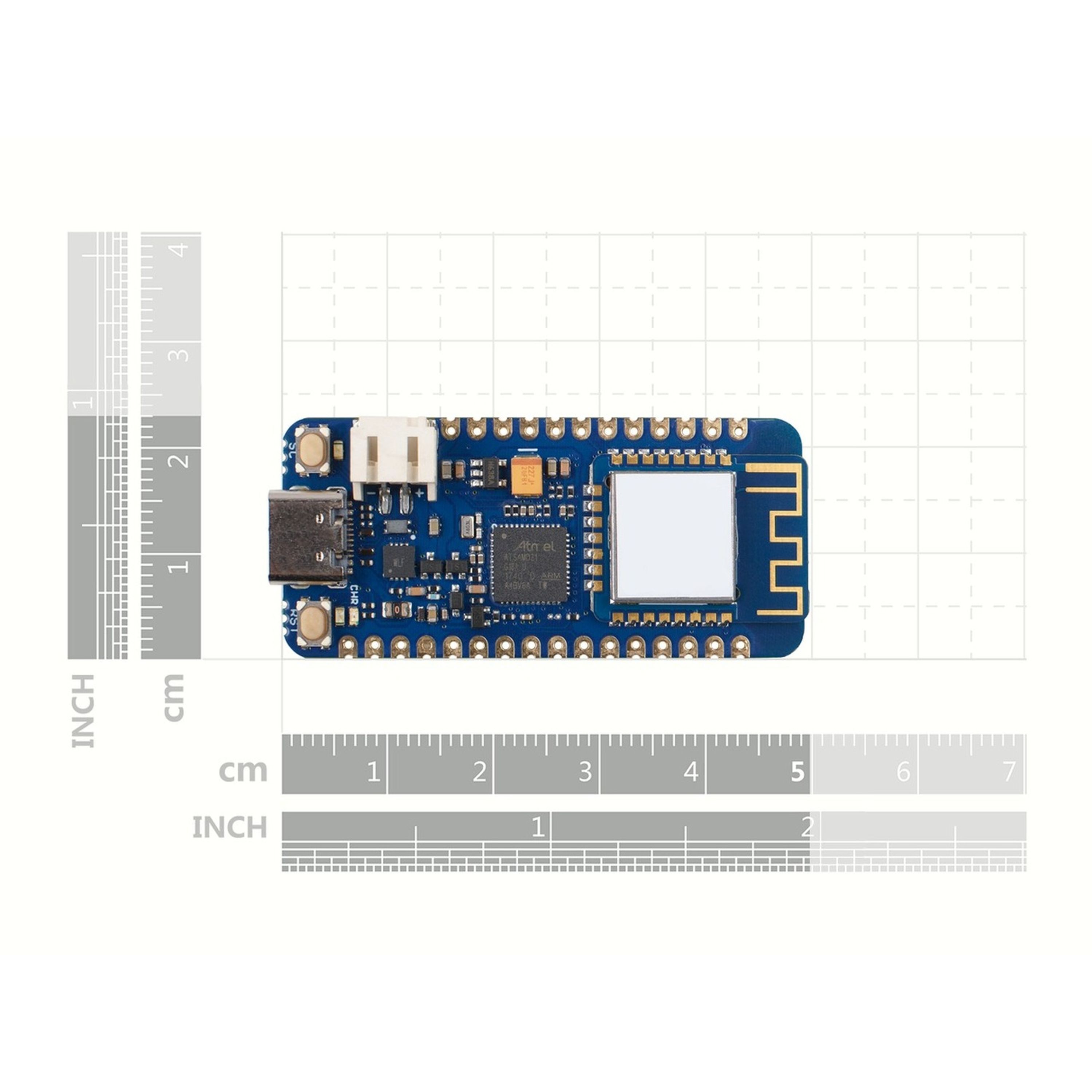

- Width
- 23.0mm
- Height
- 17.0mm
- Depth
- 52.0mm
- Weight
- 5.0g
- Rechargeable battery required to power
- Main Product
- Shape
- Lithium Rechargeable Battery Cell/Pack
- Type
- Lithium Polymer
- USB Charge Connection
- USB Type C
- Packaged Dimensions
- 10.0cm(Length) x 10.0cm(Width) x 1.0cm(Height)
