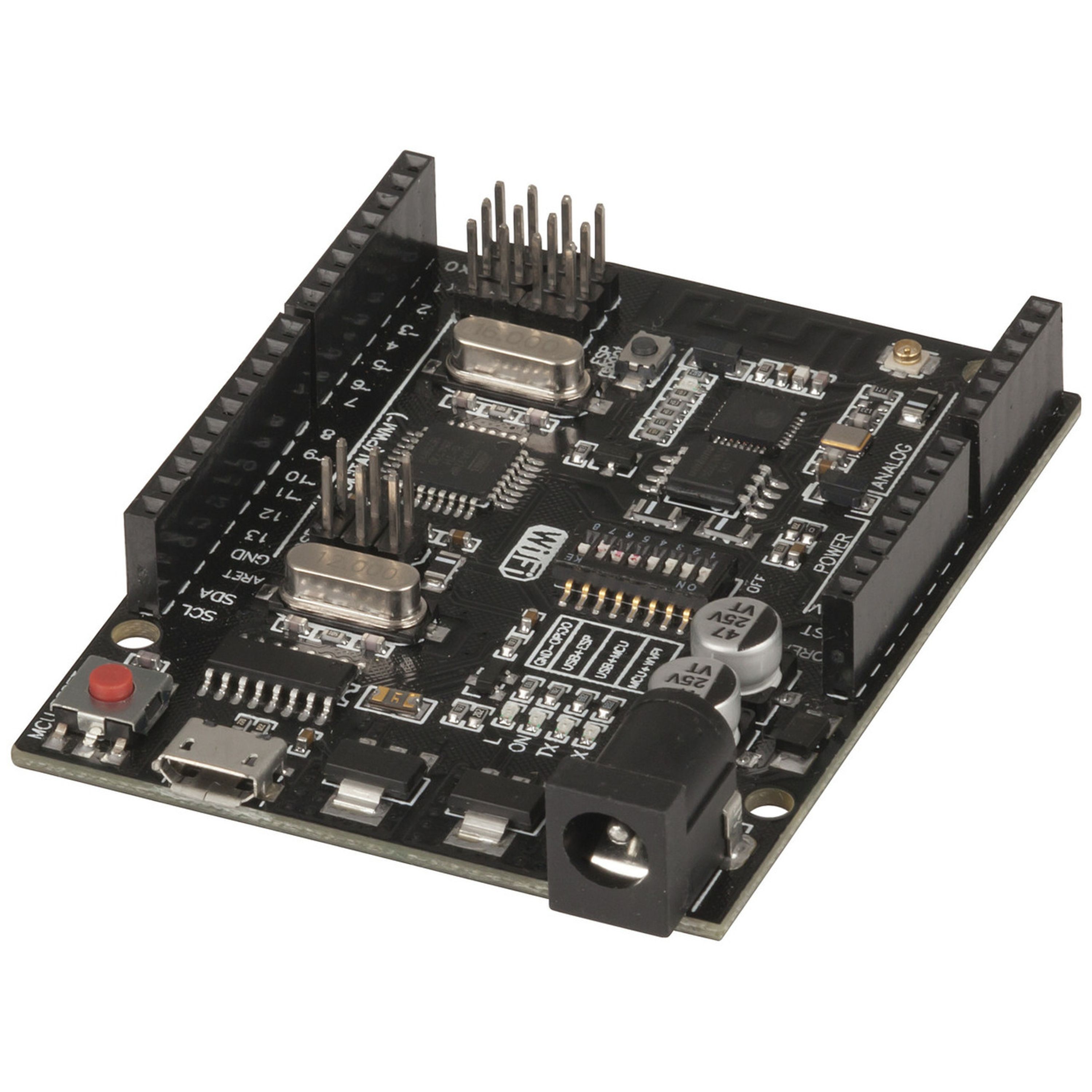

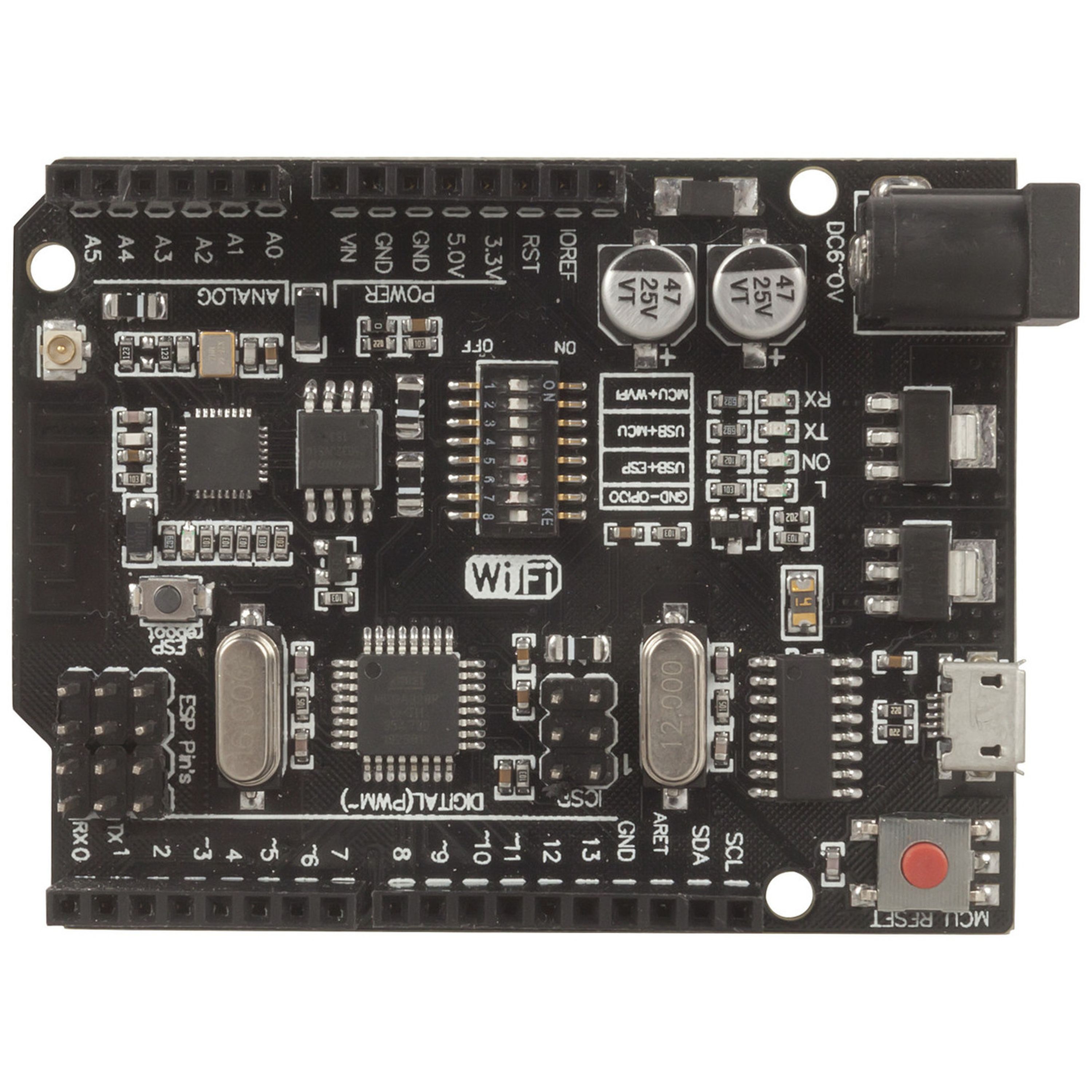

Duinotech UNO r3 Main Board with Wi-Fi
- Cat No:
- XC4411
In Stock
$51.95
Description
An Arduino® compatible UNO board with an integrated ESP8266 board, which makes it easy to connect your projects to the cloud without the need for additional modules. Features the ATmega328P and standard UNO layout, and includes a set of DIP switches to configure the serial connections.
Uses a Micro-B USB lead such as WC7723 for connecting to the computer and uploading sketches. For full instructions please refer to the manual available on the downloads tab.
Please note:
• To talk to board you need to download and install CH340 Driver (search for driver on the net).
• You must upload code to both processors then configure the switches for them to talk to each other.
Specifications
- USB Port Types
- USB Micro Type B
- Number of USB ports
- 1.0 ports
- Supported Wi-Fi Modes
- 802.11n (Wi-Fi 4),802.11g (Wi-Fi 3),802.11b (Wi-Fi 1)
- Transmission frequency
- 2.4GHz
- Transmission power
- 10.0mW
- Transmission range
- 100.0m
- Receiver Antenna Style
- Internal Antenna
- Transmitter Antenna Style
- Internal Antenna
- Microcontroller
- ATMega328 + ESP8266
- Product Dimensions
- 71.0 x 14.0 x 14.0 mm
- Width
- 53.0mm
- Weight
- 25.0g
- Packaged Dimensions
- 9.9cm(Length) x 5.8cm(Width) x 1.9cm(Height)
