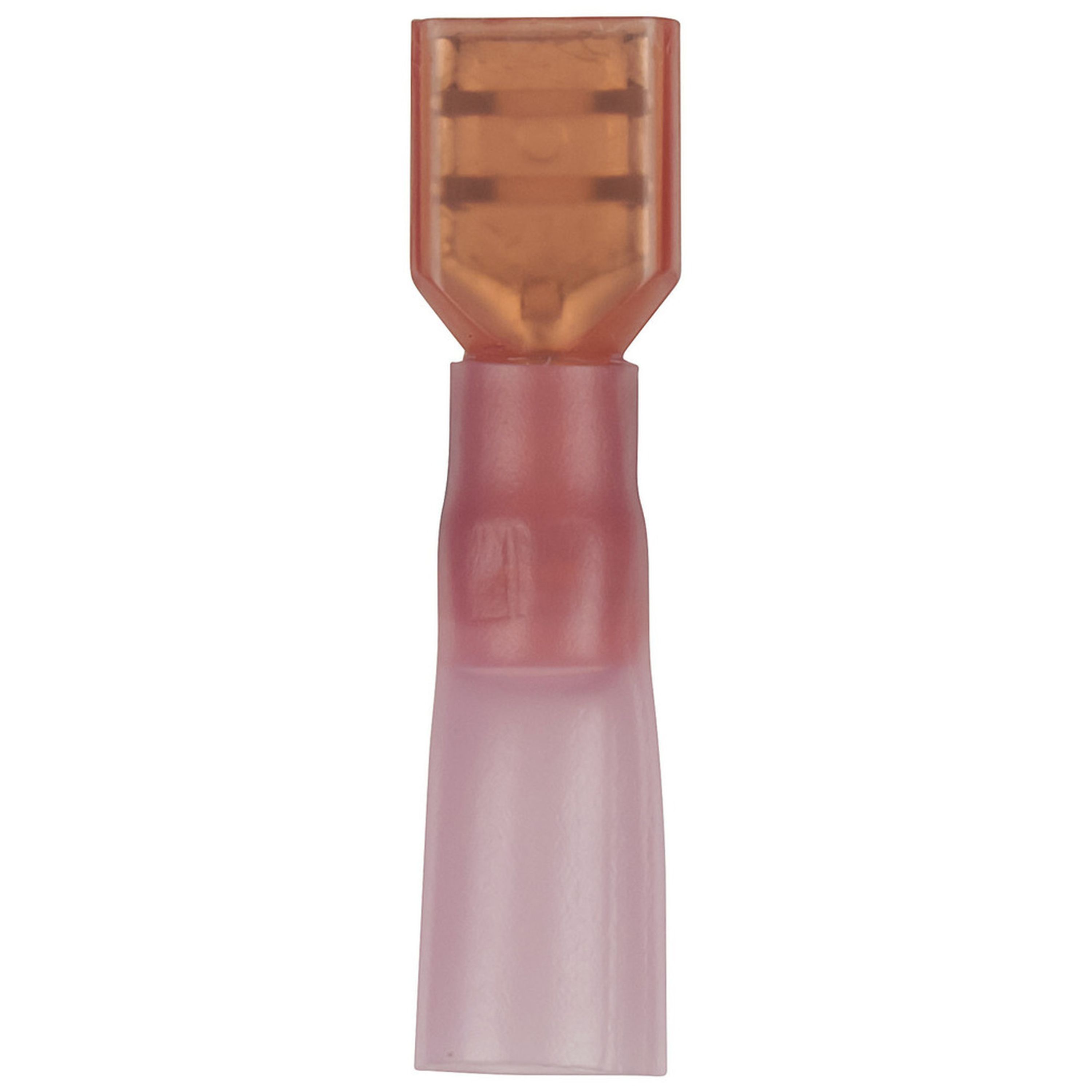

Fully Insulated Female Spade - Red - Packet of 8 - Self Sealing Quick Connectors
- Cat No:
- PT4825
Sold as:1 Each
In Stock$8.25
Description
Self Sealing Quick Connectors
The unique heat sensitive sealing gel in these quick connectors will automatically flood the crimp joint with sealant as the heatshrink sleeve is heated. The resulting crimp connection is water and corrosion resistant and has good strain relief properties. 11 styles to choose from.
The unique heat sensitive sealing gel in these quick connectors will automatically flood the crimp joint with sealant as the heatshrink sleeve is heated. The resulting crimp connection is water and corrosion resistant and has good strain relief properties. 11 styles to choose from.
Specifications
- Type of quick connector
- Spade
- Device
- Socket
- Terminal Size
- 6.4mm
- Colour Coded
- Red
- Pack Quantity
- 8.0pc
- Insulation
- Heatshrink Sleeve
- Wire Diameter
- 0.75mm-0.75mm
- Cable Entry Diameter
- 4.3mm
- Device Type
- Heat Shrink QC
- Outer Diameter
- 4.1mm
- Wire Gauge
- 22-18 AWG
- Pack Quantity
- 100.0
- Colour
- Red
- Wire Diameter
- 1.0mm
- Insulation
- Nylon
- Attachment Method
- Crimp
- AC Voltage Rating
- 300V
- DC Voltage Rating
- 300V
- DC Current Rating
- 10A
- Wire Size (Cross Section)
- 0.5-1.5mm²
- Contact Material
- Copper
- Operating Temperature
- 105°C
- Terminal Size
- 6.4mm
- IP Rating
- IP67
- Width
- 6.4mm
- Packaged Dimensions
- 12.0cm(Length) x 6.5cm(Width) x 1.5cm(Height)
