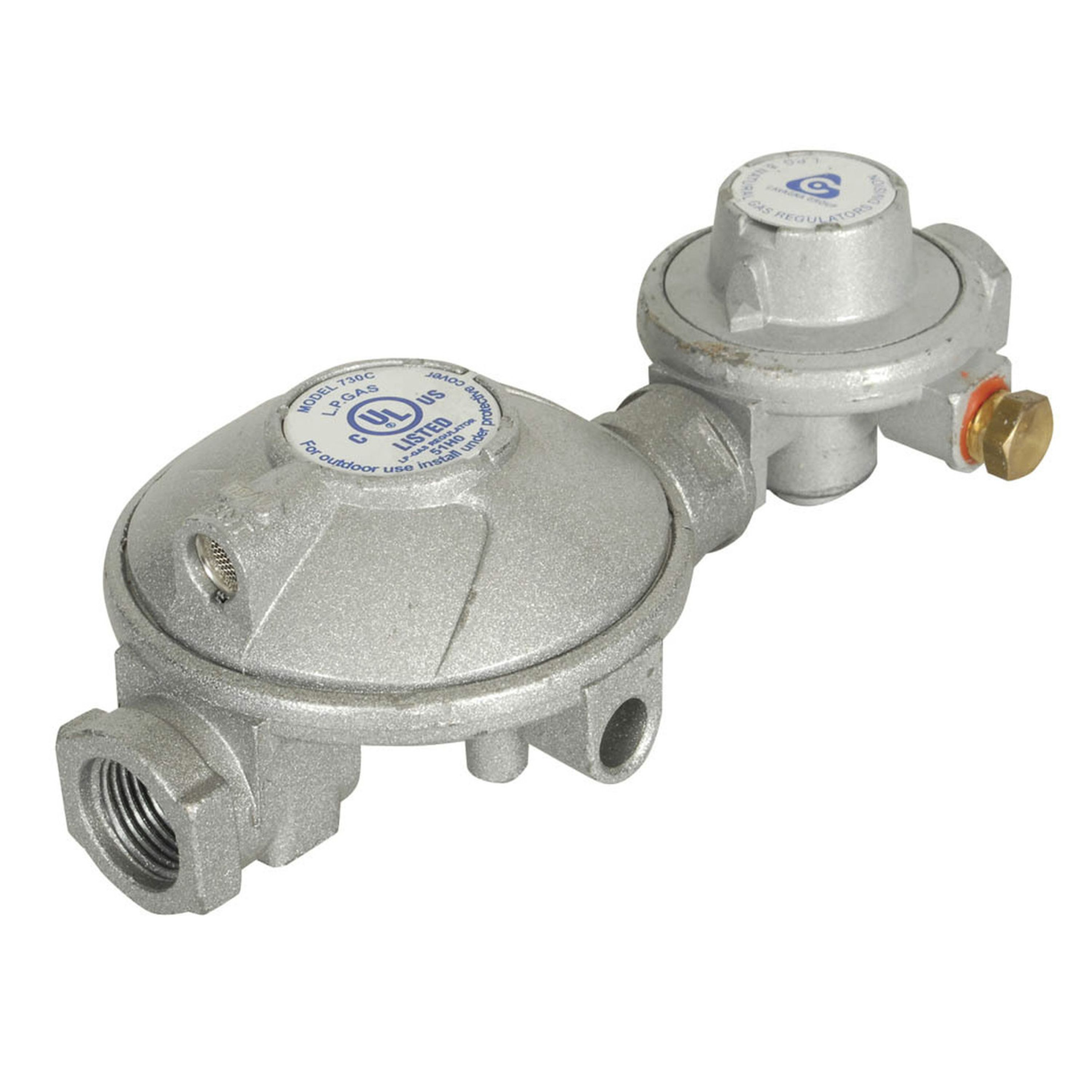

Gas Regulator - Dual Stage Regulator with Pigtail Adaptor
- Cat No:
- RGC410
Sold as:1 Each
In Stock$64.95
Description
Dual stage regulator, 160mj/hour, mounting bracket and pigtail adaptor.Two-stage regulation results in a consistent inlet pressure to the second stage, thereby minimizing minor outlet pressure variations from the second stage regulator.
• Mounting holes 90mm apart
• Inlet pressure 10 to 250psi
• Outlet pressure 11" WC
• Inlet 1/4 Inch FNPT
• Outlet 3/8 Inch FNPT. (connects to m-BSP-3/8)
• Capacity 210,000 BTU/hr
• Dimensions: 142mm x 83mm wide, 75mm thick (excluding bracket)
• Offset bracket adds 19mm to thickness
• Mounting holes 90mm apart
• Inlet pressure 10 to 250psi
• Outlet pressure 11" WC
• Inlet 1/4 Inch FNPT
• Outlet 3/8 Inch FNPT. (connects to m-BSP-3/8)
• Capacity 210,000 BTU/hr
• Dimensions: 142mm x 83mm wide, 75mm thick (excluding bracket)
• Offset bracket adds 19mm to thickness
Specifications
- Packaged Dimensions
- 16.0cm(Length) x 10.0cm(Width) x 9.0cm(Height)
