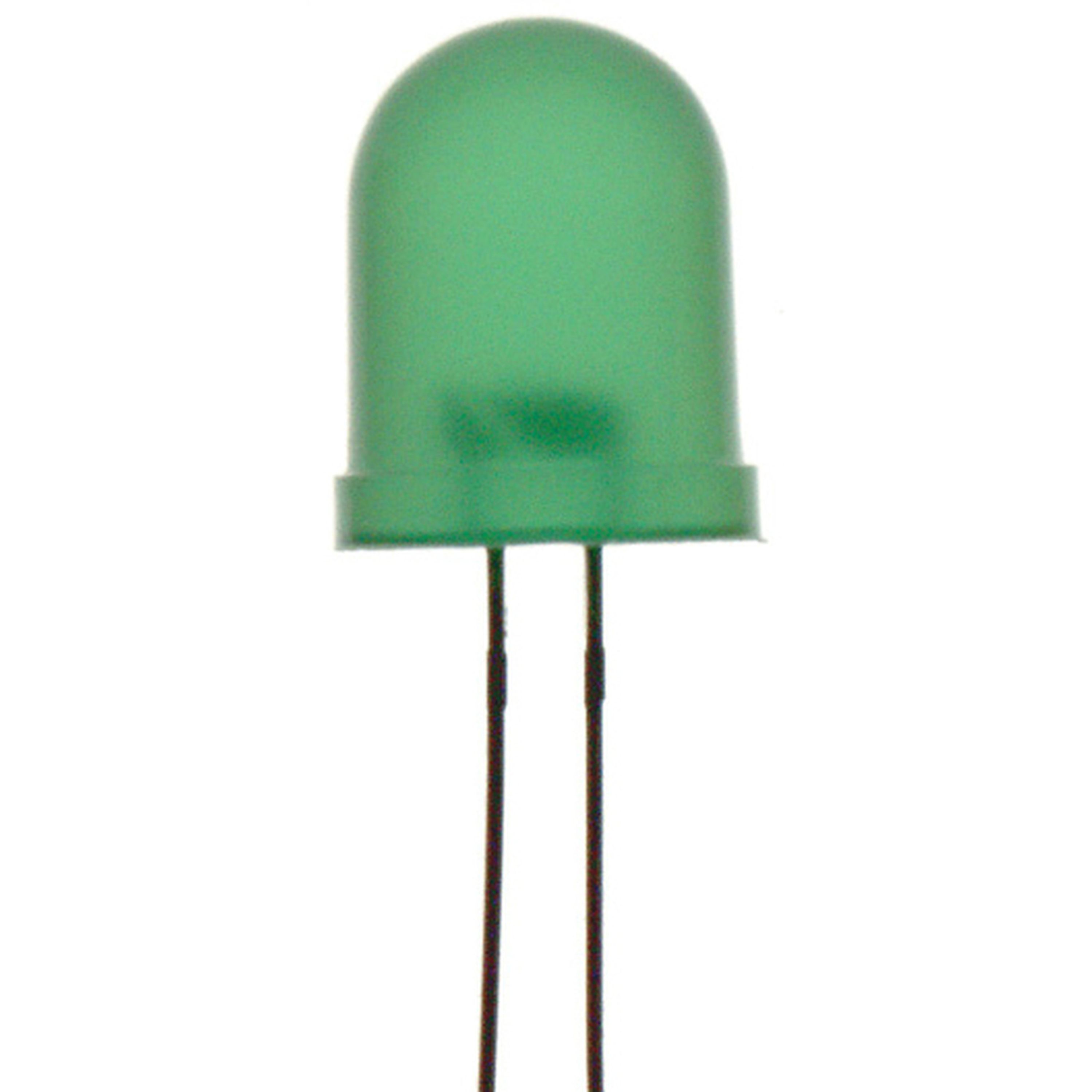

Green 3mm LED 40mcd Round Diffused
- Cat No:
- ZD0120
In Stock
$0.30
Description
Green 3mm LED 40mCd Round Diffused
Specifications
- LED Type
- 3mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- Green
- Light Wavelength
- 573.0nm
- Lens Type
- Diffused
- Viewing Angle
- 50.0°
- Intensity
- 40.0mcd
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 2.3V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 20.0mA
- Resistor for 5VDC
- 130.0Ω
- Resistor for 9VDC
- 330.0Ω
- Resistor for 12VDC
- 470.0Ω
- Diameter
- 3.0mm
- Packaged Dimensions
- 3.5cm(Length) x 0.3cm(Width) x 0.3cm(Height)
