Bada

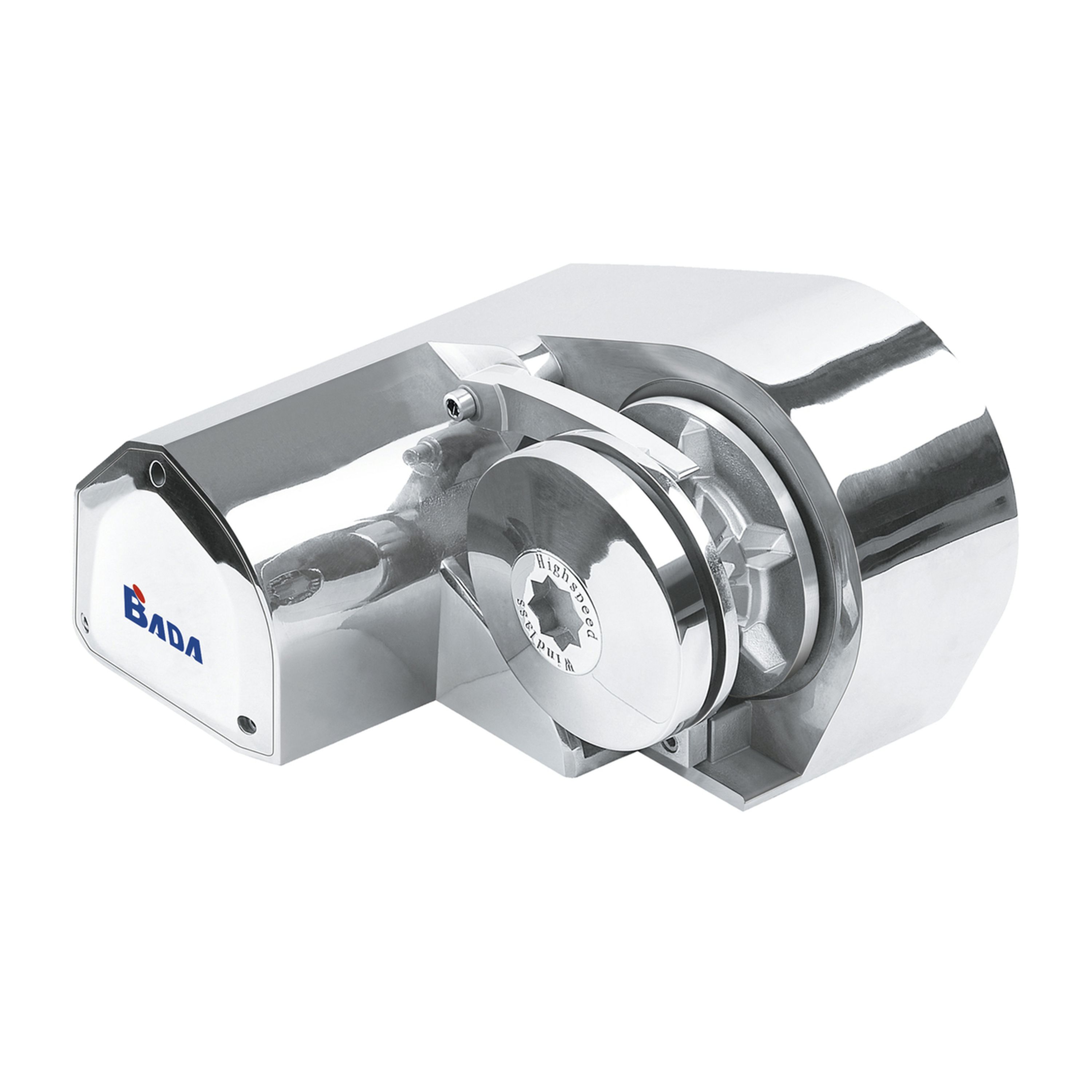

High Speed 900W Horizontal Windlass
- Cat No:
- MAC642
- MPN:
- S912-8MM
Sold as:1 Each
In Stock$1,099.00
Description
These units do not require under deck space except for wiring and of course anchor chain. They will, however, require deck strengthening to 1”-2” (25-50mm) if your deck is not that thick already. They will work with chain only or a rope/chain combination. They have adjustable clutches and come with mounting hardware kit.
Specifications:
• Drop Speed 35m/min (115ft/min)
• Max Powerpull: 750kg / 1650lbs
• Recommended Chain Size: 8mm
• Recommended Rope Size: 14mm
• Boat Size: ≤35’
May require solenoid SY4202 for operation
Note: Instructions included give dimensions and locations for drilling holes, however do not use the dimension sheet as a template to drill through, as it is not printed at 1:1 scale.
Specifications
- DC Voltage
- 12.0V
- Continuous Power
- 900.0W
- Packaged Dimensions
- 36.8cm(Length) x 26.5cm(Width) x 20.5cm(Height)
