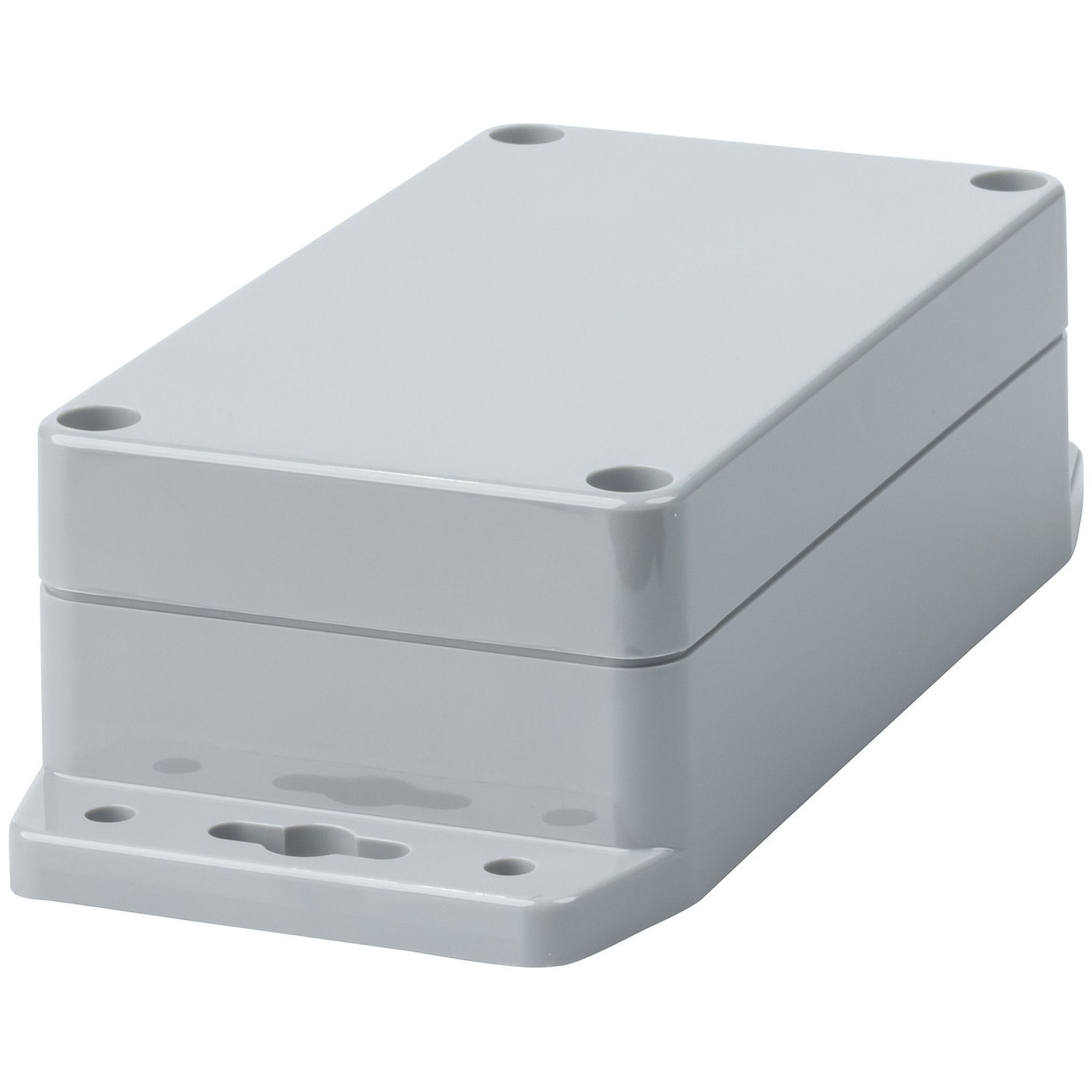

IP65 Sealed ABS Enclosures - Dark Grey with Mounting Flange - 115x65x40mm
- Cat No:
- HB6123
Sold as:1 Each
In Stock$14.50
Description
Features:
- Operating temperature: -20 to 80 degrees
- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.

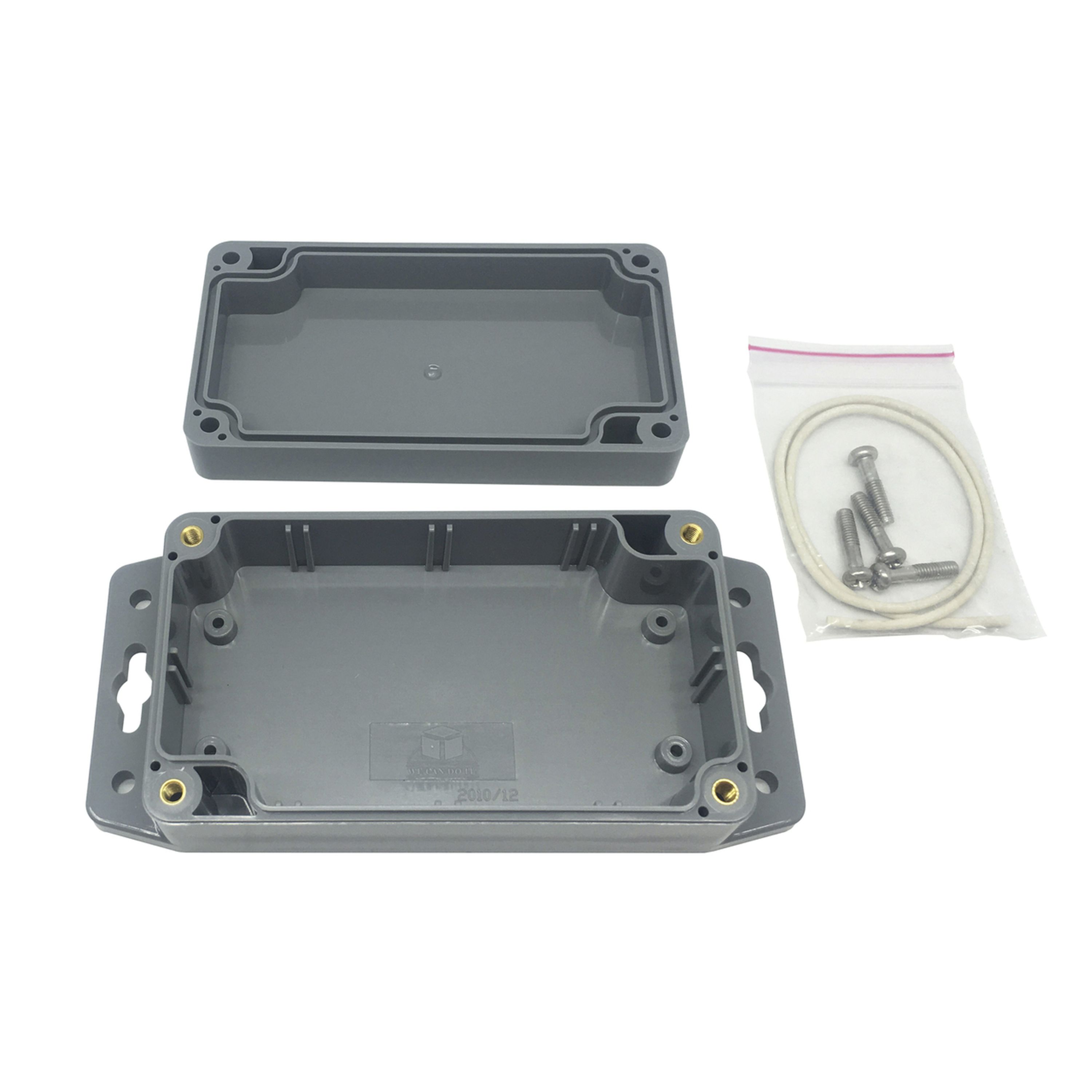

- The lid and base incorporate a tongue and groove sealing system with a neoprene gasket
- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
- Flange to allow mounting after the box has been sealed
Specifications
- Material
- ABS Plastic (Acrylonitrile Butadiene Styrene)
- PCB Internal Guide Slots
- true
- Internal Mounting Posts
- true
- Gasket sealing system
- true
- Gasket Material
- Neoprene
- Lid Screws
- 4.0pc
- Ventilation Holes
- false
- Colour
- Dark Grey
- IP Rating
- IP65
- Dust/Particle Ingress Protection
- 6 - Dust tight, no ingress of dust
- Liquid/Moisture Ingress Protection
- 5 - Water jets
- Dimension details
- Box Dimensions
- Width
- 115.0mm
- Height
- 40.0mm
- Depth
- 65.0mm
- Dimensions details
- Base Dimensions
- Width
- 145.0mm
- Depth
- 65.0mm
- Packaged Dimensions
- 14.5cm(Length) x 6.6cm(Width) x 4.0cm(Height)
