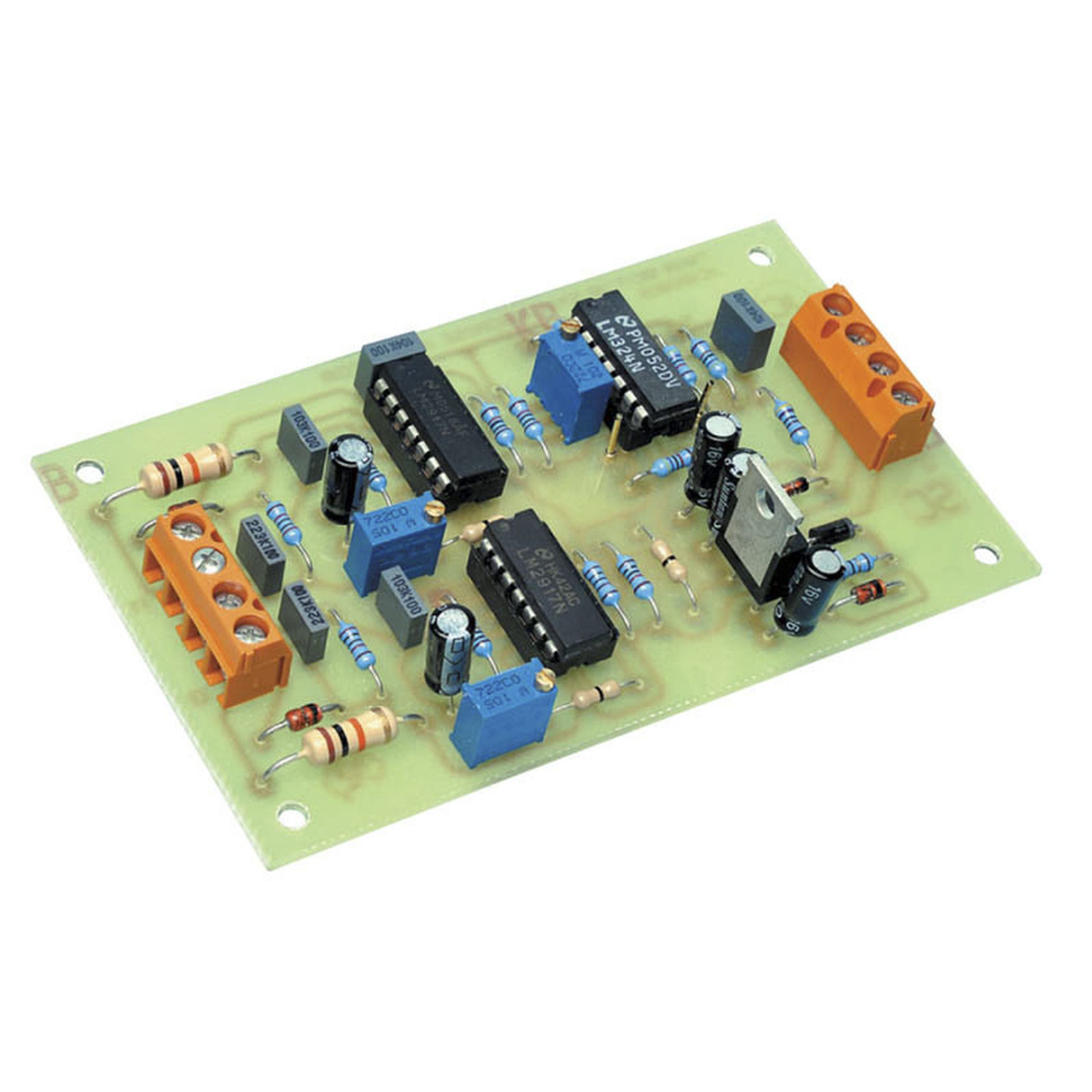

Marine Engine Speed Equaliser Kit
- Cat No:
- KC5488
In Stock
$27.95
Description
Refer: Silicon Chip Magazine November 2009
Avoid unnecessary noise and vibration in twin-engine boats. For optimum performance, both motors should run at exactly the same RPM. You could tune the engine speeds using the tacho for each engine, but it's impossible to get it accurate as the tacho itself has an error of up to 5%. The Engine Speed Equaliser Kit takes the tacho signals from each motor and displays the output on a meter that is centred when both motors are running at the same RPM. When there's a mismatch, the meter shows which motor is running faster and by how much. You simply adjust the throttles to suit. Short form kit only, requires moving coil panel meter Cat No. QP-5010.
12VDC
PCB and specified components
Avoid unnecessary noise and vibration in twin-engine boats. For optimum performance, both motors should run at exactly the same RPM. You could tune the engine speeds using the tacho for each engine, but it's impossible to get it accurate as the tacho itself has an error of up to 5%. The Engine Speed Equaliser Kit takes the tacho signals from each motor and displays the output on a meter that is centred when both motors are running at the same RPM. When there's a mismatch, the meter shows which motor is running faster and by how much. You simply adjust the throttles to suit. Short form kit only, requires moving coil panel meter Cat No. QP-5010.
12VDC
PCB and specified components
Specifications
- Power Requirement
- 12VDC
- Silicon Chip Reference
- 41699
- Kit Type
- Automotive / Marine
- Battery Required
- No (12V)
- Silicon Chip Reference
- Silicon Chip Magazine November 2009
- Packaged Dimensions
- 19.8 x 9.9 x 3.5 cm
