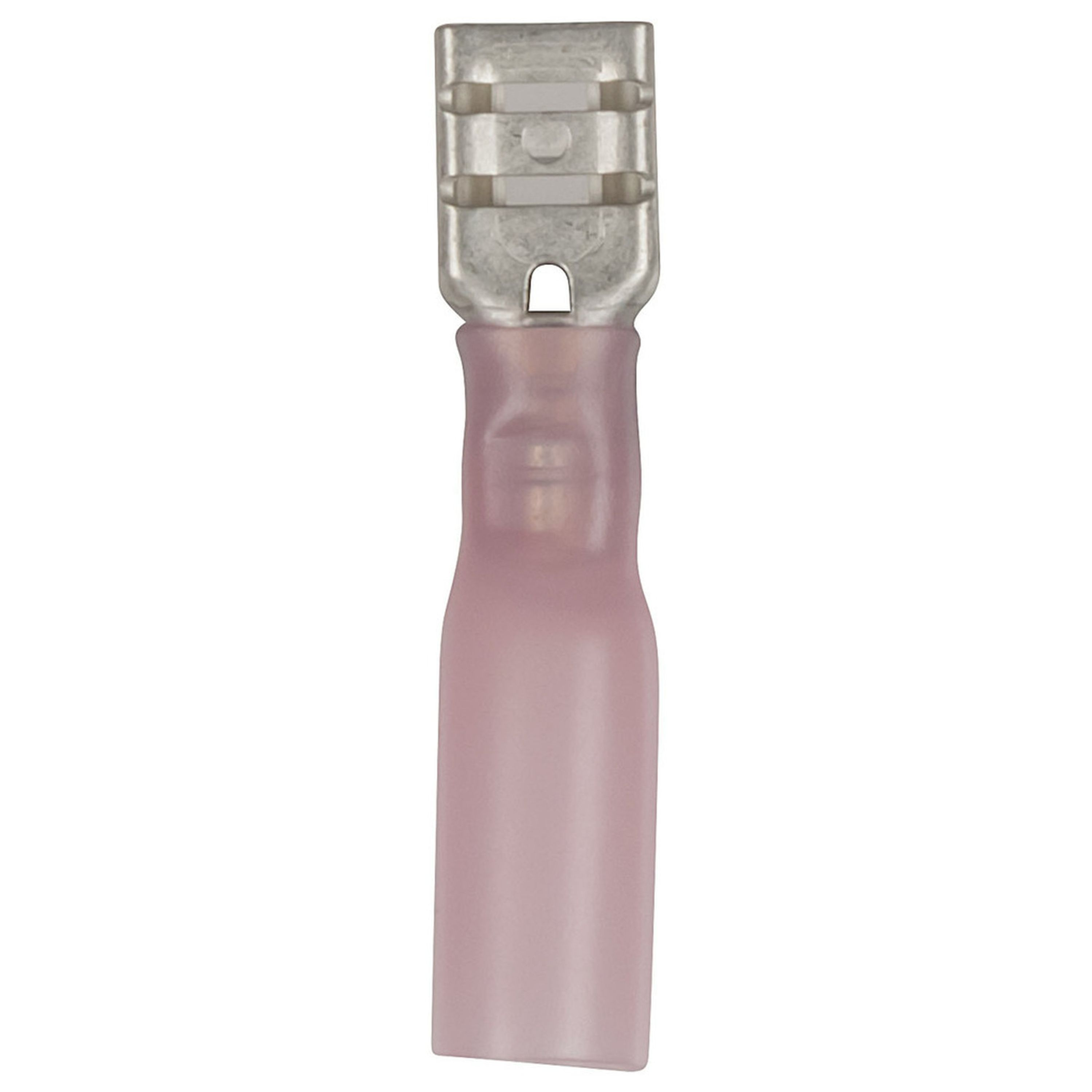

Mini Female Spade - Red - Packet of 8 - Self Sealing Quick Connectors

Cat No:
PT4822
Sold as:1 Each
Carton size:320
In Stock

$6.95

Description

Self Sealing Quick Connectors
The unique heat sensitive sealing gel in these quick connectors will automatically flood the crimp joint with sealant as the heatshrink sleeve is heated. The resulting crimp connection is water and corrosion resistant and has good strain relief properties. 11 styles to choose from.

Specifications

Type of quick connector
Spade
Device
Socket
Terminal Size
4.8mm
Colour Coded
Red
Pack Quantity
8.0pc
Insulation
Heatshrink Sleeve
Wire Diameter
0.75mm-0.75mm
Cable Entry Diameter
4.1mm,4.1mm
Outer Diameter
4.5mm
Pack Quantity
8.0
Wire Gauge
22-18 AWG
Wire Diameter
1.0mm
Colour
Red
Operating Temperature
105°C
Attachment Method
Crimp
AC Voltage Rating
300V
DC Voltage Rating
300V
Wire Size (Cross Section)
0.5-1.5mm²
Contact Material
Copper
Terminal Size
6.4mm
Device Type
Heat Shrink QC
Insulation
Nylon
DC Current Rating
10A
IP Rating
IP67
Width
4.8mm
Packaged Dimensions
12.0cm(Length) x 6.4cm(Width) x 1.7cm(Height)
