POWERTECH

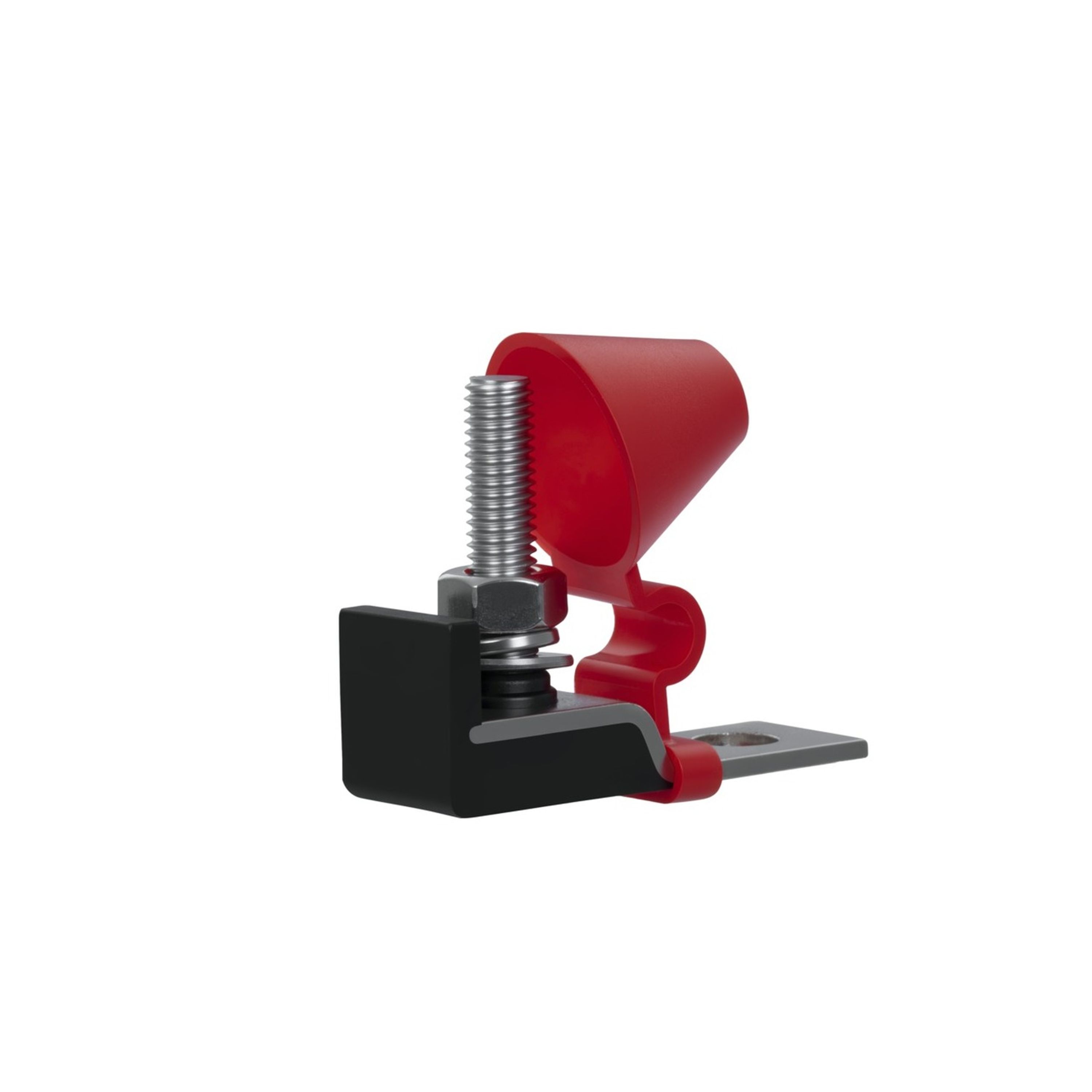

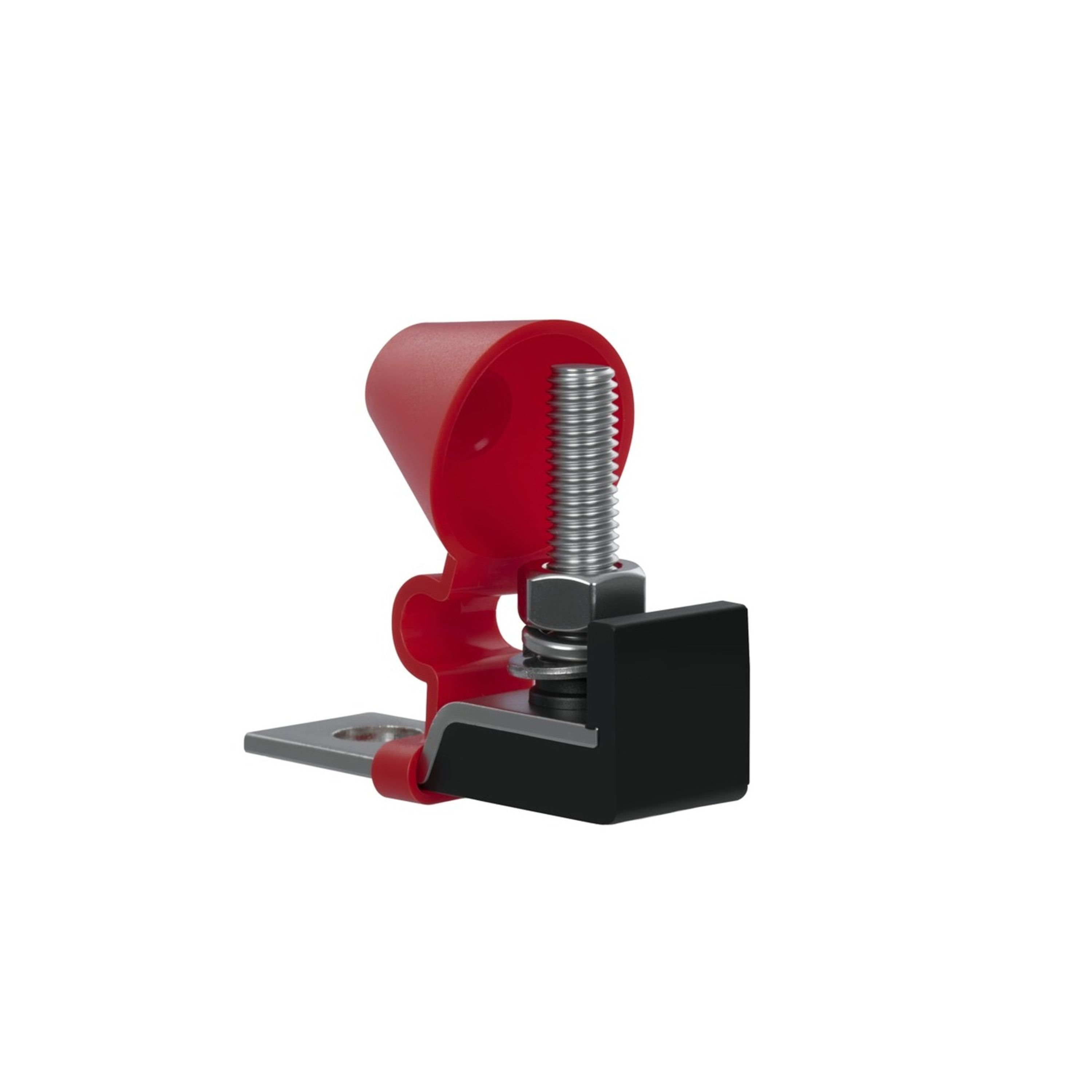

MRBF Terminal Fuse Block
- Cat No:
- SZ2024
Sold as:1 Each
In Stock$24.95
Description
These marine rated battery fuse holders are designed to protect a low voltage electrical system from short circuits or overloads.
It mounts directly to the battery terminal, providing a compact and secure way to fuse the main power connection.
Recommended for use in large systems or in use with lithium batteries for an additional layer of short circuit protection.
- Available in single (SZ2024) & dual output (SZ2026) configurations.
- Requires MRBF fuse - sold separately (SF2050 to SF2059)
Features:
- Suitable for systems up to 48VDC
- Rated up to 300A - M8
- Secure fuse protection in high current installations
Specifications
- Length
- 62.0mm
- Width
- 20.0mm
- Height
- 47.0mm
- Weight
- 0.07kg
- Packaged Dimensions
- 9.3cm(Length) x 6.5cm(Width) x 3.0cm(Height)
