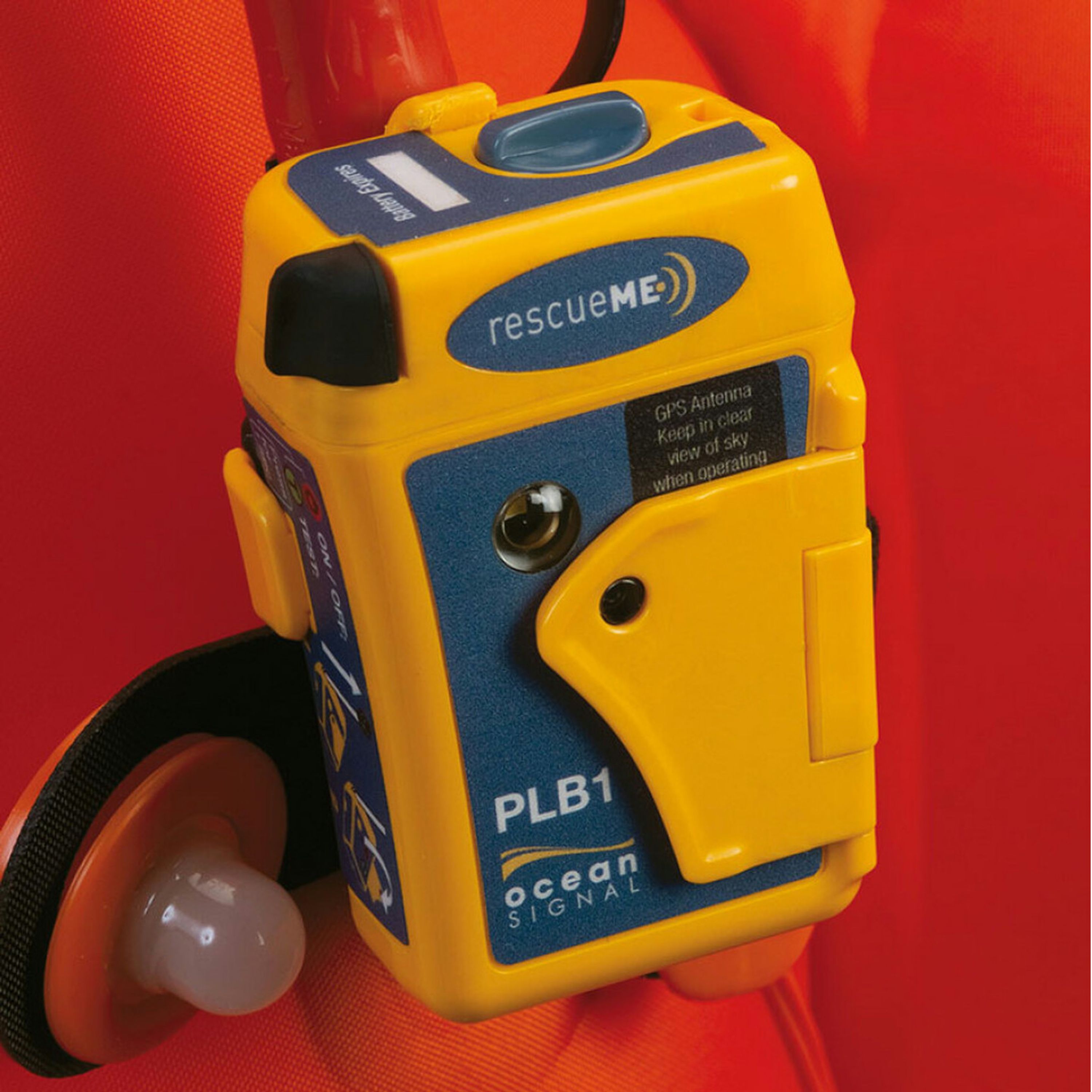

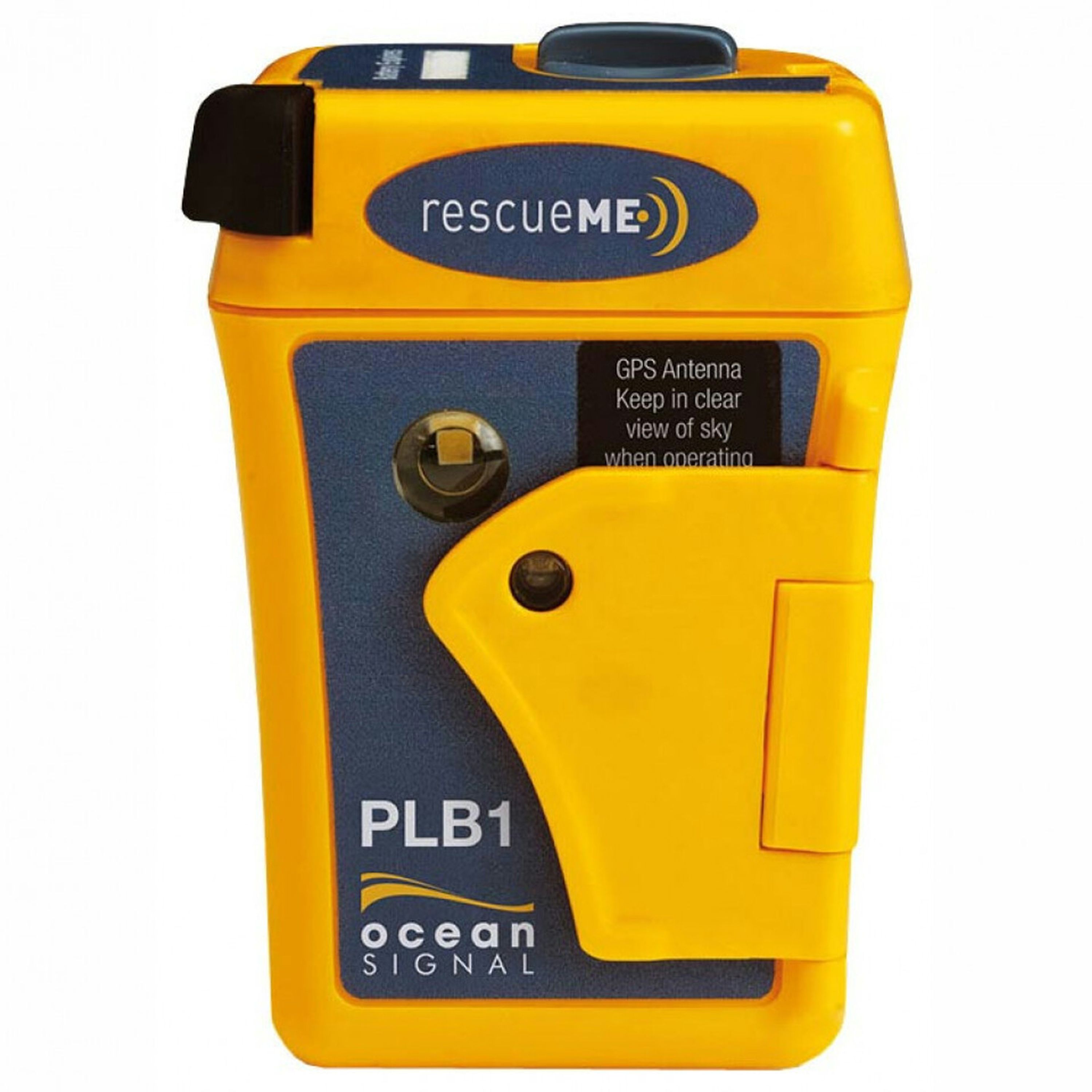

Ocean Signal RescueME Personal Locator Beacon

Wherever you are, at sea, on land, the rescueME PLB1 provides the reassurance that global emergency services can be alerted by the press of a button.

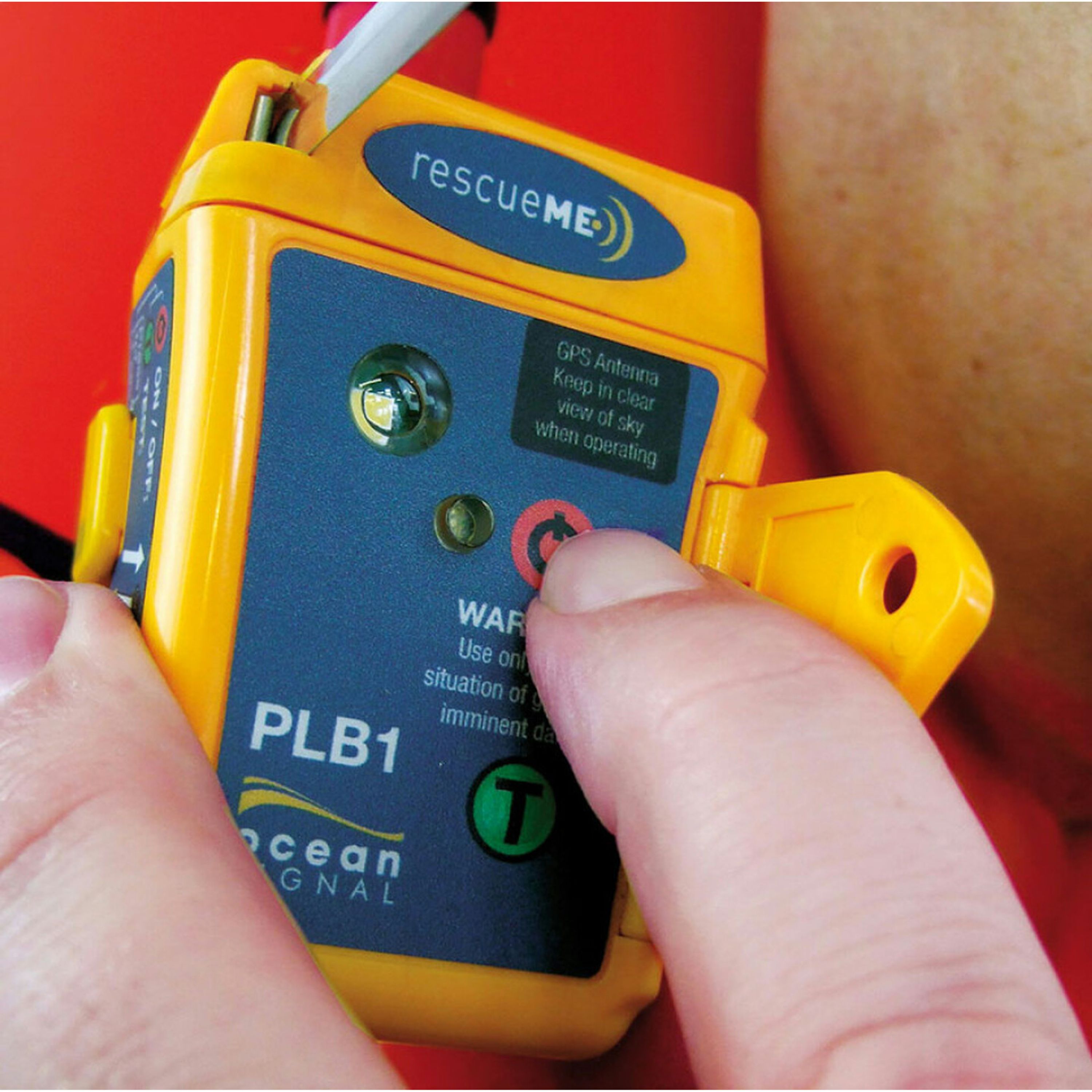

The rescueMe PLB1 can be operated with a single hand in even the most challenging situations.



A simple spring loaded flap covers the activation button preventing inadvertent use.

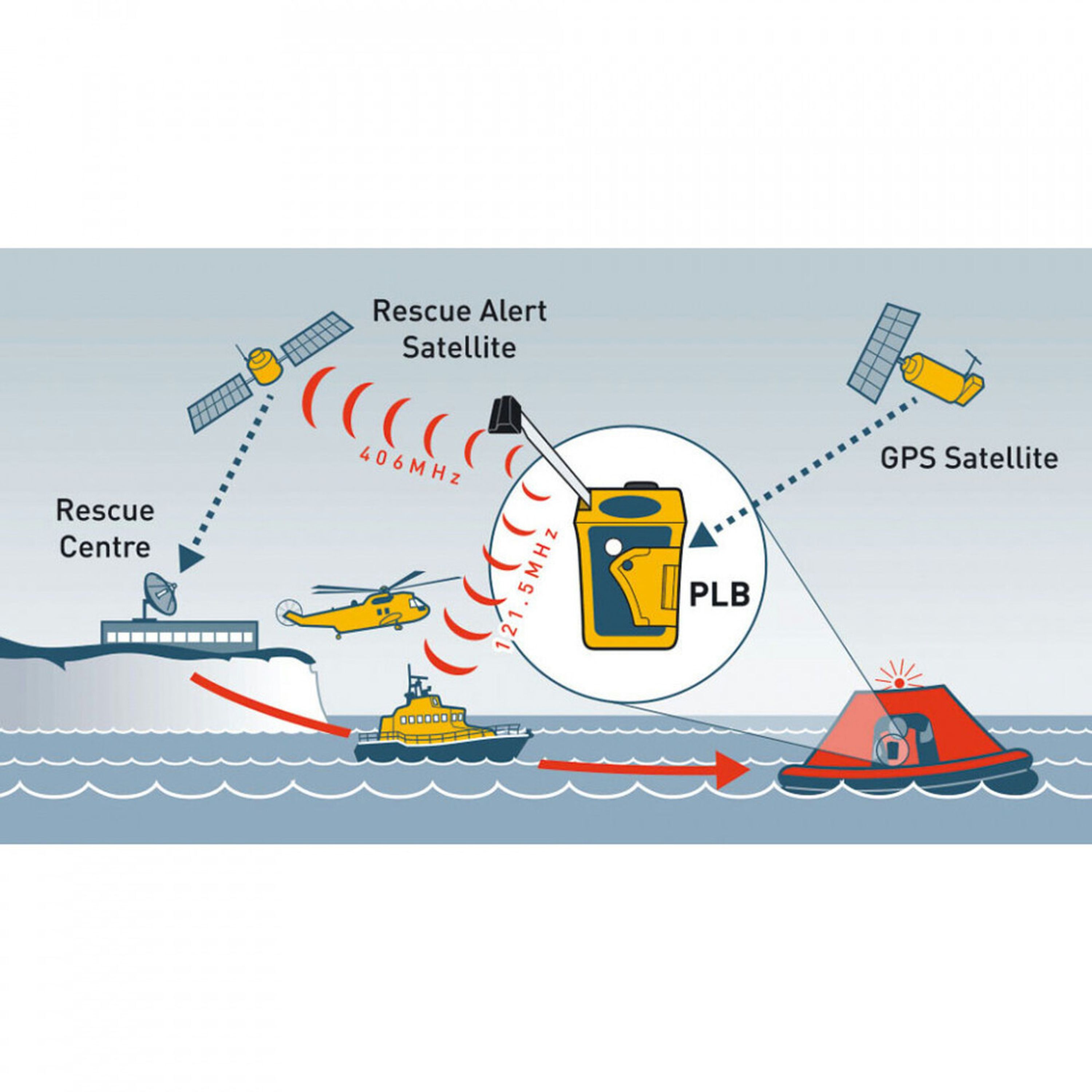

OS-rescueME-PLB-tech-image-01rescueME PLB1 works with the only officially recognised worldwide dedicated search and rescue satellite network (operated by Cospas Sarsat). As this is funded by governments there are NO CHARGES to use this service.



When activated the rescueME PLB1 transmits your position and your ID to a Rescue Coordination Center via satellite link.



Rescue services nearest to your are promptly notified of your emergency and regularly advised of your current location to assist prompt rescue.



406MHz Satellite Transmitter
•Frequency: 406.040MHz
•Tolerance: ±1kHz
•Output Power: 5watts (nominal)
•Stability: 2ppb/100ms
•Modulation: Phase ±1.1radians (peak)
•Emission Designator: 16K0G1D
•Encoding: Bi-phase L
•Data Rate: 400bps
•Duration: 520ms



121.5MHz Homing Beacon
•Frequency: 121.5MHz
•Stability: ±50ppm
•Output Power: 25-100mW PERP
•Modulation: Swept Tone AM
•Emission Designator: 3K20A3X
•Modulation Depth: 85-100%
•Sweep Range: 400Hz – 1300Hz



•Sensitivity Cold Start: -148dBm
•Sensitivity Re-acquisition: -163dBm
•Satellites channels tracked: 60
•GPS Antenna: Microstrip patch

;Low Duty Cycle Strobe Light
•Light Type: High intensity LED
•Output Power: ~1candela



Environmental
•Operating Temperature Range: -20°C to +55°C
•Storage Temperature Range: -30°C to +70°C
•Waterproof: 15metres at +20°C
•Drop: 1metre @ -30°C



Standards
•Cospas-Sarsat: T.001 / T.007
•ETSI: EN302 152
•RTCM: SC11020
•FCC: CFR47 part 95K



Battery
•Type: Lithium Primary
•Chemistry: Manganese Dioxide (LiMnO2)
•Operational Life: >24hours @ -20°C
