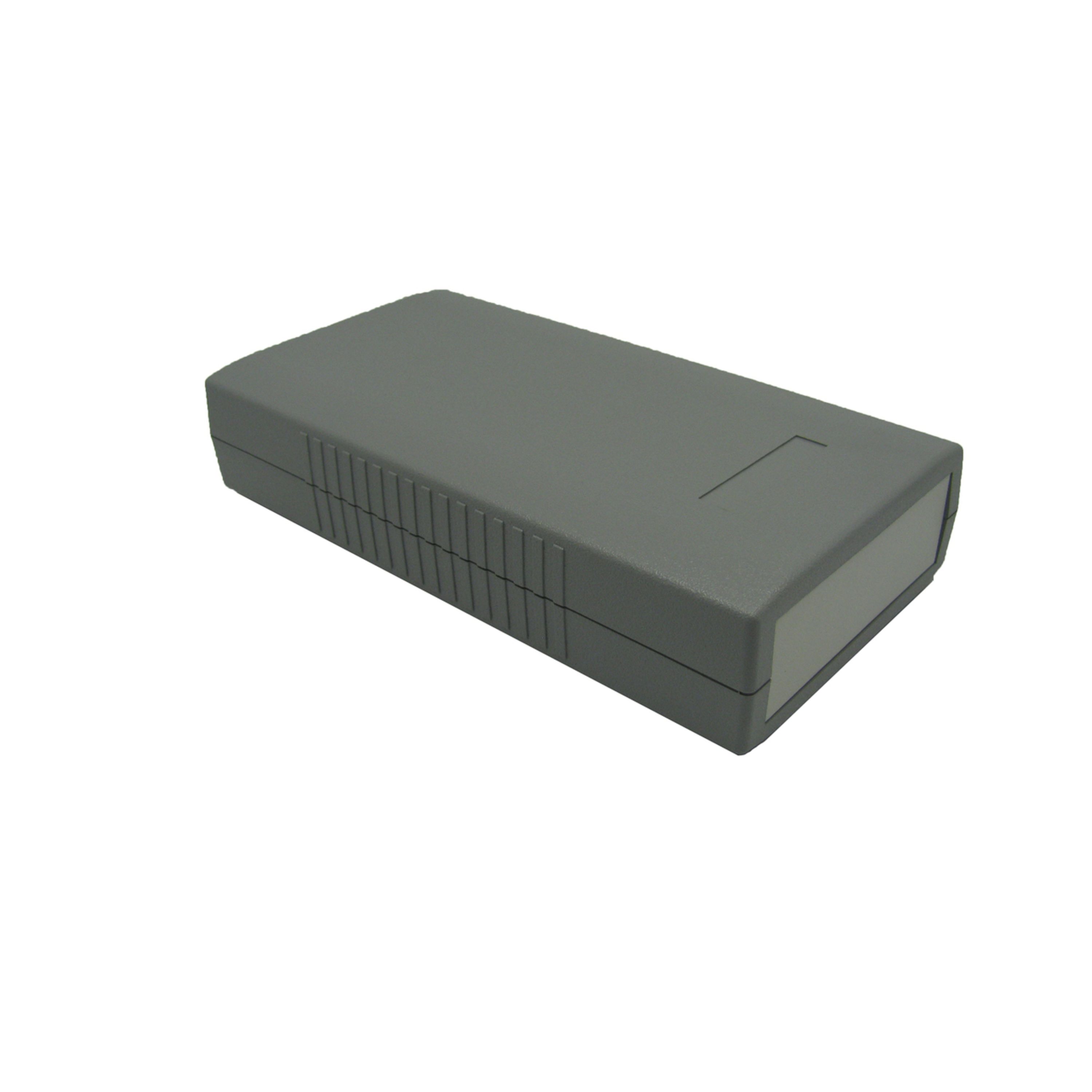

Plastic Molded Enclosure Dark Grey ABS - 190 x 100 x 40mm
- Cat No:
- HB6036
Sold as:1 Each
Out of Stock$21.95
Description
These are available in 2 different materials.
Features:
• High impact ABS with the base and lid moulded in light grey with dark grey end panels
• Flame retardent ABS to UL- 94 VO
• Ideally suited for instrumentation and telecommunication equipment from hand held to lab and desk top
• These cases have a two part design with a tongue and groove joint between the top and bottom of the case, with specially designed end panels of the same material.
• Optional aluminium end panels are available on quantity orders
• The top & bottom is lightly textured which gives a non scratch surface & maintains the high quality finish
• There are guide slots provided for vertical mounting of PCBs
• Bosses are provided for the horizontal mounting of PCBs
• Four M-3 screws hold the case together
Features:
• High impact ABS with the base and lid moulded in light grey with dark grey end panels
• Flame retardent ABS to UL- 94 VO
• Ideally suited for instrumentation and telecommunication equipment from hand held to lab and desk top
• These cases have a two part design with a tongue and groove joint between the top and bottom of the case, with specially designed end panels of the same material.
• Optional aluminium end panels are available on quantity orders
• The top & bottom is lightly textured which gives a non scratch surface & maintains the high quality finish
• There are guide slots provided for vertical mounting of PCBs
• Bosses are provided for the horizontal mounting of PCBs
• Four M-3 screws hold the case together
Specifications
- Material
- ABS Plastic (Acrylonitrile Butadiene Styrene)
- Lid Screws
- 4.0pc
- Colour
- Dark Grey
- Length
- 190.0mm
- Width
- 100.0mm
- Depth
- 40.0mm
- Packaged Dimensions
- 19.1cm(Length) x 10.0cm(Width) x 4.0cm(Height)
