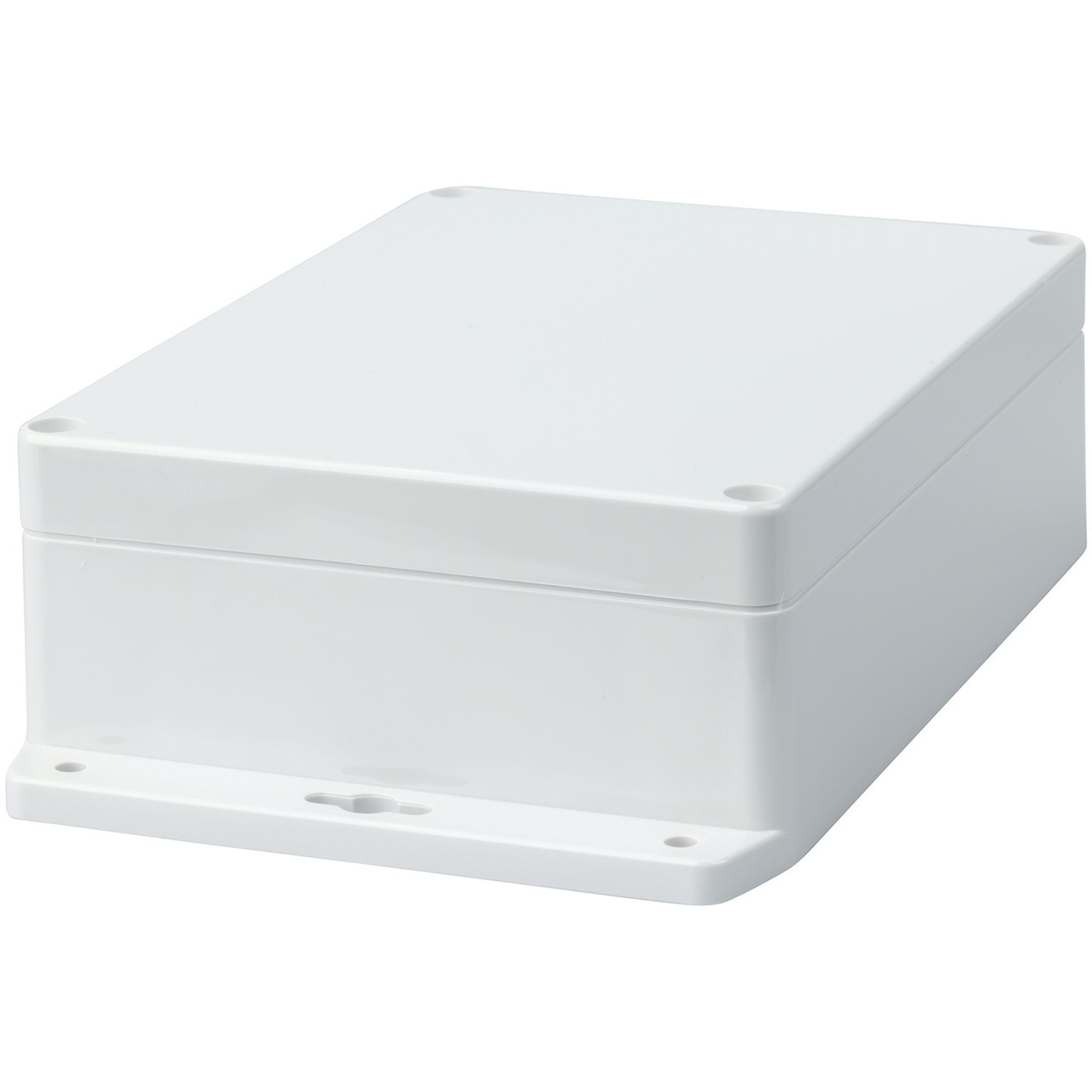

Polycarbonate Enclosure with Mounting Flange - 171(W) x 121(D) x 55(H)mm
- Cat No:
- HB6219
Sold as:1 Each
In Stock$26.95
Description
Features:
• Made with Polycarbonate material
• Moulded in light grey.
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically (not on HB-6230)
• Made with Polycarbonate material
• Moulded in light grey.
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically (not on HB-6230)
Specifications
- Material
- Polycarbonate
- PCB Internal Guide Slots
- true
- Internal Mounting Posts
- true
- Gasket sealing system
- true
- Lid Screws
- 4.0pc
- Ventilation Holes
- false
- Colour
- Light Grey
- IP Rating
- IP65
- Dust/Particle Ingress Protection
- 6 - Dust tight, no ingress of dust
- Liquid/Moisture Ingress Protection
- 5 - Water jets
- Width
- 171.0mm
- Height
- 55.0mm
- Depth
- 121.0mm
- Dimensions details
- Base Dimensions
- Width
- 201.0mm
- Height
- 121.0mm
- Packaged Dimensions
- 20.0cm(Length) x 12.2cm(Width) x 5.6cm(Height)
