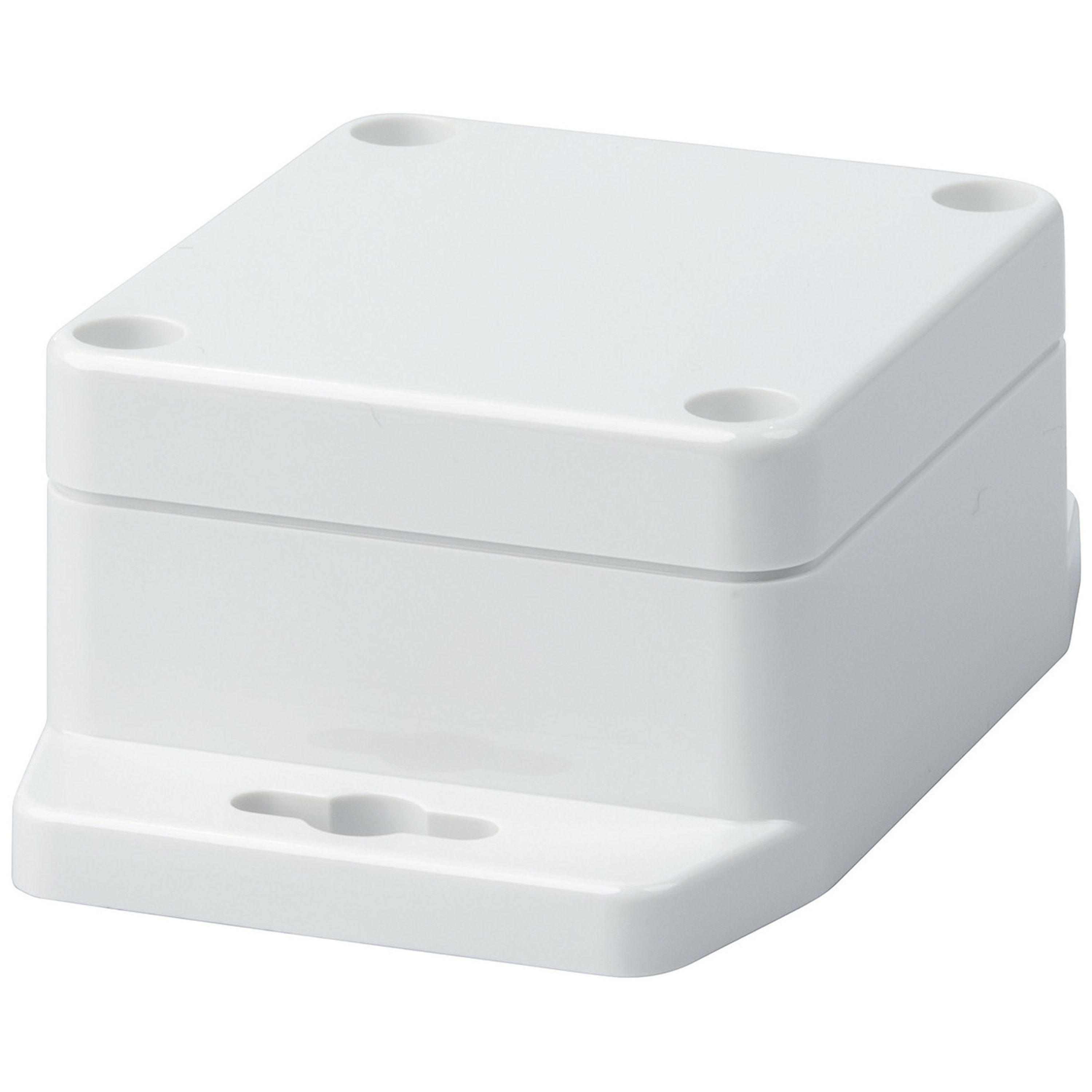

Polycarbonate Enclosure with Mounting Flange (base)
- Cat No:
- HB6211
Out of Stock
$12.95
Description
Features:
• Made with Polycarbonate material
• Moulded in light grey.
• Operating temperature: -40 to +125C

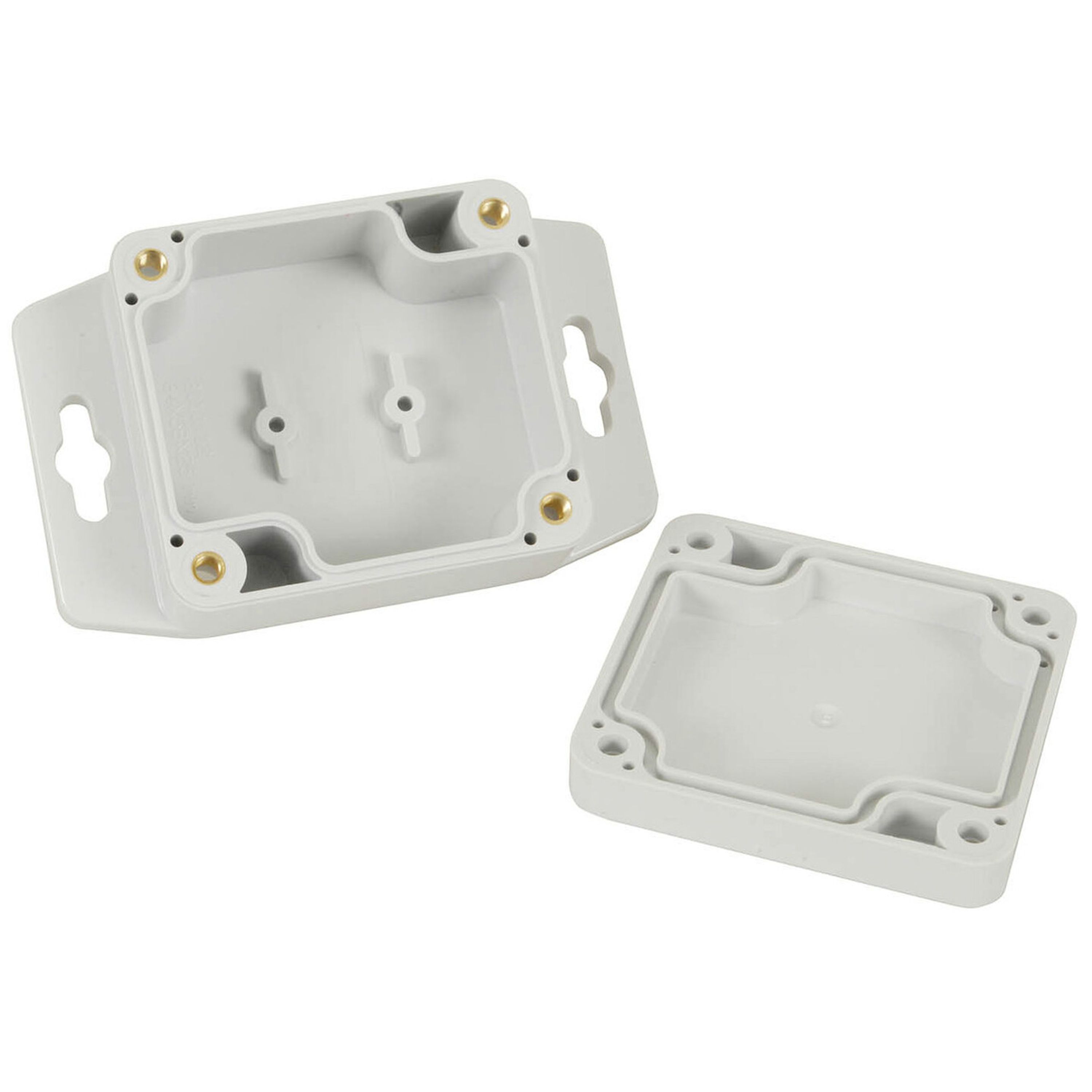

• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically (not on HB-6230)
• Dimensions: 64 x 58 x 35mm
• Made with Polycarbonate material
• Moulded in light grey.
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically (not on HB-6230)
• Dimensions: 64 x 58 x 35mm
Specifications
- Length
- 64.0mm
- Width
- 58.0mm
- Height
- 35.0mm
- Packaged Dimensions
- 10.0cm(Length) x 6.0cm(Width) x 3.5cm(Height)
