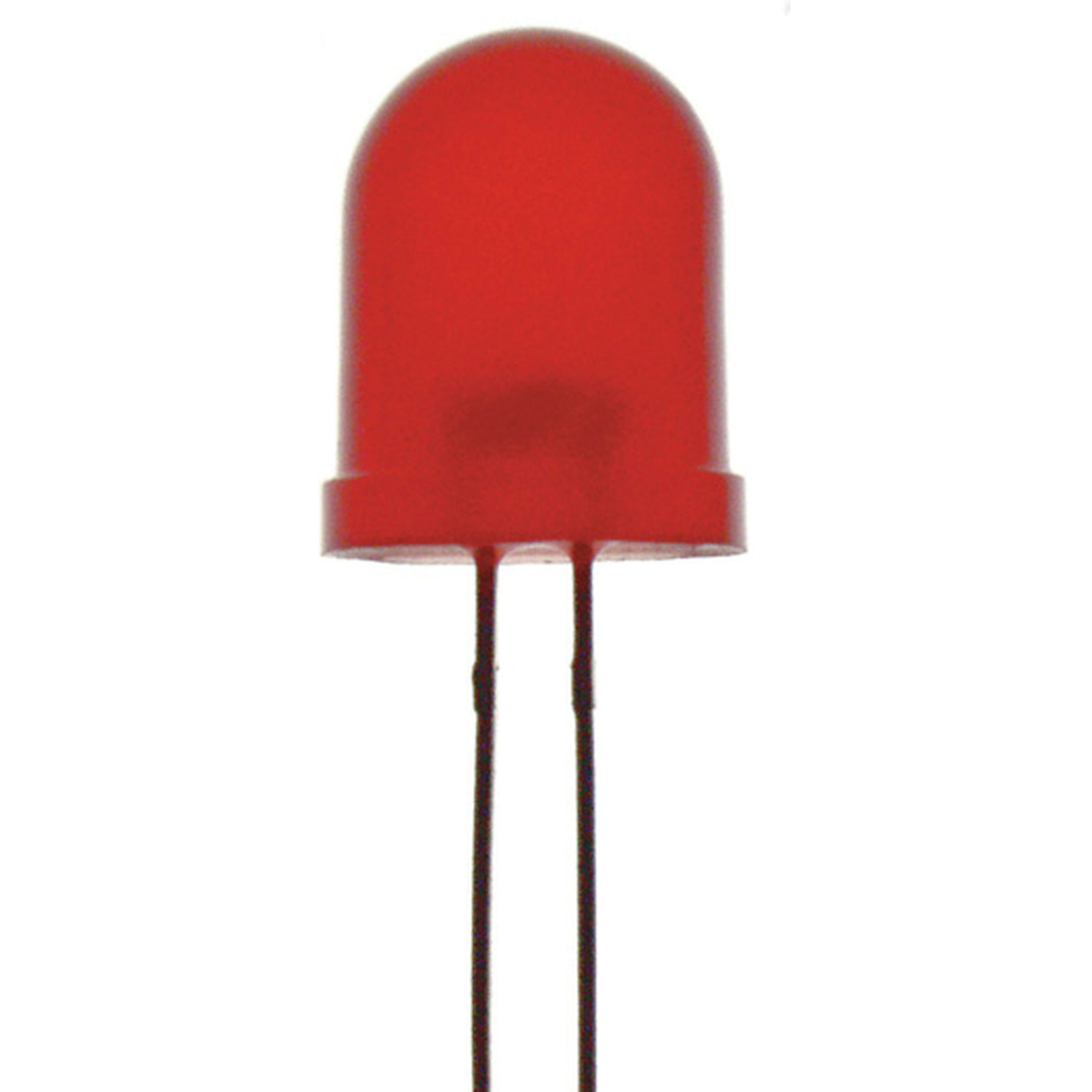

Red 10mm LED 270mcd Round Diffused
- Cat No:
- ZD0203
Sold as:1 Each
In Stock$0.75
Description
Red LED 10mm DIF 270MCD
Specifications
- LED Type
- 10mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- Red
- Light Wavelength
- 630.0nm,630.0nm
- Lens Type
- Diffused
- Viewing Angle
- 60.0°
- Intensity
- 270.0mcd
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 2.0V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- Resistor for 5VDC
- 150.0Ω
- Resistor for 9VDC
- 360.0Ω
- Resistor for 12VDC
- 470.0Ω
- active mount type
- Through Hole
- active connector type
- Solder Legs
- component package
- radial
- active number of legs
- 2.0 count
- Diameter
- 10.0mm
- Packaged Dimensions
- 4.0cm(Length) x 1.0cm(Width) x 1.0cm(Height)
