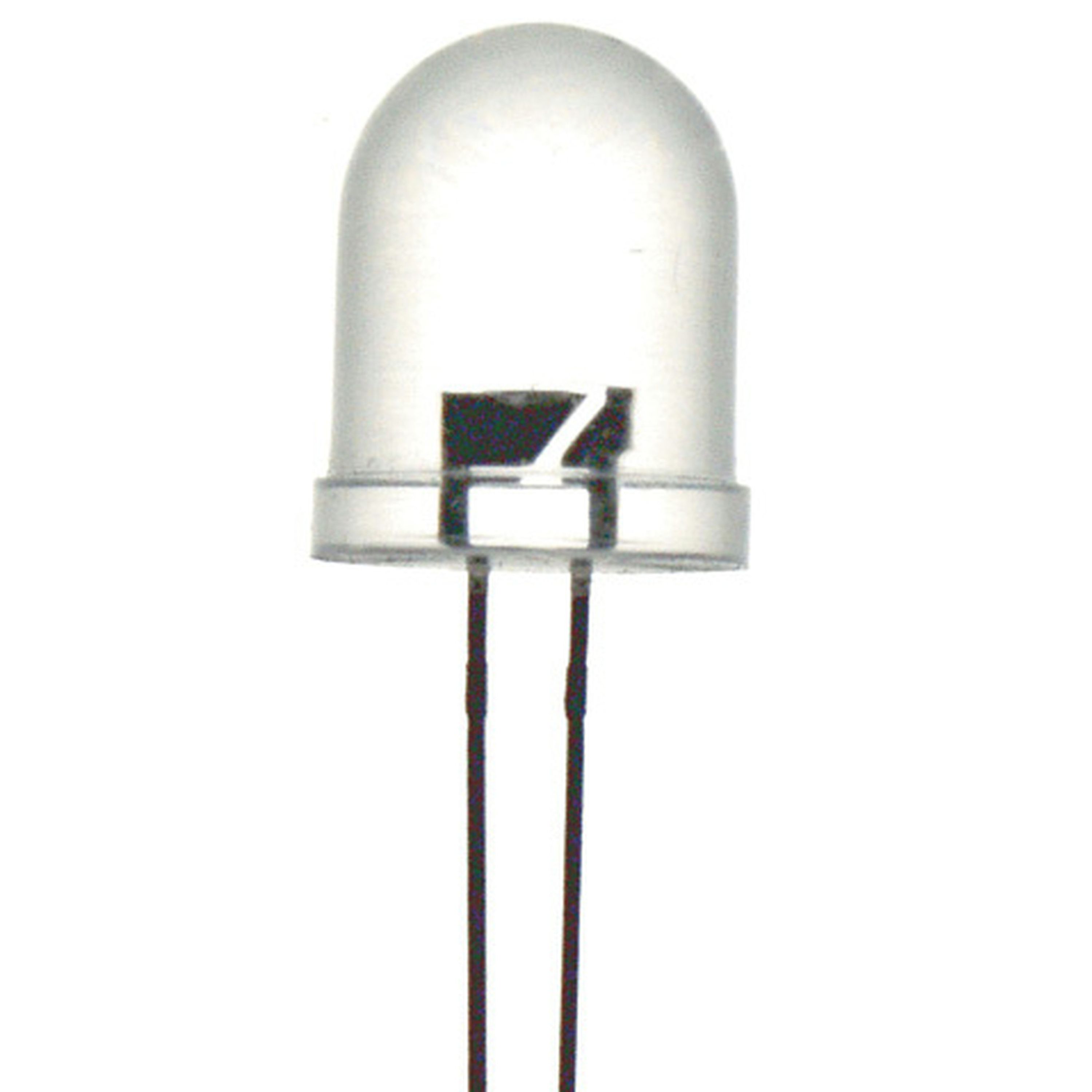

Red 10mm LED 5600mcd Round Clear
- Cat No:
- ZD0201
Sold as:1 Each
In Stock$1.25
Description
Red 10mm LED 5600mcd Round Clear
Specifications
- LED Type
- 10mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- White
- Light Wavelength
- 625.0nm
- Lens Type
- waterclear
- Viewing Angle
- 30.0°
- Intensity
- 2000.0mcd
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 2.0V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 50.0mA
- Resistor for 5VDC
- 150.0Ω
- Resistor for 9VDC
- 360.0Ω
- Resistor for 12VDC
- 510.0Ω
- Diameter
- 10.0mm
- Packaged Dimensions
- 1.0cm(Length) x 1.0cm(Width) x 4.0cm(Height)
