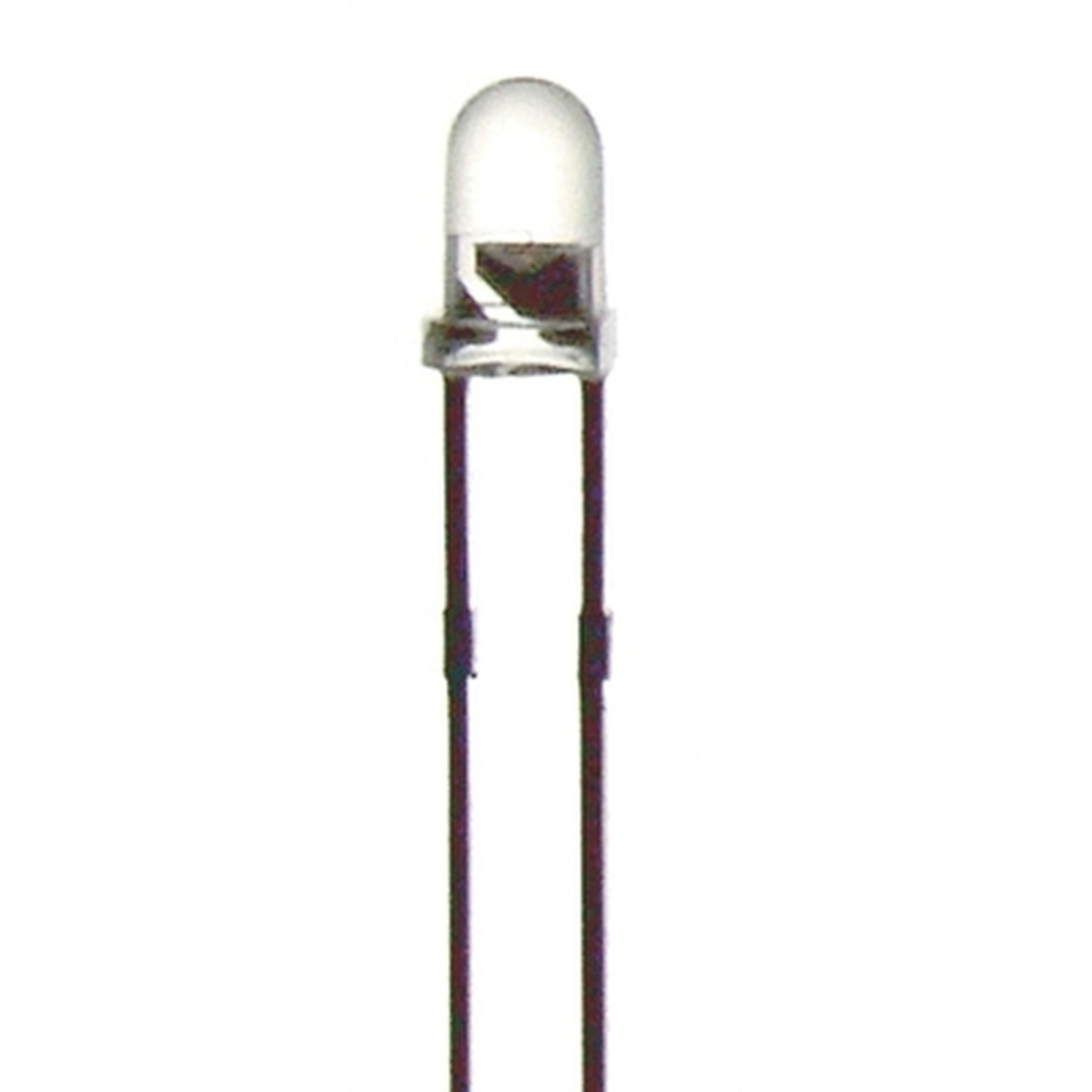

Red 3mm LED 7200mcd Round Clear
- Cat No:
- ZD0106
Sold as:1 Each
In Stock$1.75
Description
Red 3mm LED round clear.
Specifications
- LED Type
- 3mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- Red
- Lens Type
- waterclear
- Light Wavelength
- 625.0nm
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 2.1V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 30.0mA
- Intensity
- 7200.0mcd
- Viewing Angle
- 15.0°
- Resistor for 5VDC
- 150.0Ω
- Resistor for 9VDC
- 360.0Ω
- Resistor for 12VDC
- 510.0Ω
- active connector type
- Solder Legs
- Diameter
- 3.0mm
- Packaged Dimensions
- 3.5cm(Length) x 0.4cm(Width) x 0.4cm(Height)
