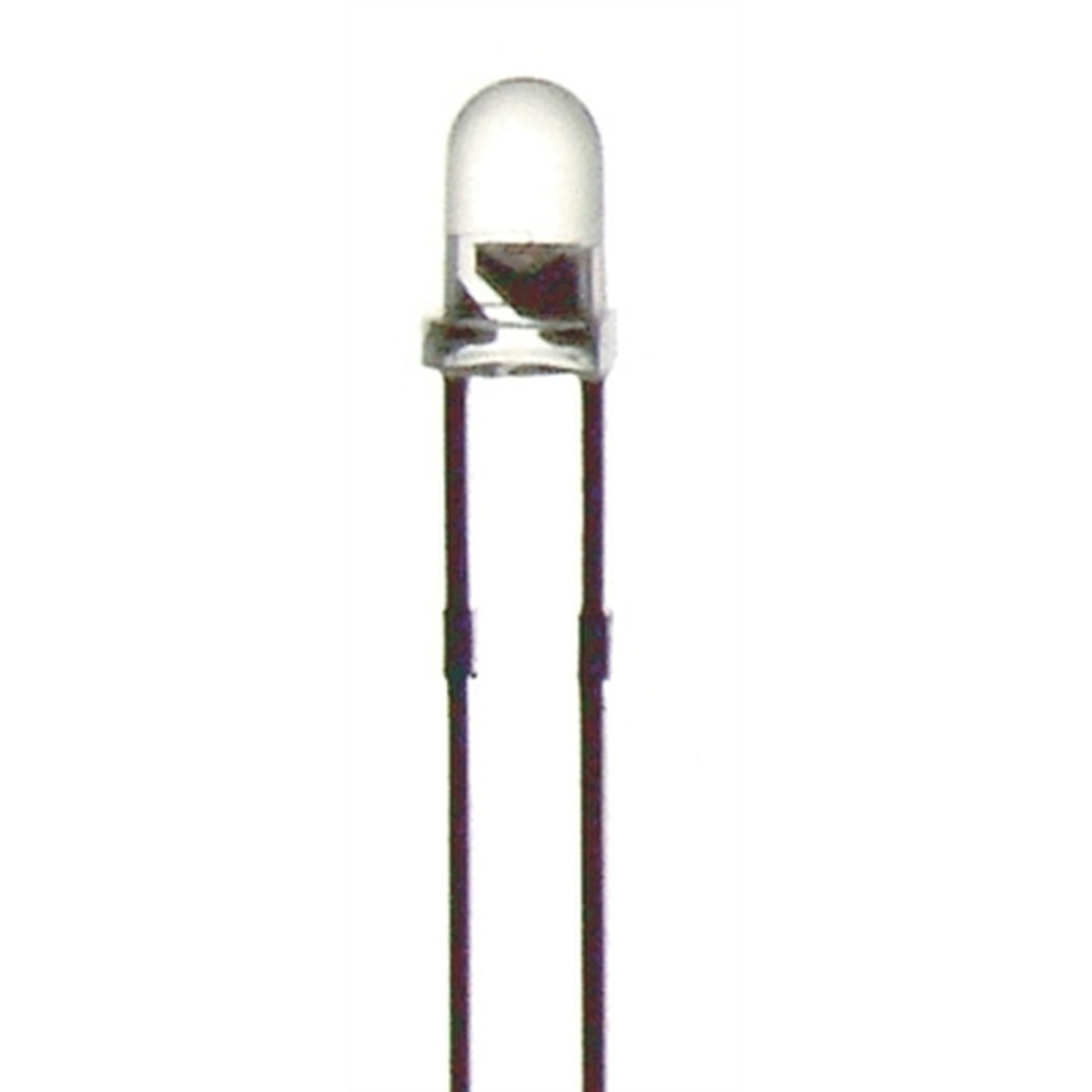

Red 5mm LED 9600mcd Round Clear
- Cat No:
- ZD0156
Sold as:1 Each
In Stock$1.65
Description
Red 5mm LED 9600mCd Round Clear
Specifications
- LED Type
- 5mm Standard LED
- Illumination Type
- Single Colour
- Light Colour
- Red
- Lens Type
- waterclear
- Light Wavelength
- 625.0nm
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 2.1V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 50.0mA
- Intensity
- 10000.0mcd
- Viewing Angle
- 15.0°
- Resistor for 5VDC
- 150.0Ω
- Resistor for 9VDC
- 360.0Ω
- Resistor for 12VDC
- 510.0Ω
- Diameter
- 5.0mm
- Packaged Dimensions
- 0.5cm(Length) x 0.5cm(Width) x 3.7cm(Height)
