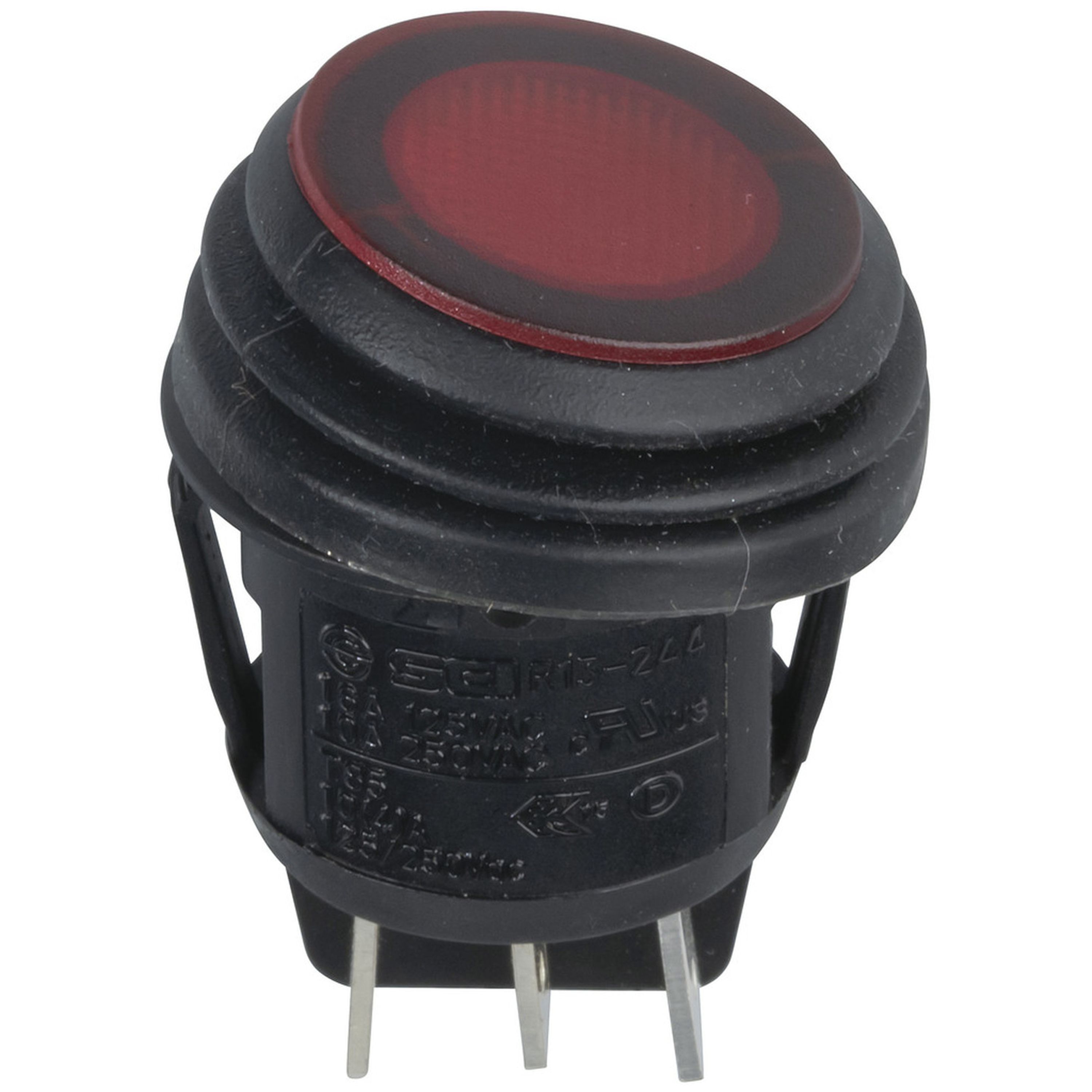

Round IP65 Rated Rocker Switch DPDT 250VAC 10A
- Cat No:
- SK0967
Sold as:1 Each
In Stock$9.95
Description
DPDT round rocker switches with mini spade QC lugs. Sealed with a rubber boot and IP65 rated.
Two types available:
Black: SK-0966
Red (illuminated): SK-0967
Two types available:
Black: SK-0966
Red (illuminated): SK-0967
Specifications
- Switch Type
- Rocker
- Switch Function
- Locking On/Off
- Mechanism Material
- Plastic
- Switch Connection
- Spade Terminals
- Switch Colour Coded
- Red
- AC Voltage Rating
- 250V
- AC Current Rating
- 10A
- Nominal Voltage
- 240V
- Illumination Colour
- Red
- LED Connection
- Hard Wired
- LED Type
- Neon
- Illumination Position
- Actuator
- Dust/Particle Ingress Protection
- 6 - Dust tight, no ingress of dust
- Liquid/Moisture Ingress Protection
- 5 - Water jets
- Height
- 35.2mm
- Diameter
- 25.0mm
- Switch Type
- Rocker
- Pole Throw Type
- DPDT
- Poles / Contacts
- 2.0 pole
- Throws / Positions
- 2.0pos
- Switch Function
- Locking On/Off
- Switch Connection
- Spade Terminals
- Switch Colour Coded
- Black
- Contact Resistance
- 50.0mΩ
- Dielectric Strength
- 1500.0V
- Mechanism Material
- Plastic
- AC Voltage rating
- 250.0V
- AC current rating
- 10.0A
- Illumination Colour
- Red
- Packaged Dimensions
- 5.0cm(Length) x 7.0cm(Width) x 2.5cm(Height)
