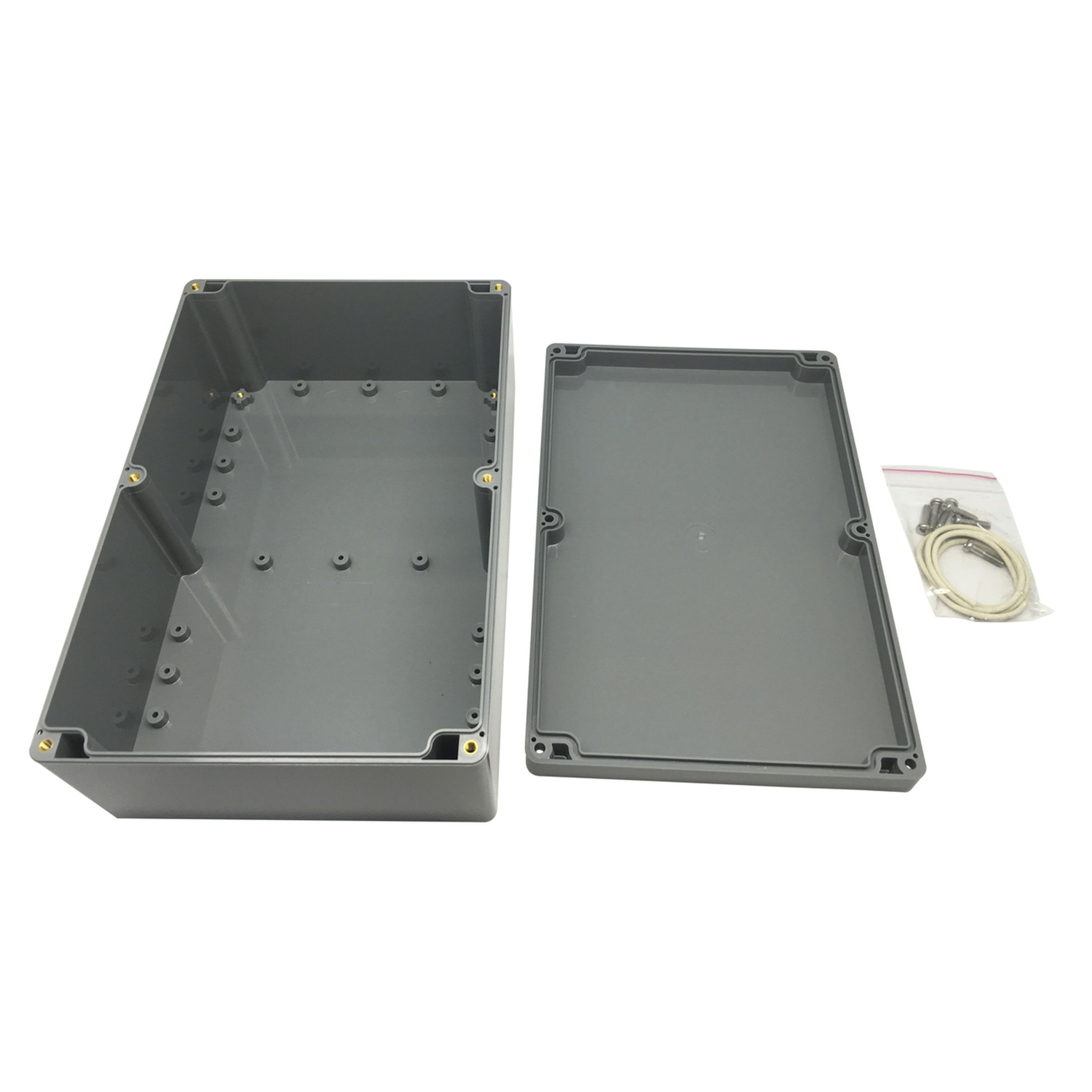

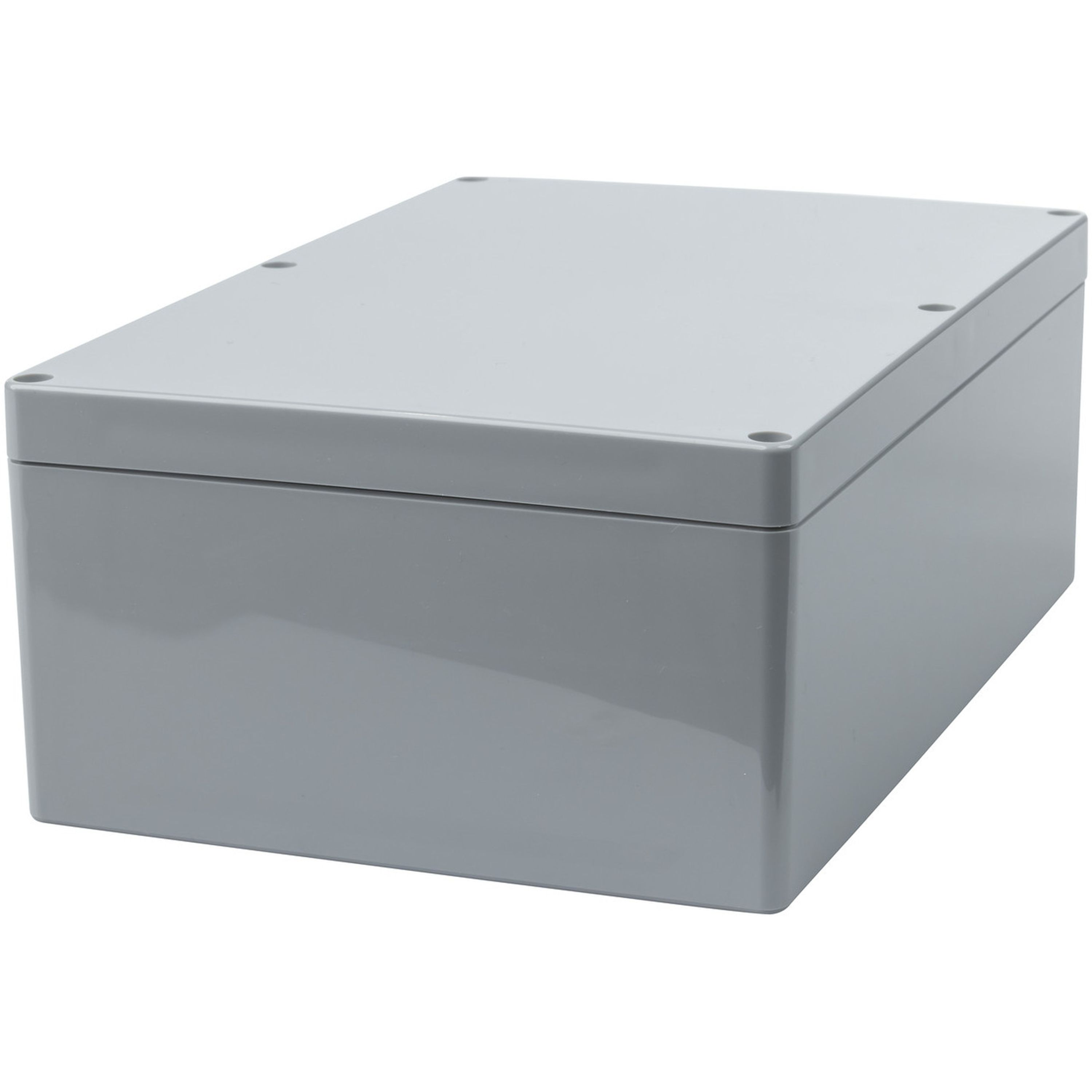

Sealed ABS Enclosure - 240 x 160 x 90mm
- Cat No:
- HB6134
Sold as:1 Each
In Stock$41.95
Description
Features:
- Operating temperature: -20 to 100 degrees
- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
- The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
Specifications
- Material
- ABS Plastic (Acrylonitrile Butadiene Styrene)
- PCB Internal Guide Slots
- true
- Internal Mounting Posts
- true
- Gasket sealing system
- true
- Lid Screws
- 6.0pc
- Ventilation Holes
- false
- Colour
- Dark Grey
- IP Rating
- IP65
- Dust/Particle Ingress Protection
- 6 - Dust tight, no ingress of dust
- Liquid/Moisture Ingress Protection
- 5 - Water jets
- Width
- 240.0mm
- Height
- 90.0mm
- Depth
- 160.0mm
- Packaged Dimensions
- 23.9cm(Length) x 16.0cm(Width) x 9.2cm(Height)
