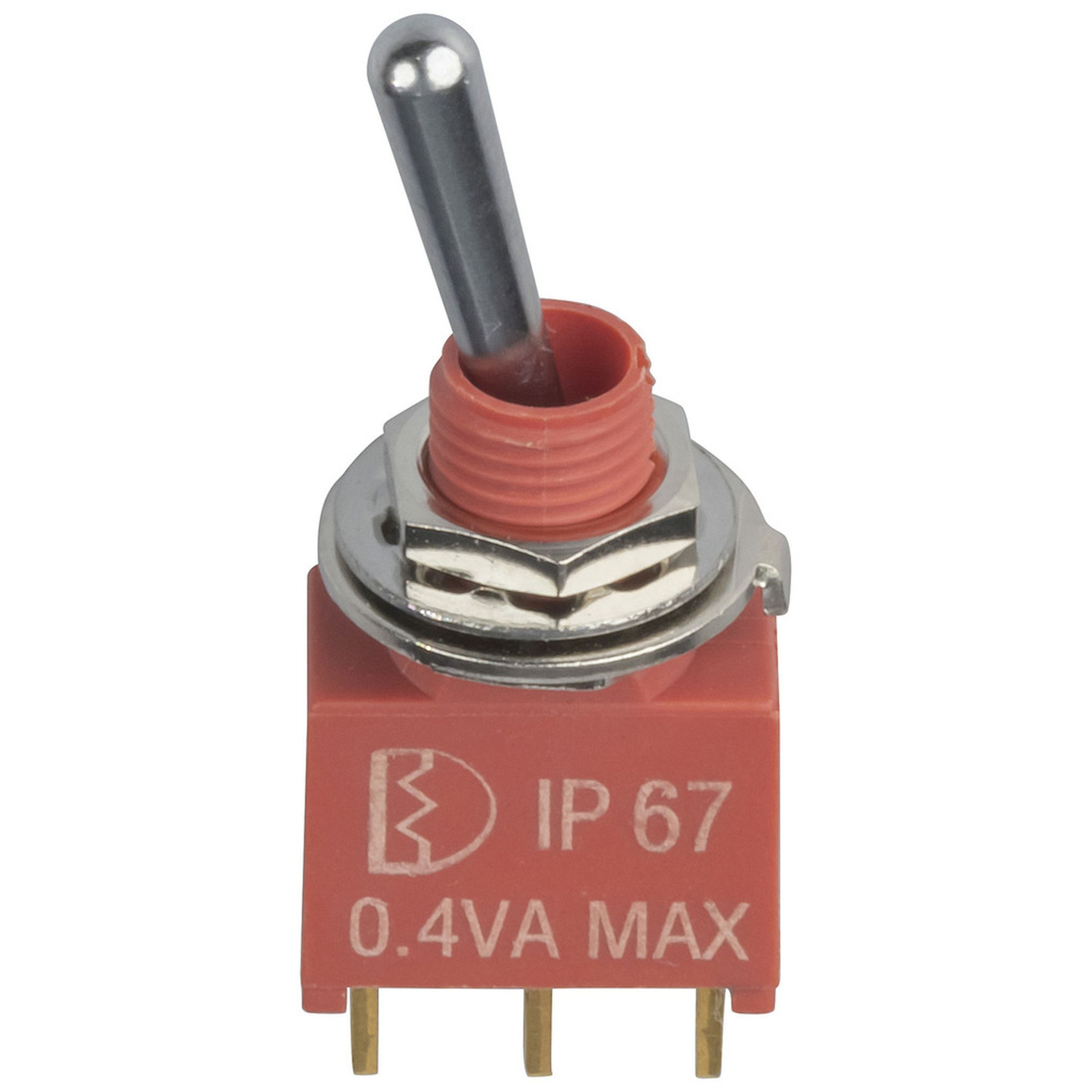

Sealed Mini Toggle Switch 2A 250VAC
- Cat No:
- ST0554
Sold as:1 Each
In Stock$5.95
Description
Ideal for use in wet or moist areas. Splash proof 1PS4 rated.
Specifications
- IP Rating certificate
- true
- Switch Type
- Toggle
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 2.0 pos
- Switch Function
- ON-ON
- Contact Resistance
- 10mΩ
- Insulation Resistance
- 1000MΩ
- Dielectric Strength
- 1000V
- Mechanism Material
- Brass/Plastic
- DC Voltage Rating
- 28.0V
- DC Current Rating
- 3.0A
- Cycle Life
- 40000.0
- Actuator Length
- 10.41mm
- Actuator Width
- 2.54mm
- Switch Type
- Toggle
- Pole Throw Type
- SPDT
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0pos
- Cycle Life
- 40000.0 cycles
- Contact Resistance
- 10.0MΩ
- Insulation Resistance
- 1000.0MΩ
- Dielectric Strength
- 1000.0V
- Actuator Length
- 10.6mm
- Actuator Width
- 12.7mm
- AC Voltage rating
- 250.0V
- AC current rating
- 2.0A
- Packaged Dimensions
- 2.7cm(Length) x 1.2cm(Width) x 1.2cm(Height)
