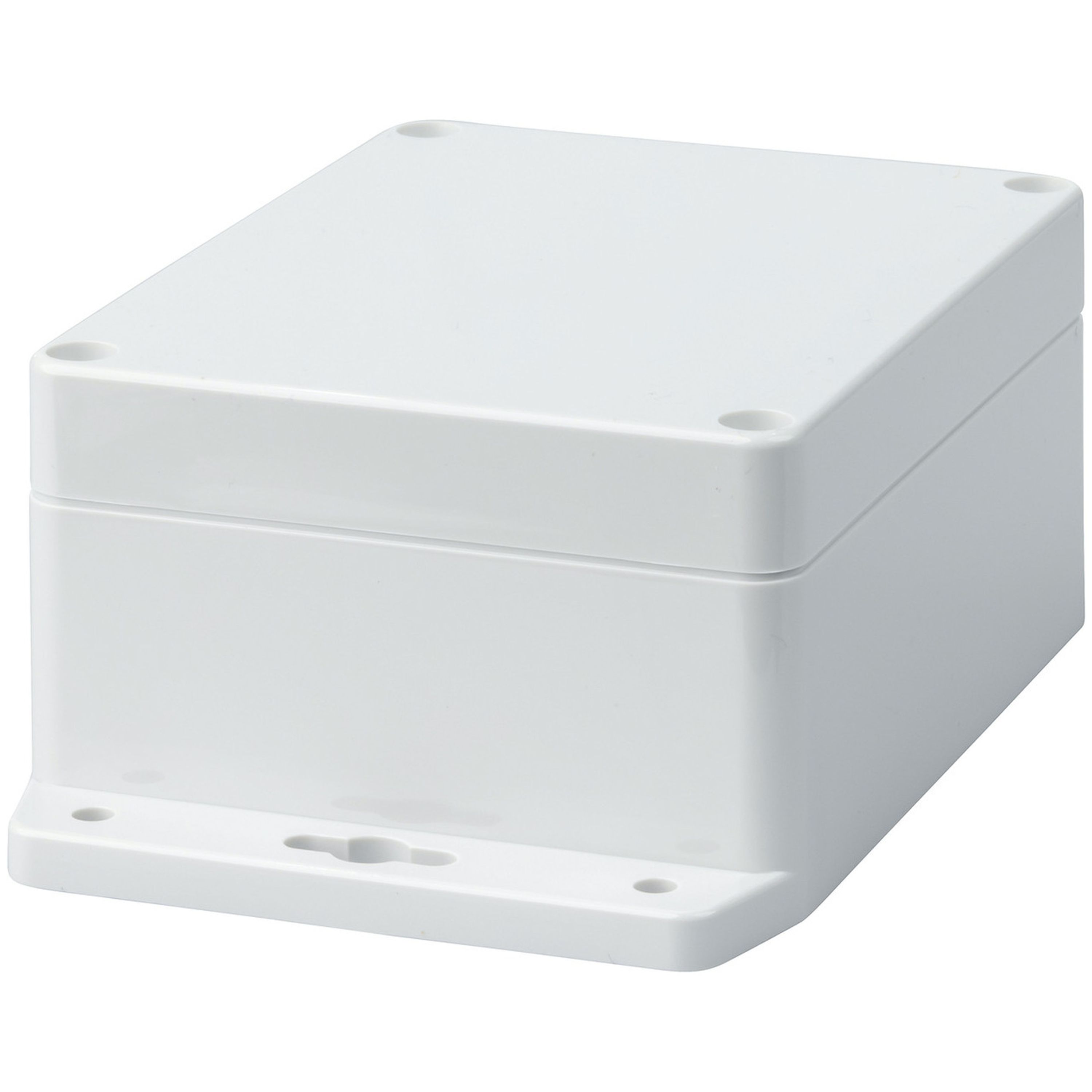

Sealed Polycarbonate Enclosure 115 x 90 x 55
- Cat No:
- HB6217
Sold as:1 Each
In Stock$19.95
Description
Features:
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
Specifications
- Material
- Polycarbonate
- PCB Internal Guide Slots
- true
- Internal Mounting Posts
- true
- Gasket sealing system
- true
- Lid Screws
- 4.0pc
- Ventilation Holes
- false
- Colour
- Light Grey
- IP Rating
- IP65
- Dust/Particle Ingress Protection
- 6 - Dust tight, no ingress of dust
- Liquid/Moisture Ingress Protection
- 5 - Water jets
- Width
- 115.0mm
- Height
- 55.0mm
- Depth
- 90.0mm
- Dimensions details
- Base Dimensions
- Width
- 145.0mm
- Depth
- 90.0mm
- Packaged Dimensions
- 14.5cm(Length) x 9.2cm(Width) x 5.5cm(Height)
