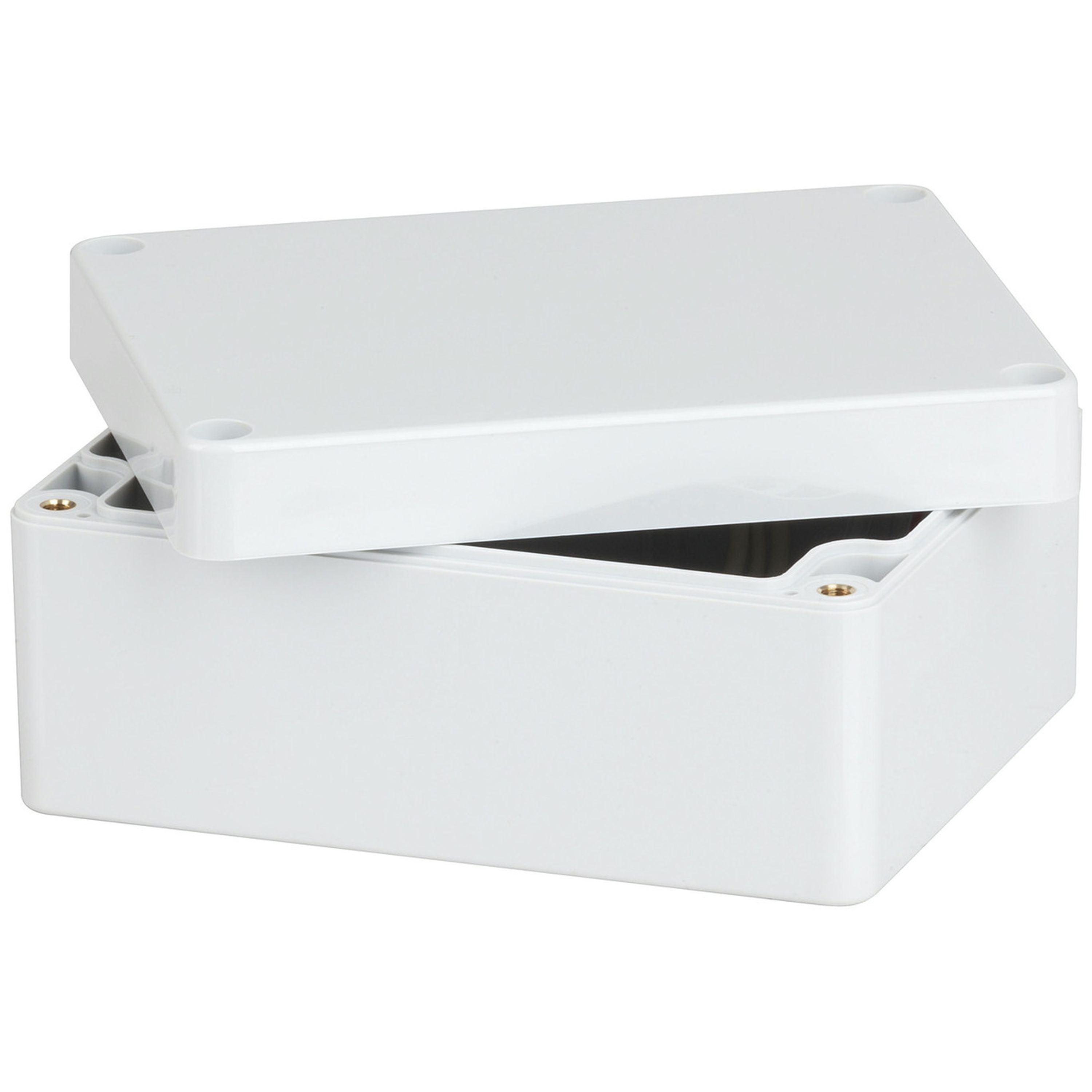

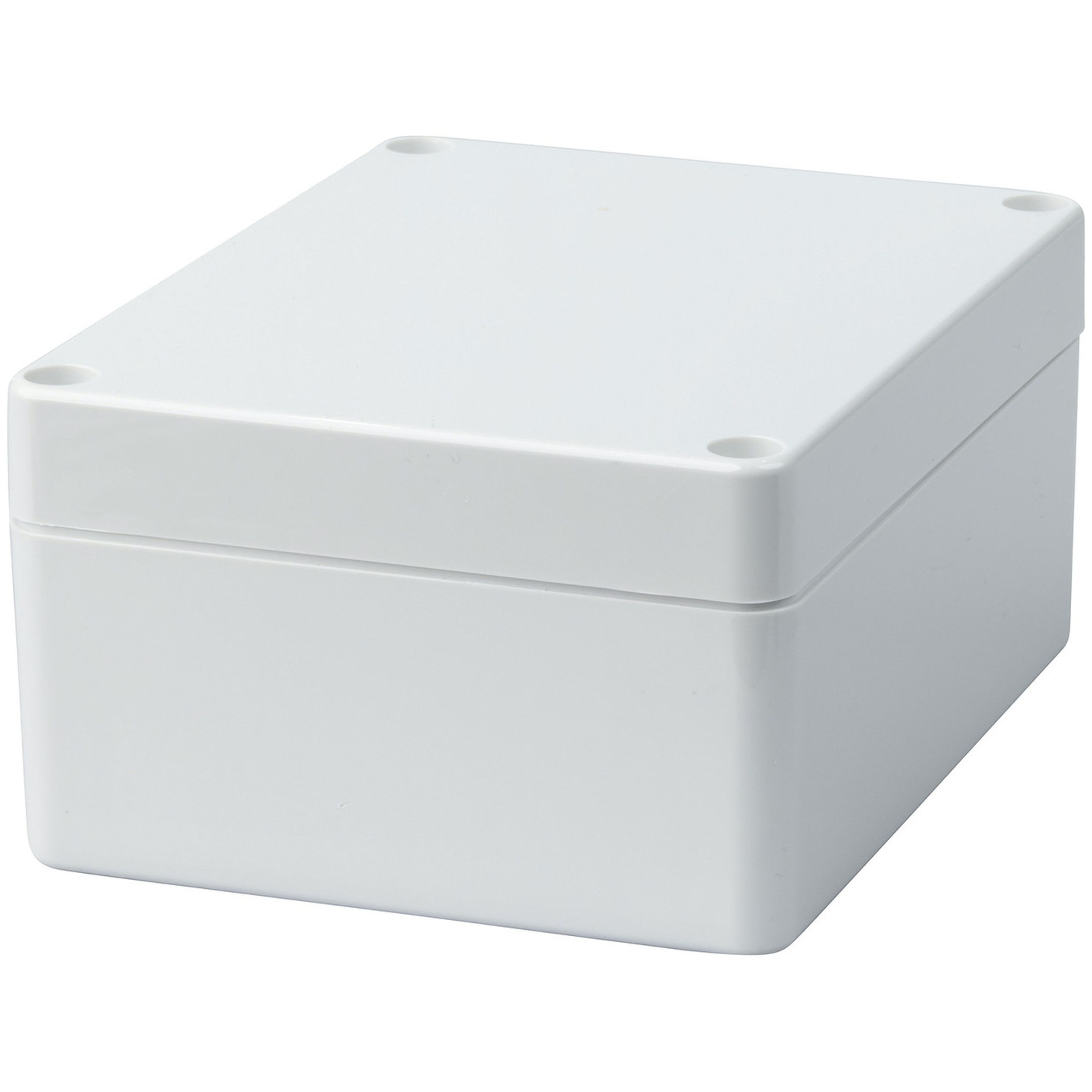

Sealed Polycarbonate Enclosure 115 x 90 x 55mm
- Cat No:
- HB6216
In Stock
$17.95
Description
Features:
• Made with Polycarbonate material and moulded in light grey.
• Operating temperature : minus 40C to 125C
• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
• Designed to IP65 of IEC 529and NEMA 4 (dust and hoseproof)

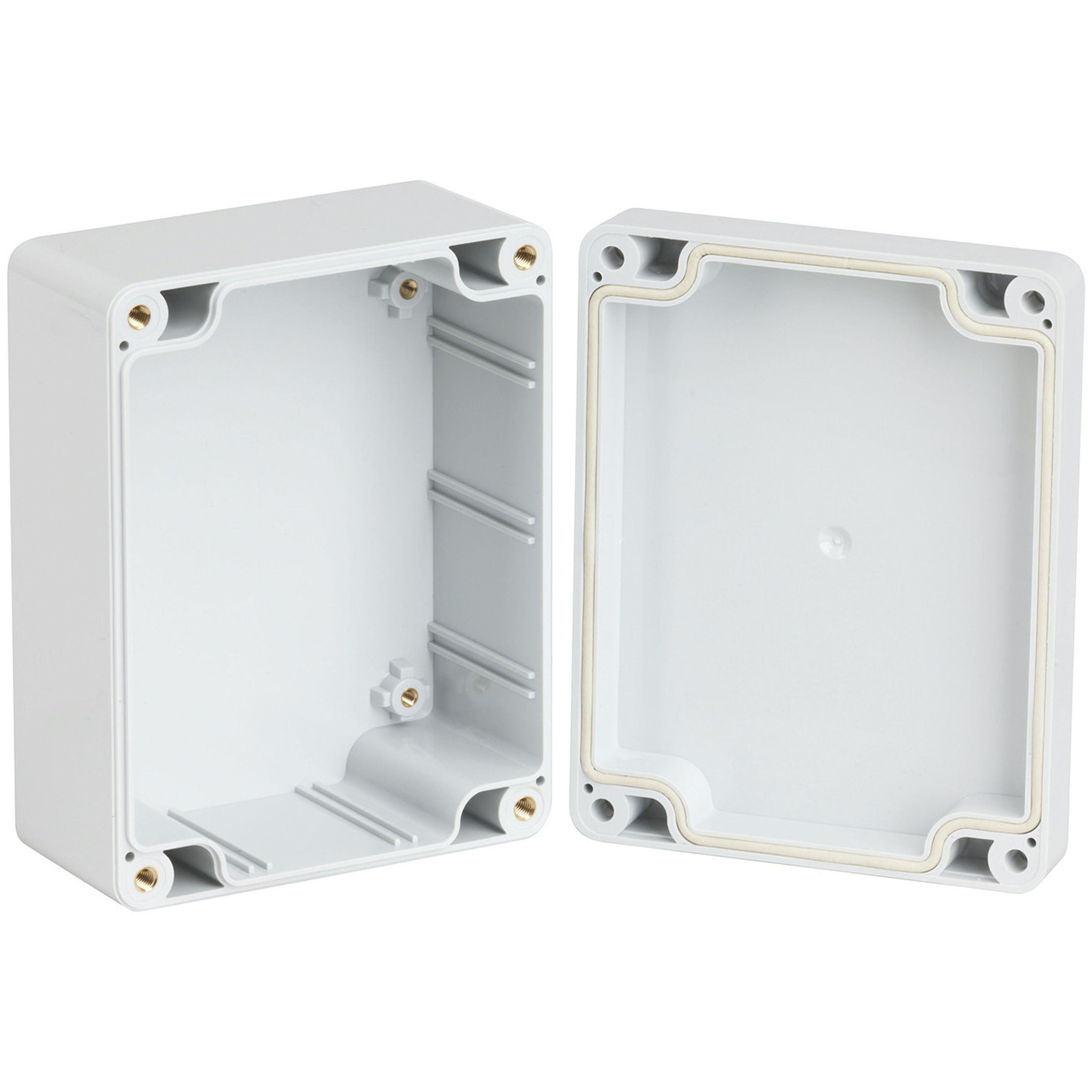

• Internal guide slots for mounting PCB assemblies vertically
• External mounting plate (4pcs) made of thermoplastic are available as an option
• External hinge kit (2pcs) made of thermoplastic are available as an option.
Specifications
- Material
- Polycarbonate
- PCB Internal Guide Slots
- true
- Internal Mounting Posts
- true
- Colour
- Light Grey
- IP Rating
- IP65
- Dust/Particle Ingress Protection
- 6 - Dust tight, no ingress of dust
- Liquid/Moisture Ingress Protection
- 5 - Water jets
- Width
- 115.0mm
- Height
- 90.0mm
- Depth
- 55.0mm
- Packaged Dimensions
- 13.2cm(Length) x 10.5cm(Width) x 5.7cm(Height)
