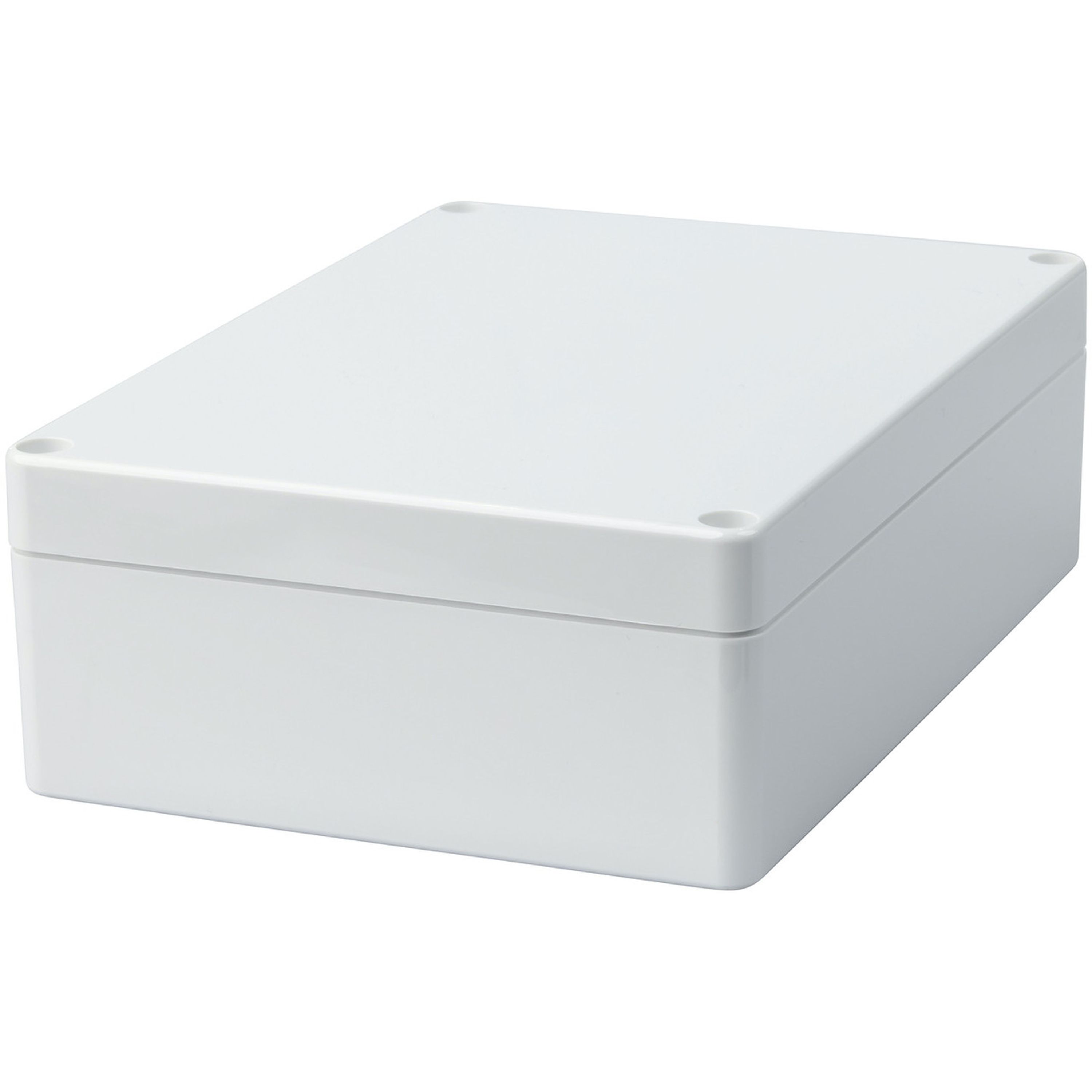

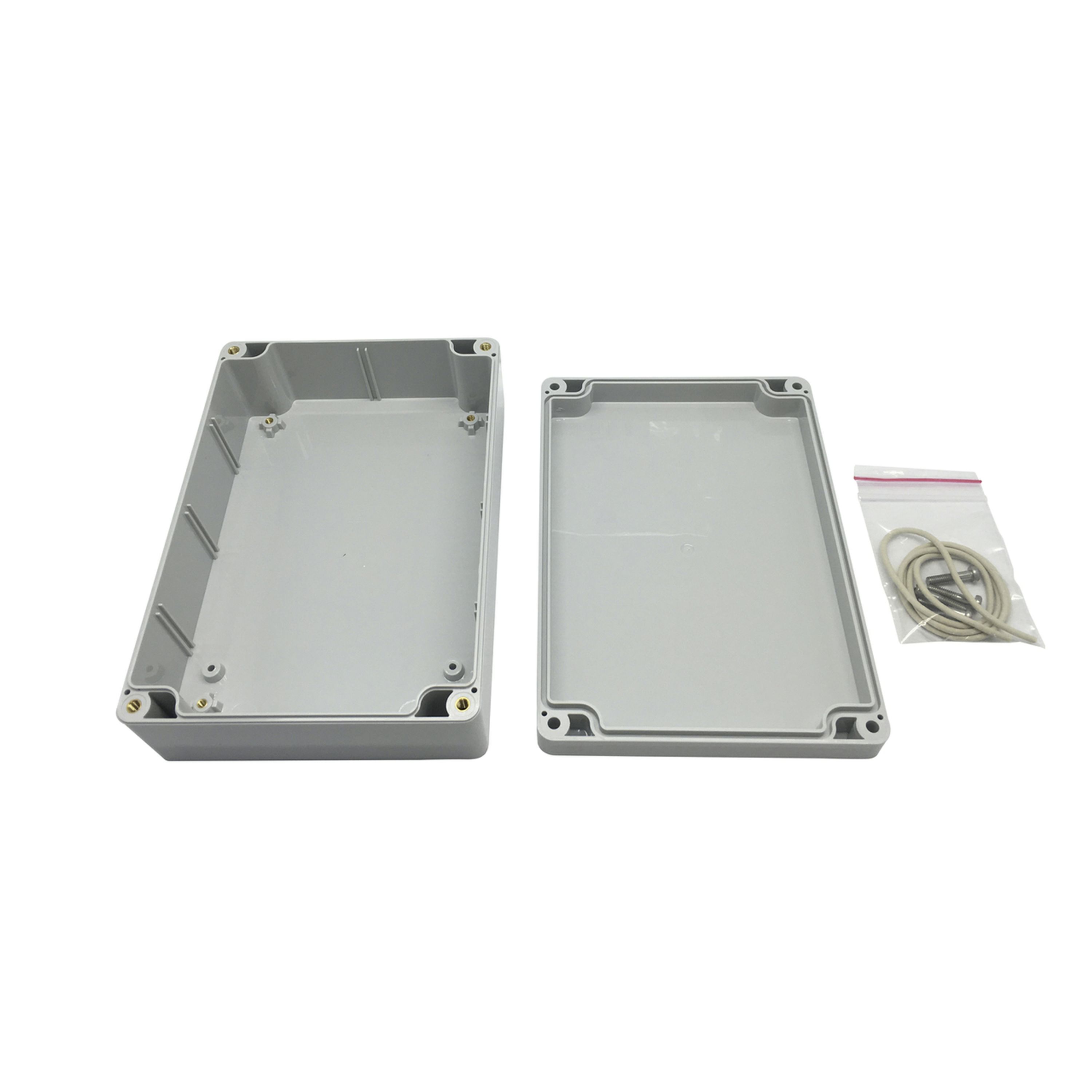

Sealed Polycarbonate Enclosure 171 x 121 x 55
- Cat No:
- HB6218
Sold as:1 Each
Carton size:50
In Stock$24.95
Description
Features:
• Made with Polycarbonate material and moulded in light grey. (SEE HB-6248 for clear lid model)
• Operating temperature : minus 40C to 125C
• The lid and base incorporate a toungue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
• External hinge kit (2pcs) made of thermoplastic are available as an option.
• Made with Polycarbonate material and moulded in light grey. (SEE HB-6248 for clear lid model)
• Operating temperature : minus 40C to 125C
• The lid and base incorporate a toungue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
• External hinge kit (2pcs) made of thermoplastic are available as an option.
Specifications
- Material
- Polycarbonate
- PCB Internal Guide Slots
- true
- Internal Mounting Posts
- true
- Gasket sealing system
- true
- Lid Screws
- 4.0pc
- Ventilation Holes
- false
- Colour
- Light Grey
- IP Rating
- IP65
- Dust/Particle Ingress Protection
- 6 - Dust tight, no ingress of dust
- Liquid/Moisture Ingress Protection
- 5 - Water jets
- Length
- 171.0mm
- Width
- 121.0mm
- Height
- 55.0mm
- Packaged Dimensions
- 18.1cm(Length) x 14.1cm(Width) x 6.3cm(Height)
