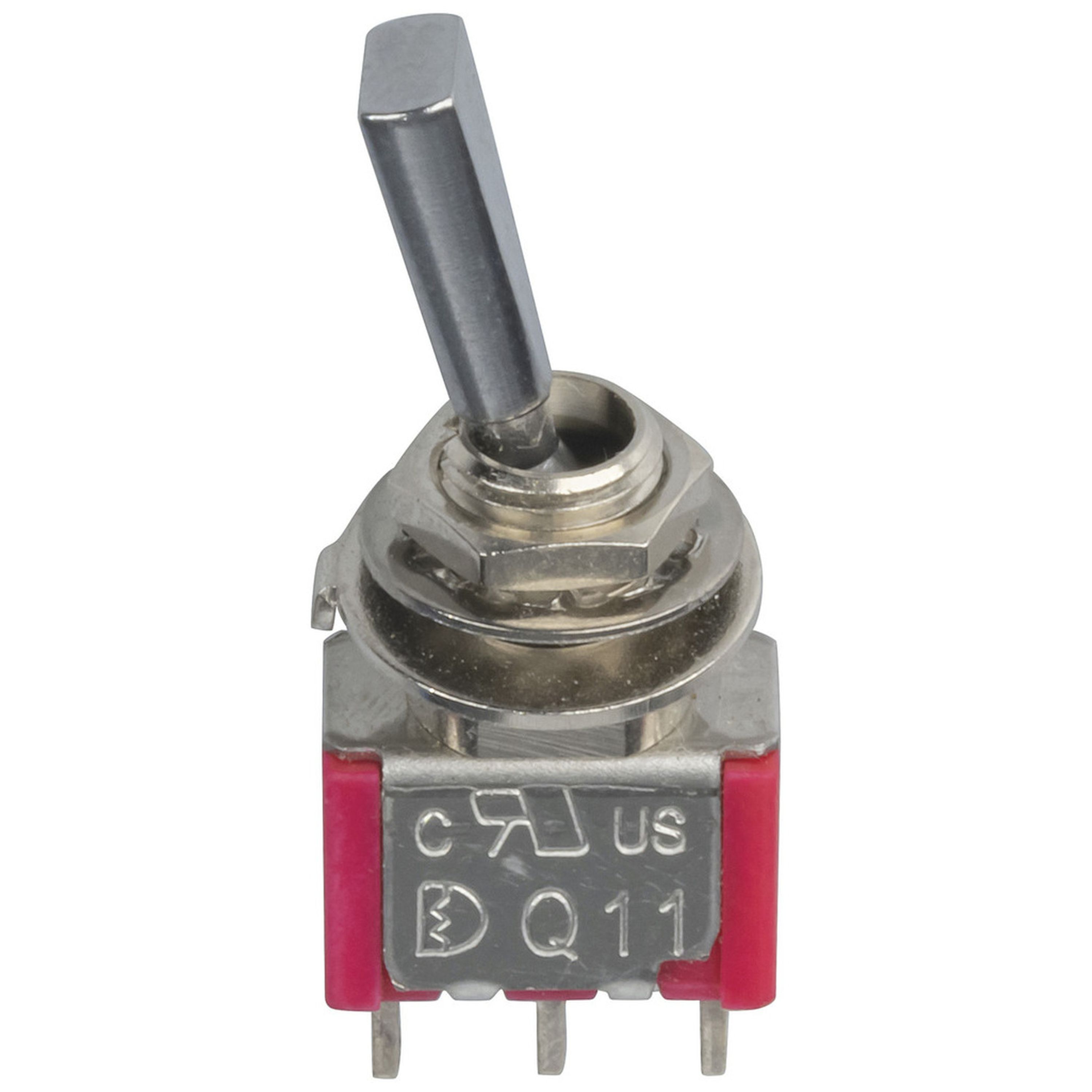

SPDT Flattened Actuator Mini Toggle Switch
- Cat No:
- ST0546
Sold as:1 Each
Out of Stock$5.50
Description
SPDT miniature flattened actuator.
Specifications
- Switch Type
- Toggle
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 2.0 pos
- Switch Function
- ON-ON
- Contact Resistance
- 10mΩ
- Insulation Resistance
- 1000MΩ
- Dielectric Strength
- 1000V
- Mechanism Material
- Brass/Stainless
- DC Voltage Rating
- 28.0V
- DC Current Rating
- 5.0A
- Cycle Life
- 40000.0
- Actuator Length
- 11.43mm
- Actuator Width
- 2.54mm
- Switch Type
- Toggle
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0pos
- Cycle Life
- 40000.0 cycles
- Contact Resistance
- 10.0Ω
- Insulation Resistance
- 1000.0MΩ
- Dielectric Strength
- 1000.0V
- Actuator Length
- 12.0mm
- Actuator Width
- 7.0mm
- AC Voltage rating
- 250.0V
- AC current rating
- 2.0A
- DC Voltage
- 28.0V
- DC current rating
- 2.0A
- Packaged Dimensions
- 3.5cm(Length) x 2.0cm(Width) x 1.5cm(Height)
