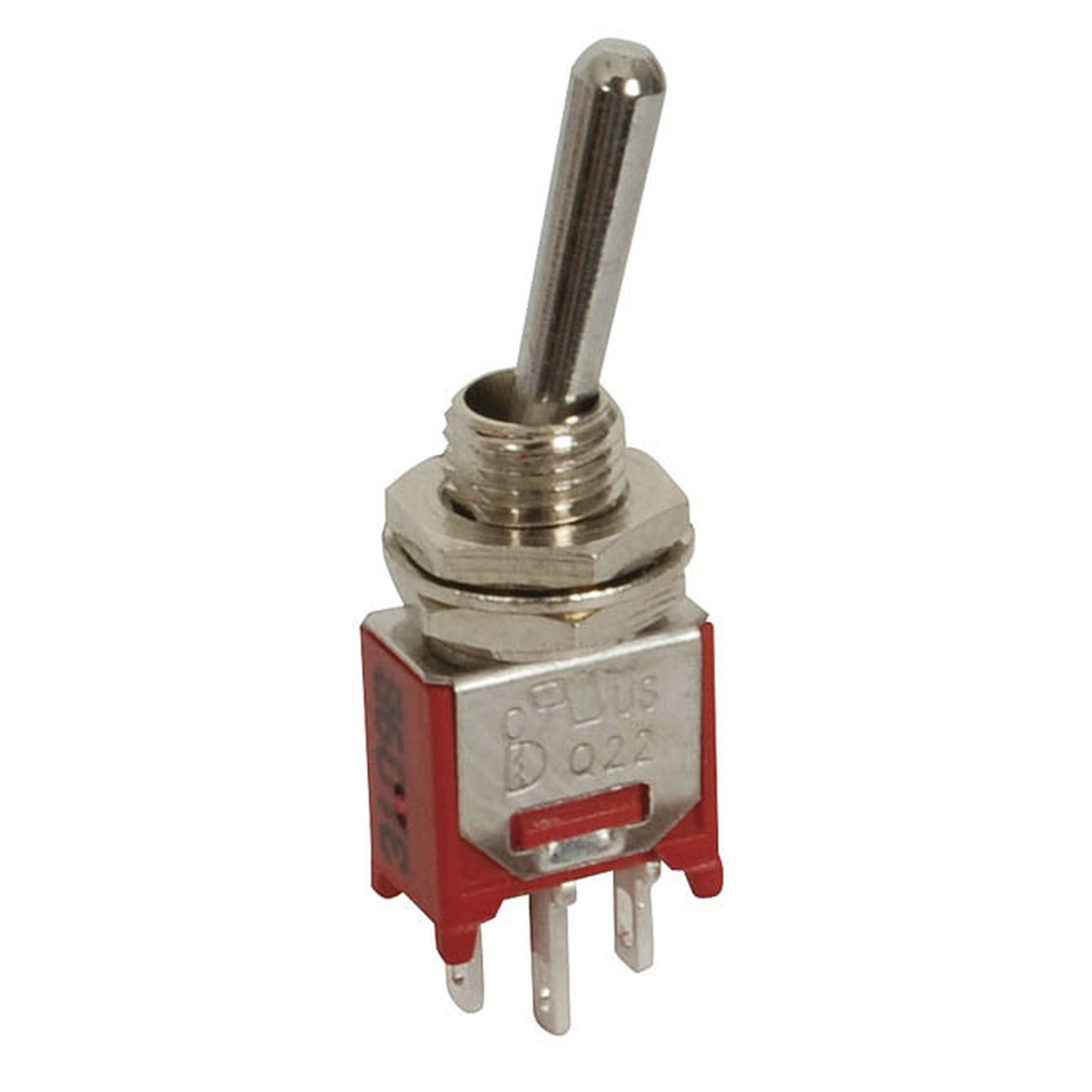

SPDT Sub-Miniature Toggle Switch - Solder Tag
- Cat No:
- ST0300
Sold as:1 Each
In Stock$2.95
Description
FEATURES:
SOLDER TAG - THREADED BUSH
Brackets indicate switch position(on - on)
OPERATING TEMPERATURE: -30 degrees - +85° Celsius
CONTACT RATING (with resistive load) Subminiature: 1 Amp @ 250VAC Miniature: 2 Amps @ 250VAC
CONTACT RATING (with resistive load) Subminiature: 3 Amps @ 28VDC Miniature: 5 Amps @ 28VDC
SWITCH MATERIALS CASE: Diallyl Phthalate (DAP) (UL94V-0)
TOGGLE HANDLE: Brass, chrome plated
BUSHING: Brass, nickel-plated
HOUSING: Stainless Steel
TERMINALS: Switch support components: Brass, electro-tin plated (for solderability)
CONTACTS: Fixed and moving, Silver-plated over copper alloy (standard);Fixed and moving, gold plated over nickel-plated alloy.
Specifications
- Switch Type
- Toggle
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 2.0 pos
- Switch Function
- ON-ON
- Contact Resistance
- 10mΩ
- Insulation Resistance
- 1000MΩ
- Dielectric Strength
- 1000V
- Mechanism Material
- Brass/Stainless
- DC Voltage Rating
- 28.0V
- DC Current Rating
- 3.0A
- Cycle Life
- 40000.0
- Actuator Length
- 10.41mm
- Actuator Width
- 2.54mm
- Switch Type
- Toggle
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0pos
- Switch Connection
- Solder Tags
- Cycle Life
- 30000.0 cycles
- Contact Resistance
- 20.0MΩ
- Insulation Resistance
- 1000.0MΩ
- Dielectric Strength
- 1000.0V
- Actuator Length
- 8.13mm
- Actuator Width
- 6.0mm
- AC Voltage rating
- 250.0V
- AC current rating
- 1.0A
- DC Voltage
- 28.0V
- DC current rating
- 3.0A
- Packaged Dimensions
- 2.5cm(Length) x 0.8cm(Width) x 0.5cm(Height)
