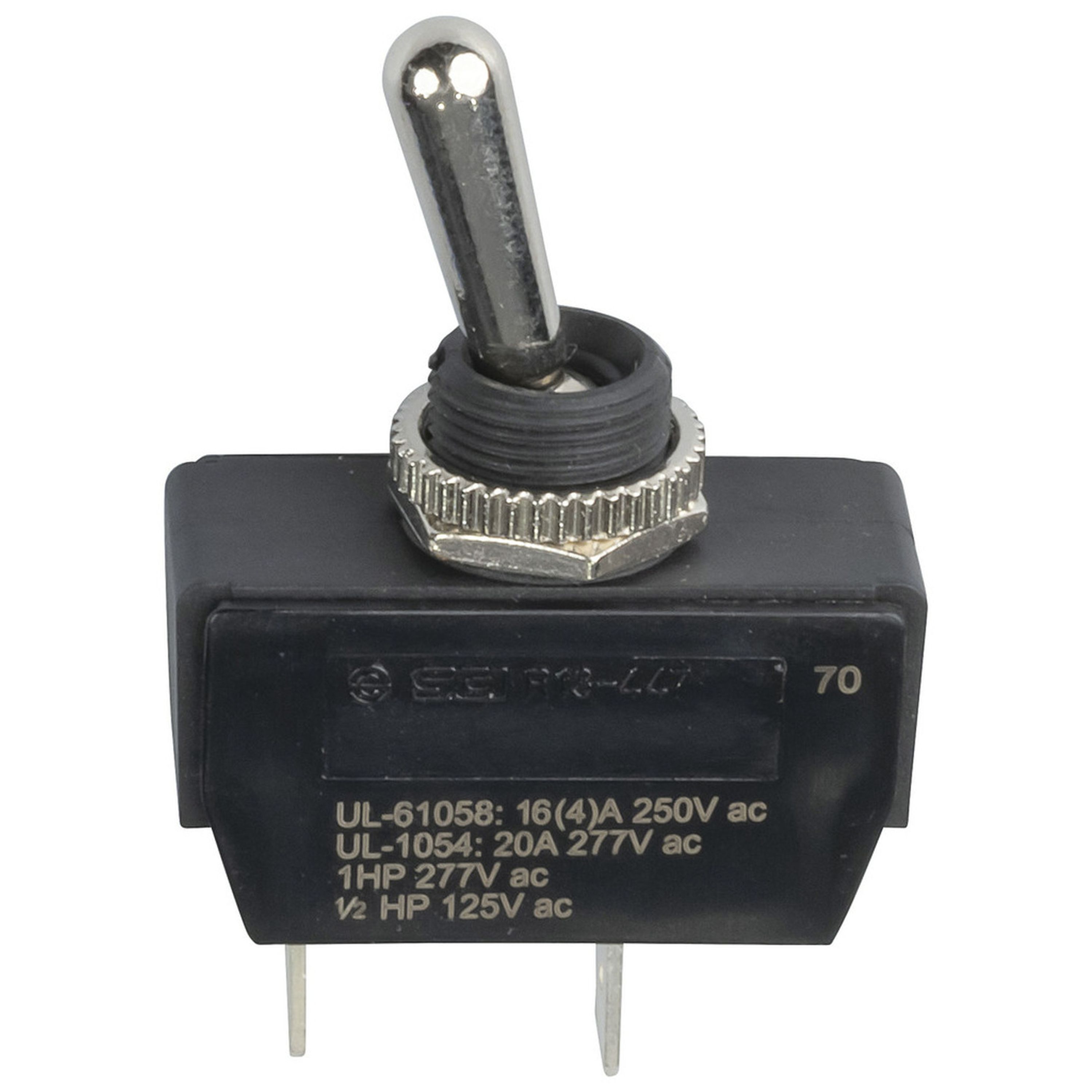

SPST IP56 Heavy Duty Toggle Switch
- Cat No:
- ST0581
Sold as:1 Each
In Stock$6.95
Description
SPST heavy duty toggle switch.
Specifications
- Switch Type
- Toggle
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 2.0 pos
- Switch Function
- ON-OFF
- Contact Resistance
- 50mΩ
- Insulation Resistance
- 100MΩ
- Dielectric Strength
- 1500V
- Mechanism Material
- Metal/Plastic
- DC Voltage Rating
- 12.0V
- DC Current Rating
- 15.0A
- Cycle Life
- 10000.0
- Actuator Length
- 17.5mm
- Actuator Width
- 6.0mm
- Switch Type
- Toggle
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0pos
- Actuator Length
- 21.5mm
- Actuator Width
- 34.0mm
- AC Voltage rating
- 240.0V
- AC current rating
- 20.0A
- Packaged Dimensions
- 5.5cm(Length) x 3.0cm(Width) x 1.5cm(Height)
