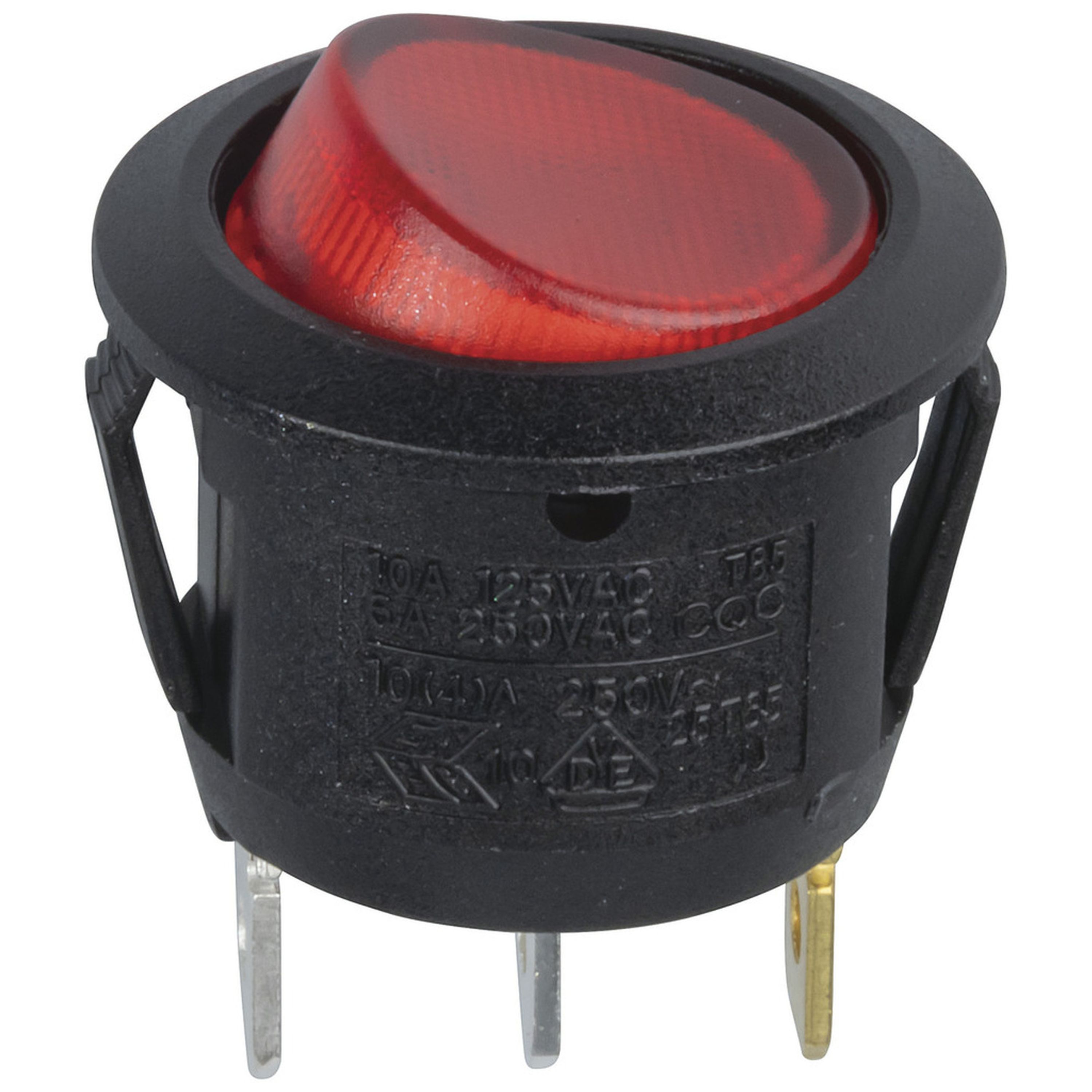

SPST Round Red Illuminated Actuator Rocker Switch
- Cat No:
- SK0962
Sold as:1 Each
In Stock$2.95
Description
Features:
- Snap fits into a 20mm round hole
- Mounting hole 20mm
- 6A @ 250VAC
- Black body with red neon actuator
- Q.C. tab termination
Specifications
- Switch Type
- Rocker
- Switch Function
- Locking On/Off
- Mechanism Material
- Plastic
- Switch Connection
- Spade Terminals
- Switch Colour Coded
- Red
- AC Voltage Rating
- 250V
- Nominal Voltage
- 240V
- Illumination Colour
- Red
- LED Connection
- Hard Wired
- LED Type
- Neon
- Illumination Position
- Actuator
- AC Current Rating
- 10A
- Height
- 29.3mm
- Diameter
- 23.0mm
- Switch Type
- Rocker
- Pole Throw Type
- SPST
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0pos
- Switch Function
- Locking On/Off
- Switch Connection
- Spade Terminals
- Switch Colour Coded
- Black
- Mechanism Material
- Phenolic
- AC Voltage rating
- 250.0V
- AC current rating
- 6.0A
- Nominal Voltage
- 250.0V-250.0V
- Type
- Neon
- Illumination Colour
- Red
- Connection
- Spade Terminals
- Illumination Position
- Top
- Packaged Dimensions
- 2.1cm(Length) x 2.1cm(Width) x 2.3cm(Height)
