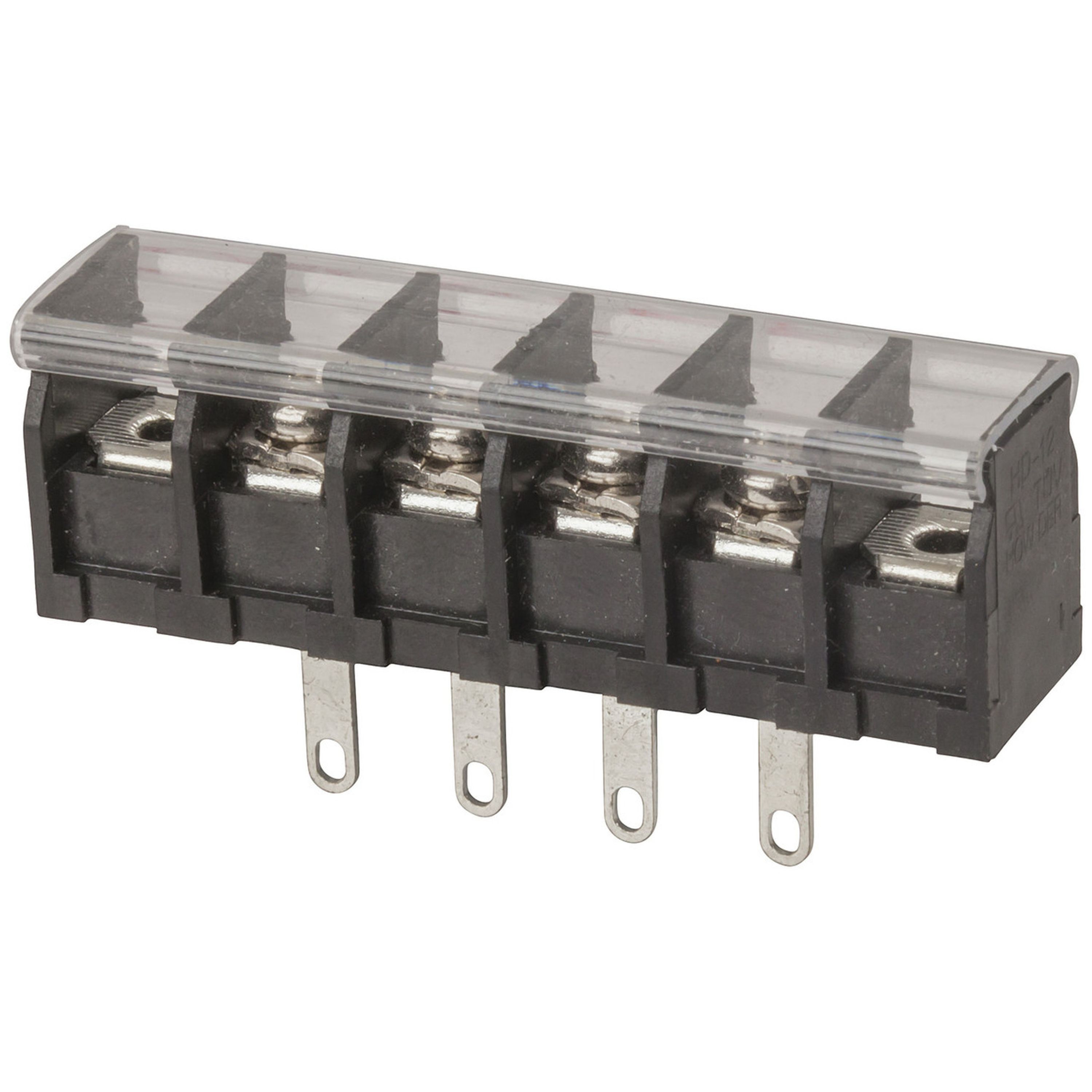

Terminal Barrier Panel with Clear Cover 4 Way
- Cat No:
- HM3166
Sold as:1 Each
Out of Stock$4.95
Description
Barrier Material: Thermoplastic (UL=94V-0), Black
Terminals: Tint Plated Brass (Standard)
Screws: Nickel Plated Steel
Wire Range AWG: 12-22 STR
Cover Material: PC
Insulation withstands voltage AC 2000V/Min
Pole HD-12-? P HD-12-? PH
A (Px9.5)+1.4 (P+2)*9.5+1.4
B (P-1)*9.5 (P+1)*9.5
Terminals: Tint Plated Brass (Standard)
Screws: Nickel Plated Steel
Wire Range AWG: 12-22 STR
Cover Material: PC
Insulation withstands voltage AC 2000V/Min
Pole HD-12-? P HD-12-? PH
A (Px9.5)+1.4 (P+2)*9.5+1.4
B (P-1)*9.5 (P+1)*9.5
Specifications
- Type
- Screw Terminal
- Device
- Terminal
- Attachment Method
- Solder Tag
- Number of Contacts
- 4.0pc
- Terminal Spacing
- 9.5mm
- Insulation Dielectric Voltage Rating
- 2.0V
- Insulation Resistance
- 500.0MΩ
- AC current rating
- 25.0A
- Type
- Terminal Strip
- Device
- Panel Barrier
- Length
- 60mm
- Number of Contacts
- 4.0
- Packaged Dimensions
- 5.8cm(Length) x 1.5cm(Width) x 3.0cm(Height)
