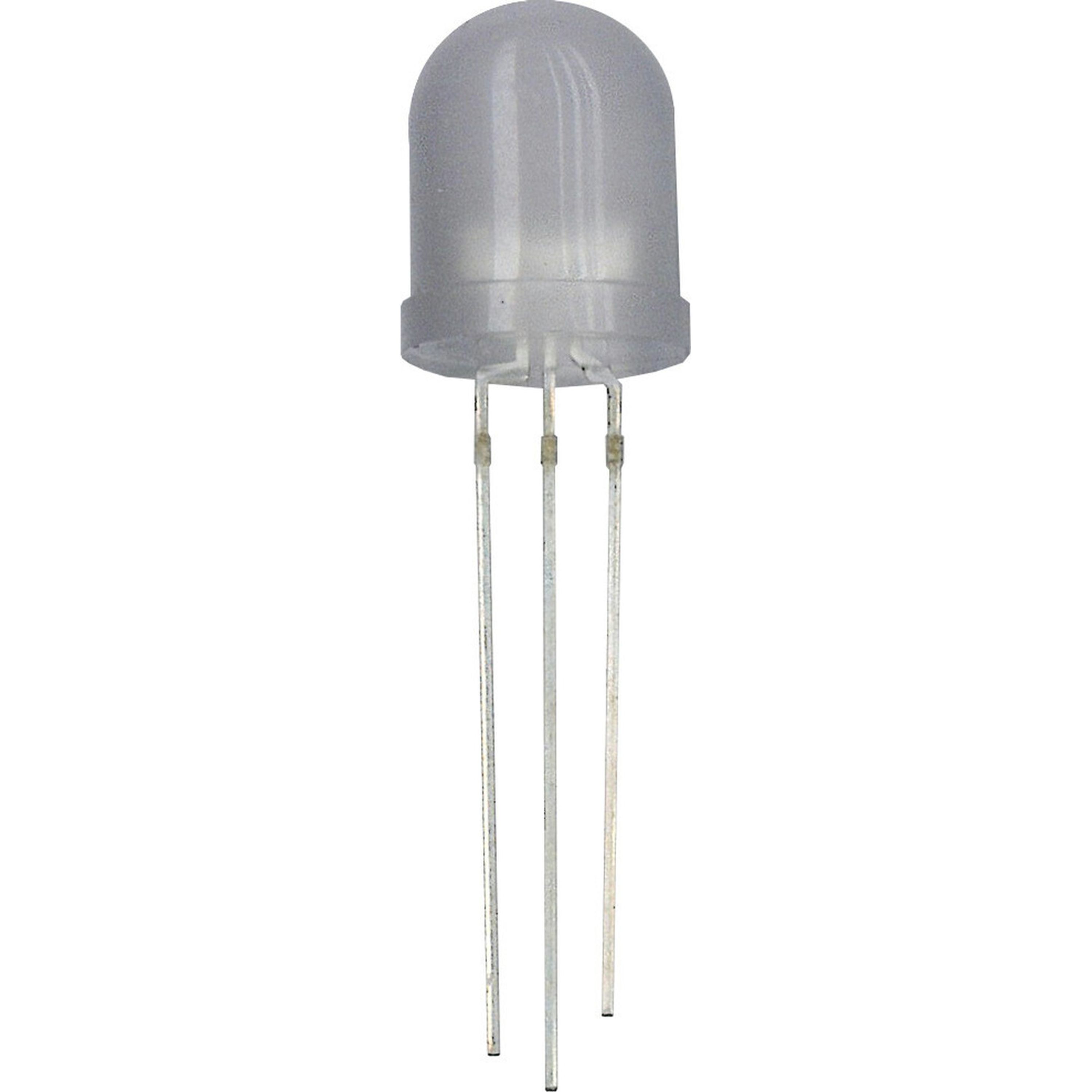

Tricolour Red/Green/Orange 10mm LED 10mcd Round Diffused
- Cat No:
- ZD0256
In Stock
$0.95
Description
Specifications
• Colour: Red/Green with common cathode. Activate both colours to achieve orange
• Size: 10mm
• Lens: Diffused
• Viewing Angle: 75 degrees
• Wavelength: Red 625nm Green 570nm
• Typical Forward Current: 20mA
• Typical Forward Voltage: 2.0V
• Luminous Intensity: 10mcd
• Continuous Maximum Current: 30mA
Resistor for 5VDC : 91.0Ω
Resistor for 9VDC : 300.0Ω
Resistor for 12VDC : 470.0Ω
Active Component Details
active mount type : Through Hole
active connector type : Solder Legs
component package : radial
active number of legs : 3.0Count
LED Section Details
Colour Section : Red
Wavelength : 625.0nm
LED Section Details
Colour Section : Green
Wavelength : 570.0nm
Specifications
- LED Type
- 10mm Standard LED
- Illumination Type
- Tri Colour,Common Cathode
- Light Colour
- Red,Green,Orange
- Light Wavelength
- 570.0nm,625.0nm
- Lens Type
- Diffused
- Intensity
- 10.0mcd
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 2.0V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- Resistor for 5VDC
- 91.0Ω
- Resistor for 9VDC
- 300.0Ω
- Resistor for 12VDC
- 470.0Ω
- active mount type
- Through Hole
- active connector type
- Solder Legs
- component package
- radial
- active number of legs
- 3.0 count
- Colour Section
- Green
- Wavelength
- 570.0nm
- Packaged Dimensions
- 1.2cm(Length) x 1.2cm(Width) x 4.5cm(Height)
