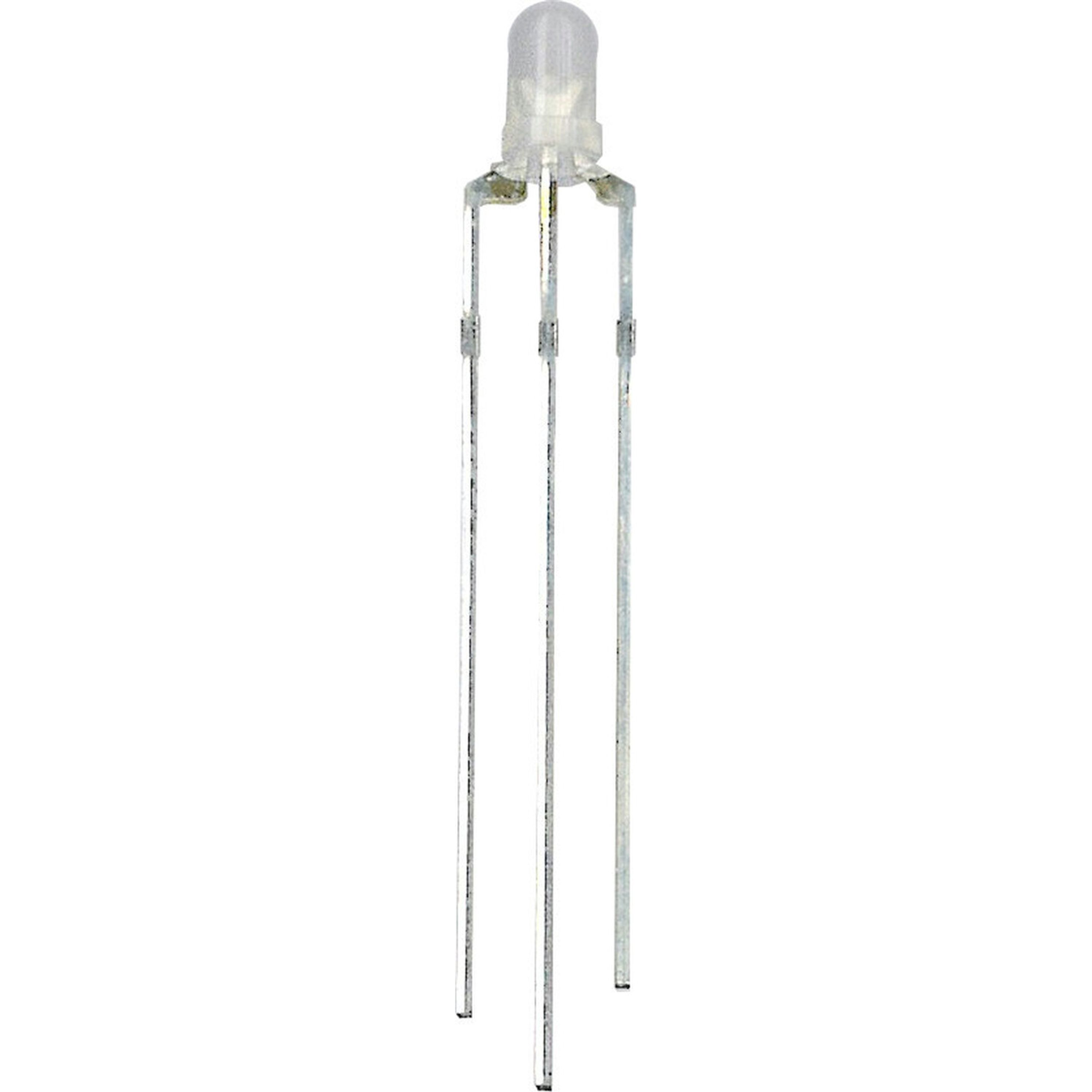

Tricolour Red/Green/Orange 3mm LED 4.5/6mcd Round Diffused
- Cat No:
- ZD0249
Sold as:1 Each
In Stock$0.85
Description
Specifications
• Colour: Red/Green with common cathode. Activate both colours to achieve orange
• Size: 3mm
• Lens: Diffused
• Viewing Angle: 75 degrees
• Wavelength: Red 625nm Green 570nm
• Typical Forward Current:20mA
• Typical Forward Voltage:2.0V
• Luminous Intensity: 4.5 - 6.0 mcd
• Continuous Maximum Current: 30mA
Specifications
- LED Type
- 3mm Standard LED
- Illumination Type
- Tri Colour,Common Cathode
- Light Colour
- Red,Green,Orange
- Light Wavelength
- 570.0nm,625.0nm
- Lens Type
- Diffused
- Viewing Angle
- 75.0°
- Intensity
- 4.5mcd,6.0mcd
- V<sub>f (typ)</sub> - Typical Forward Voltage
- 2.0V
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 30.0mA
- Resistor for 5VDC
- 150.0Ω
- Resistor for 9VDC
- 360.0Ω
- Resistor for 12VDC
- 510.0Ω
- active mount type
- Through Hole
- active connector type
- Solder Legs
- component package
- radial
- active number of legs
- 3.0 count
- Colour Section
- Green
- Wavelength
- 570.0nm
- Intensity
- 6.0mcd
- Packaged Dimensions
- 3.5cm(Length) x 0.5cm(Width) x 0.4cm(Height)
