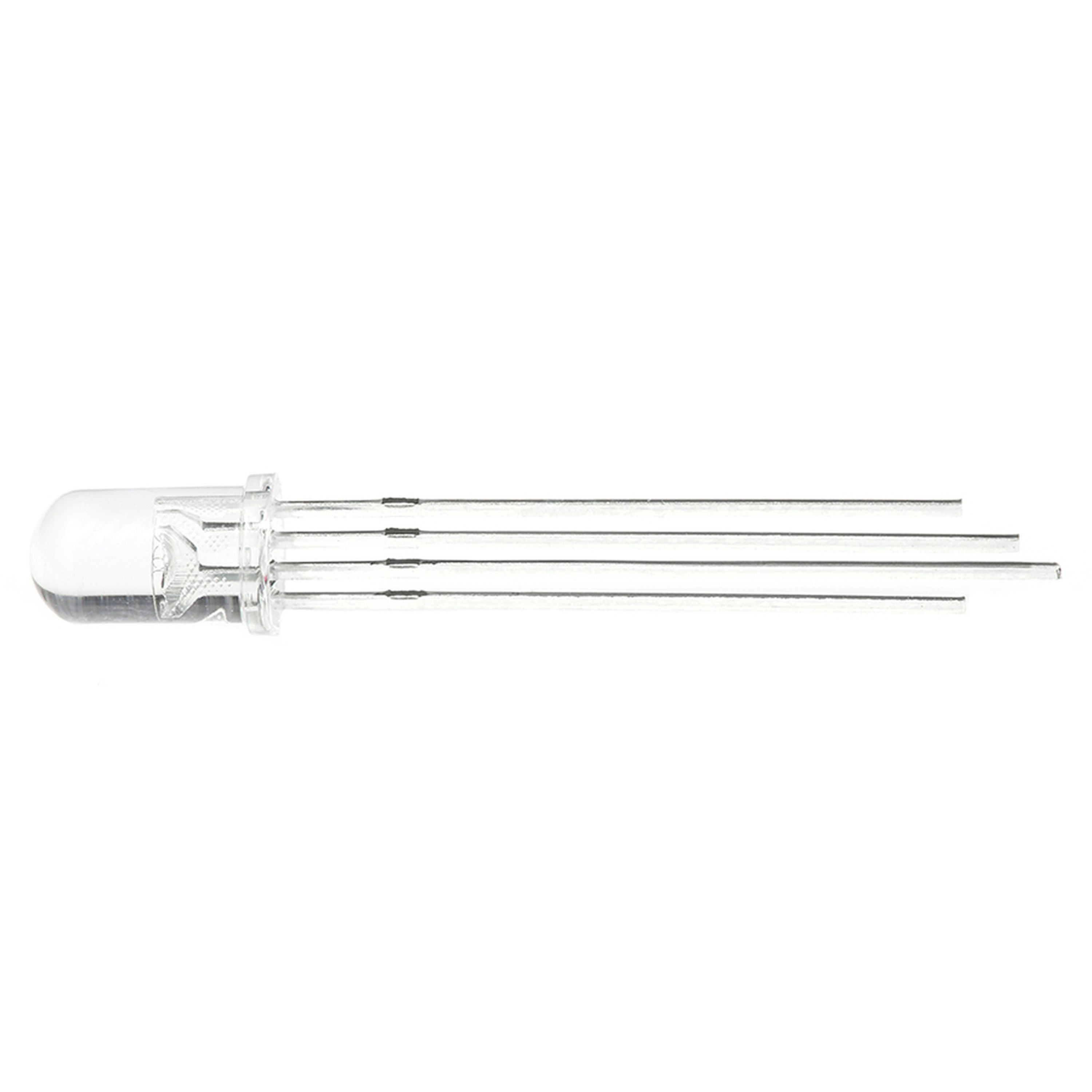

Tricolour RGB 5mm LED 600-1000mcd Round Diffused
- Cat No:
- ZD0270
Sold as:1 Each
Out of Stock$2.75
Description
Red, Green, Blue tri-colour LED with common cathode to allow simultaneous use of all three elements. Illuminate the elements to different levels and you can acheive almost any colour.
Specifications:
• Colour: Red, Green, and Blue with common cathode
• Size: 5mm
• Lens: Diffused
• Viewing Angle: 45 degrees
• Wavelength: Red 625nm, Green 520nm, Blue 470nm
• Typical Forward Current: 20mA
• Typical Forward Voltage: Red 2.0V, Green/Blue 3.5V
• Luminous Intensity: Red 600mcd, Green 1000mcd, Blue 200mcd
• Continuous Maximum Current: 30mA
Specifications
- LED Type
- 5mm Standard LED
- Illumination Type
- Tri Colour,Common Cathode
- Light Colour
- Red,Green,Blue
- Lens Type
- Diffused
- Light Wavelength
- 470.0nm,625.0nm
- I<sub>f (typ)</sub> - Typical Forward Current
- 20.0mA
- I<sub>f (max)</sub> - Maximum Forward Current
- 30.0mA
- Intensity
- 200.0mcd,1000.0mcd
- Viewing Angle
- 45.0°
- active mount type
- Through Hole
- active connector type
- Solder Legs
- component package
- radial
- active number of legs
- 4.0 count
- Colour Section
- Green
- Wavelength
- 520.0nm
- Typical Voltage
- 3.5V
- Intensity
- 1000.0mcd
- Resistor at 5V Supply
- 75.0Ω
- Resistor at 9V Supply
- 270.0Ω
- Resistor at 12V Supply
- 430.0Ω
- Packaged Dimensions
- 3.5cm(Length) x 0.5cm(Width) x 0.5cm(Height)
