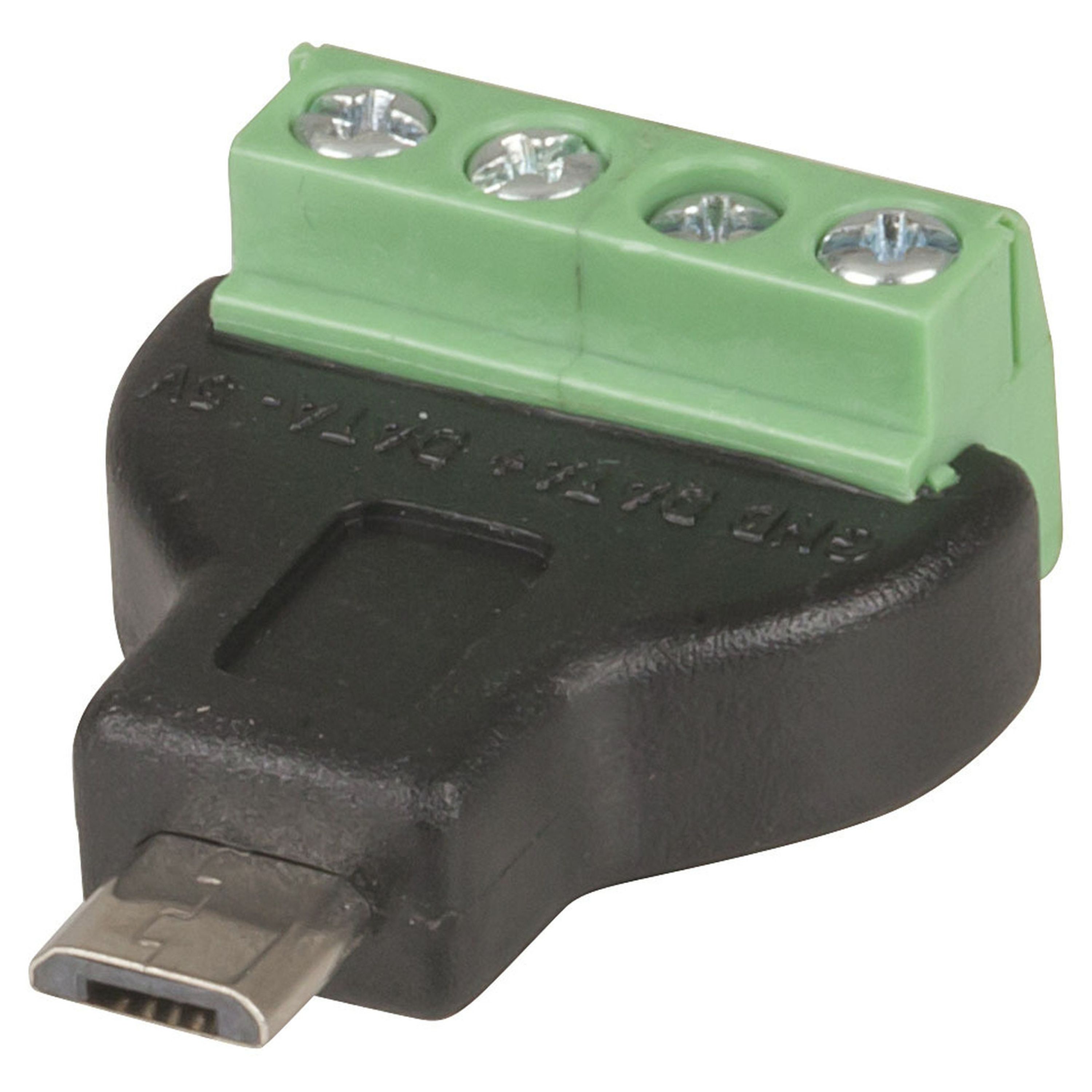

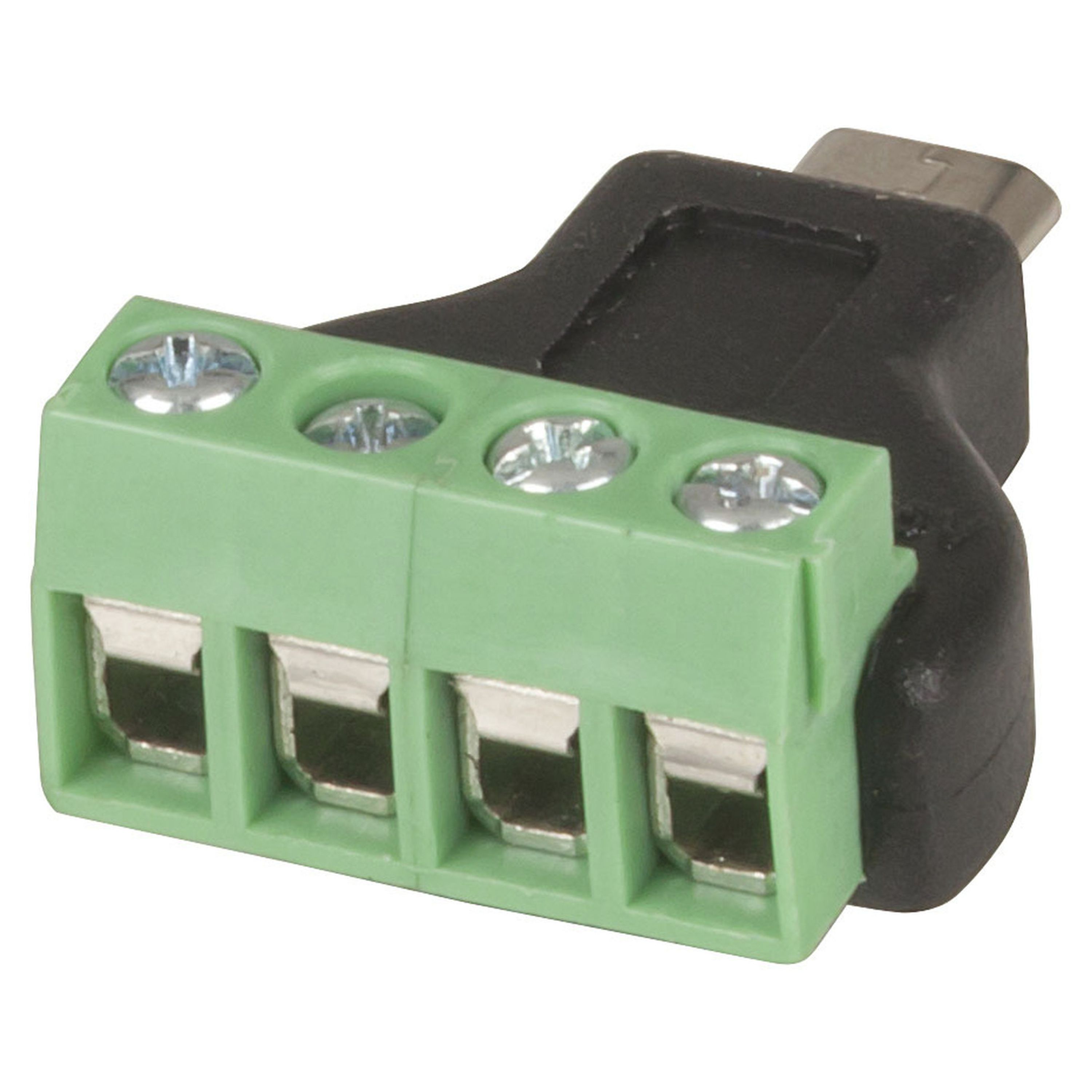

USB 2.0 Micro B Plug to 4-Way Screw Terminal Header Adaptor
- Cat No:
- PA0952
Sold as:1 Each
In Stock$10.25
Description
USB Micro B plug to a 4-way screw terminal block for temporary or prototyping applications. No soldering required.
• Insulation Resistance: 100MΩ @ 500VDC min
• Insulation Resistance: 100MΩ @ 500VDC min
Specifications
- Plug or Socket Type
- USB Micro Type B
- Device
- Plug
- Attachment Method
- Screw
- Contacts / Pins
- 4.0pc
- Insulation resistance
- 100.0MΩ
- Contact resistance
- 30.0mΩ,30.0mΩ
- DC Voltage
- 5.0V
- DC current rating
- 1.5A
- Length
- 30.0mm
- Width
- 25.0mm
- Height
- 12.0mm
- Weight
- 5.0g
- Packaged Dimensions
- 3.0cm(Length) x 2.5cm(Width) x 1.2cm(Height)
