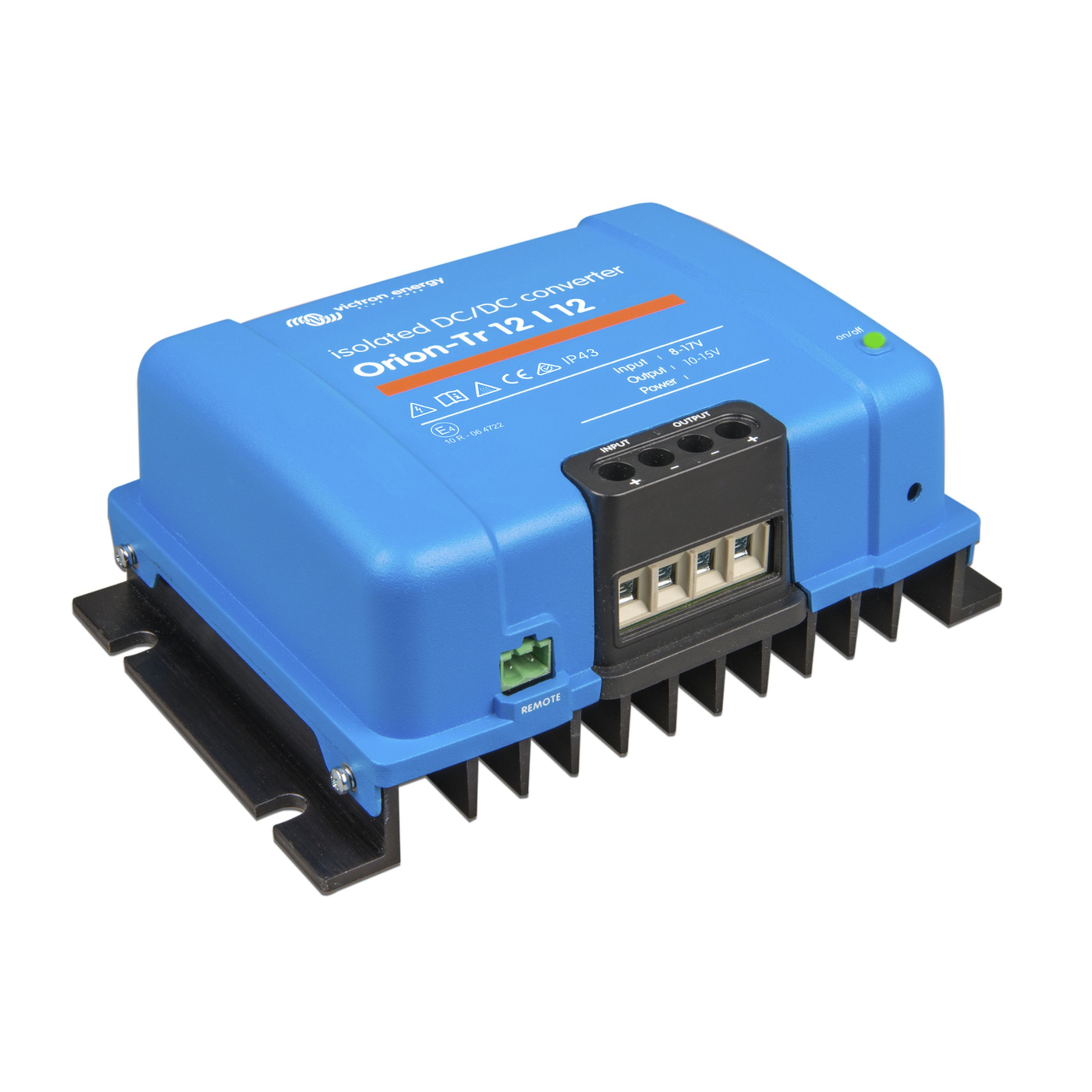

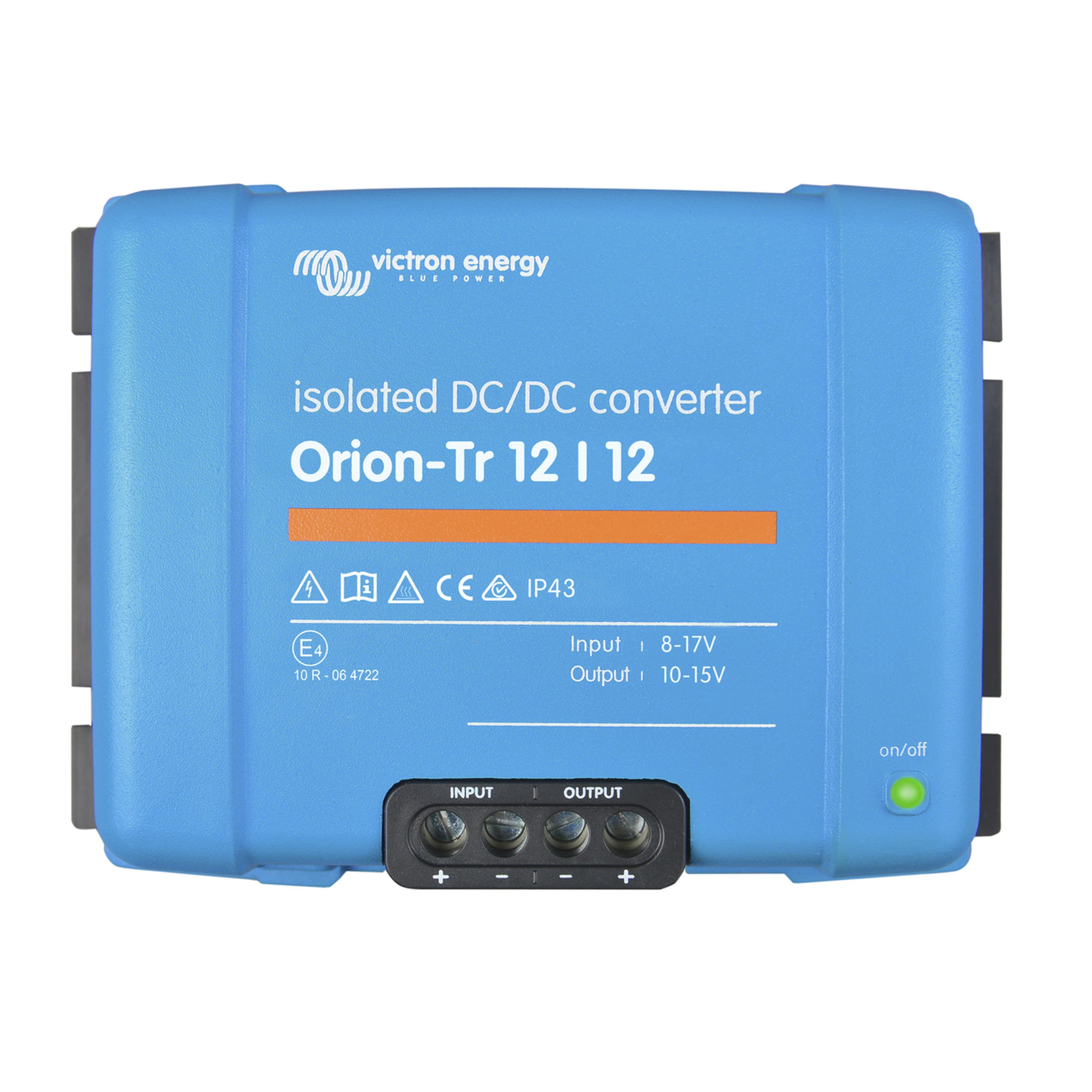

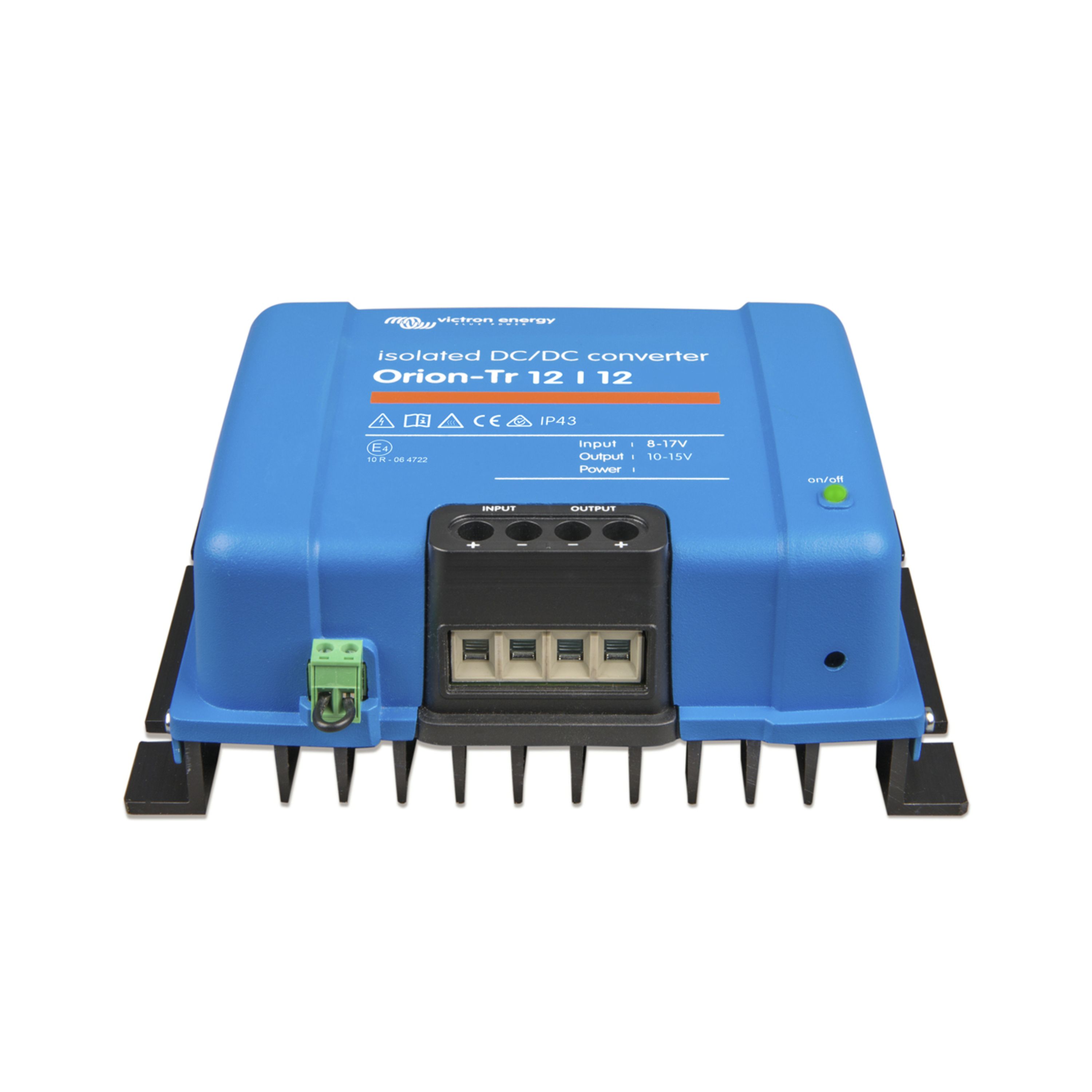

Victron Orion-Tr 12/12-18A (220W) Isolated DC-DC converter ORI121222110

Introducing the Victron Energy Orion-Tr DC-DC Converters, the perfect solution for all your isolated power needs. With a wide input voltage range and high efficiency, these converters are ideal for a variety of applications, from automotive to marine to off-grid power systems.

With a compact and lightweight design, the Orion-Tr DC-DC Converters are easy to install and can be mounted in any orientation. They feature galvanic isolation to protect your sensitive electronics and ensure a stable power supply. Plus, with an adjustable output voltage and current limiting capabilities, you can customise the output to meet your specific requirements.

Whether you need to power your navigation system on a boat or run lights and appliances in an off-grid cabin, the Victron Energy Orion-Tr DC-DC Converters are the most reliable and efficient choice. Order yours today and experience the difference in power and performance!

FEATURES:
• 3-stage charge algorithm
• Suits 12V Lead-acid or Lithium batteries
• Supports regular & smart ECU controlled alternators
• Bluetooth® enabled
• Remote on-off capability

SPECIFICATIONS
Input Voltage: 10-17VDC
Under Voltage Shutdown: 7V
Under Voltage Restart: 7.5V
Output Voltage: 12.2V (nominal), 10 to 15V (Adjustable)
Output Current: Up to 18A (nominal), 25A (10s)
Short Circuit Output Current: 40A
Efficiency: 87%
No Load Input Current: <80mA
Standby Current: <1mA
Screw Terminals: 16mm2 (AWG6)
